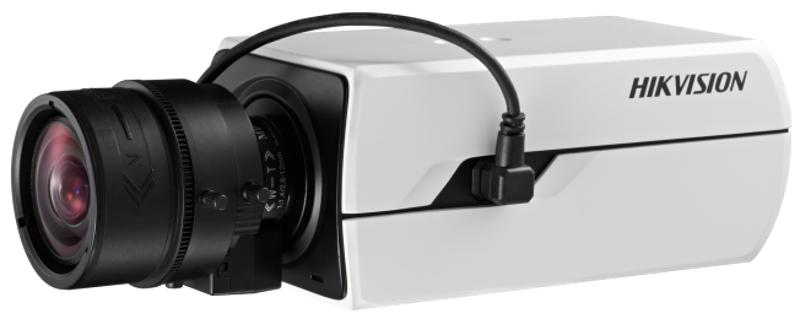

2MP DarkFighter Lite Box Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging even against strong back light thanks to 120 dB true WDR technology
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD4026FWD-A/P
DS-2CD4026FWD-A/P
DS-2CD4026FWD-A(P)(/P)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1 s – 1/100,000 s, supports slow shutter
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Day & NightIR cut filter with auto switch
  • Auto-IrisDC drive
  • Lens MountC/CS mount
  • Focussupports auto back focus (ABF)
  • Audio
  • Environment Noise FilteringSupport
  • Audio I/OSupport
  • Sampling Rate16kHz/32kHz/44.1kHz/48 kHz
  • Image
  • Image EnhancementBLC /3D DNR/Defog/EIS
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingSupport
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Main Stream Max. Frame Rate50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream Max. Frame Rate50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • ROI (Region of Interest)Support 4 fixed region for each stream, and dynamic tracking
  • Third Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Network
  • Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm TriggerRoad traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
  • Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port, 1 RS-485 interface, 1 RS-232 interface
  • Audio1-ch 3.5mm audio input(line in/mic in), 1-ch 3.5mm audio output 1 build-in microphone(can be turned off)
  • Alarm1 input, 1 output
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
  • Reset ButtonYes
  • Compression Standard
  • H.264 Compression TypeBaseline Profile/Main Profile/High Profile
  • H.264+Support
  • Video CompressionMain stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
  • Video Bitrate32 Kbps – 16 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2
  • Audio Bitrate64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
  • General
  • Power Supply12 VDC, 24 VAC, PoE (802.3af, class 4) Terminal block
  • DimensionsCamera: 69.8 × 58 × 145 mm (2.75″ × 2.28″ × 5.71″) Package: 315 × 140 ×140 mm (12.4″ × 5.51″ × 5.51″)
  • Weight835 g (1.84 lb.)
  • Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Consumption12 VDC/24 VAC, max. 12 W PoE (802.3af), 12 W
  • Ingress Protection levelIP5X
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8'' Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter Speed
1 s – 1/100,000 s, supports slow shutter
Digital Noise Reduction
3D DNR
WDR
120dB
Day & Night
IR cut filter with auto switch
Auto-Iris
DC drive
Lens Mount
C/CS mount
Focus
supports auto back focus (ABF)
Audio
Environment Noise Filtering
Support
Audio I/O
Support
Sampling Rate
16kHz/32kHz/44.1kHz/48 kHz
Image Enhancement
BLC /3D DNR/Defog/EIS
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping
Support
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Main Stream Max. Frame Rate
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream Max. Frame Rate
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
ROI (Region of Interest)
Support 4 fixed region for each stream, and dynamic tracking
Third Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Max. Resolution
1920 × 1080
Network
Network Storage
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Protocol
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interface
Communication Interface
1 RJ45 10M/100M Ethernet port, 1 RS-485 interface, 1 RS-232 interface
Audio
1-ch 3.5mm audio input(line in/mic in), 1-ch 3.5mm audio output 1 build-in microphone(can be turned off)
Alarm
1 input, 1 output
Video Output
1Vp-p composite output (75 Ω/BNC)
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 G
Reset Button
Yes
Compression Standard
H.264 Compression Type
Baseline Profile/Main Profile/High Profile
H.264+
Support
Video Compression
Main stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
Video Bitrate
32 Kbps – 16 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2
Audio Bitrate
64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
General
Power Supply
12 VDC, 24 VAC, PoE (802.3af, class 4) Terminal block
Dimensions
Camera: 69.8 × 58 × 145 mm (2.75″ × 2.28″ × 5.71″) Package: 315 × 140 ×140 mm (12.4″ × 5.51″ × 5.51″)
Weight
835 g (1.84 lb.)
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Consumption
12 VDC/24 VAC, max. 12 W PoE (802.3af), 12 W
Ingress Protection level
IP5X
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1 s – 1/100,000 s, supports slow shutter
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Day & NightIR cut filter with auto switch
  • Auto-IrisDC drive
  • Lens MountC/CS mount
  • Focussupports auto back focus (ABF)
Audio
  • Environment Noise FilteringSupport
  • Audio I/OSupport
  • Sampling Rate16kHz/32kHz/44.1kHz/48 kHz
  • Image EnhancementBLC /3D DNR/Defog/EIS
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingSupport
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Main Stream Max. Frame Rate50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream Max. Frame Rate50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • ROI (Region of Interest)Support 4 fixed region for each stream, and dynamic tracking
  • Third Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
Network
  • Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm TriggerRoad traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port, 1 RS-485 interface, 1 RS-232 interface
  • Audio1-ch 3.5mm audio input(line in/mic in), 1-ch 3.5mm audio output 1 build-in microphone(can be turned off)
  • Alarm1 input, 1 output
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
  • Reset ButtonYes
Compression Standard
  • H.264 Compression TypeBaseline Profile/Main Profile/High Profile
  • H.264+Support
  • Video CompressionMain stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
  • Video Bitrate32 Kbps – 16 Mbps
  • Audio CompressionG.711/G.722.1/G.726/MP2L2
  • Audio Bitrate64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
General
  • Power Supply12 VDC, 24 VAC, PoE (802.3af, class 4) Terminal block
  • DimensionsCamera: 69.8 × 58 × 145 mm (2.75″ × 2.28″ × 5.71″) Package: 315 × 140 ×140 mm (12.4″ × 5.51″ × 5.51″)
  • Weight835 g (1.84 lb.)
  • Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Consumption12 VDC/24 VAC, max. 12 W PoE (802.3af), 12 W
  • Ingress Protection levelIP5X
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
