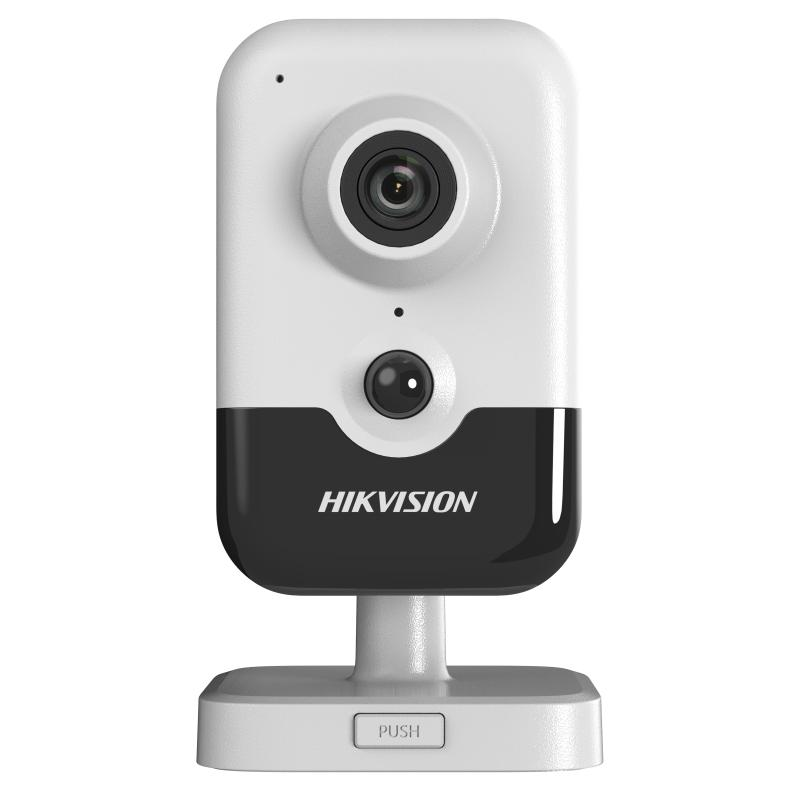

8 MP AcuSense Built-in Mic Fixed Cube Network Camera

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle classification based on deep learning
  • Provide real-time security via built-in two-way audio
  • Detect human body through passive infrared which is sensitive to body temperature (PIR)
View Less
View more

Available models:

DS-2CD2483G2-I(2.8mm)
DS-2CD2483G2-I(4mm)
Specification
  • Camera
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120 dB
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focal Length & FOV 2.8 mm, horizontal FOV 107.8°, vertical FOV 57.9°, diagonal FOV 126.7° 4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98°
  • Aperture F2.0
  • Lens Mount M12
  • DORI
  • DORI 2.8 mm: D: 85.5 m, O: 33.9 m, R: 17.1 m, I: 8.6 m 4 mm: D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11.0 m
  • Illuminator
  • IR Range Up to 10 m
  • Wavelength 850 nm
  • Smart Supplement Light Yes
  • Video
  • Max. Resolution 3840 × 2160
  • Main Stream 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
