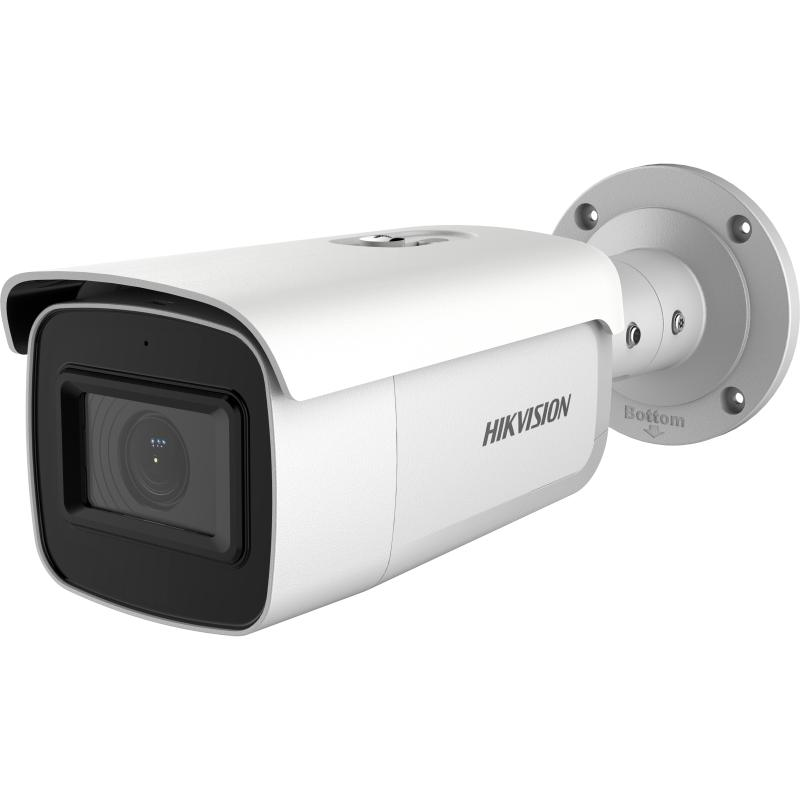

4 MP Outdoor WDR Motorized Varifocal Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials

View Less
View more
DS-2CD2643G1-IZSEOL
DS-2CD2643G1-IZEOL
Data Sheet
Sales Inquiry

Available models:

DS-2CD2643G1-IZS(2.8-12mm)

Available models:

DS-2CD2643G1-IZ(2.8-12mm)
DS-2CD2643G1-IZ(S)
Data Sheet

Specification

  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focus Auto
  • Lens Type 2.8 to 12 mm，Motorized
  • FOV horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
  • Aperture F1.6
  • Lens Mount Φ14
  • Aperture Type Fixed
  • Illuminator
  • IR Range Up to 50 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in (-S)
  • Target Cropping No
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, face detection
  • Face Detection Yes
  • Interface
  • Audio -S: 1 input (line in/mic.in), 1 output (line out), mono sound, terminal block
  • Alarm -S: 1 input;1 output (max. 12 VDC, 30 mA), terminal block
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Video Output 1 Vp-p composite output(75Ω) (For adjustment only)
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
  • Power Consumption and Current 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
  • Camera Dimension Φ 105.1 × 297.5 mm (Φ 4.1" × 11.7")
  • Camera Weight Camera: Approx. 1285 g (2.8 lb.),With Package: Approx. 1964 g (4.3 lb.)
  • Approval
  • Protection IP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Auto
Lens Type
2.8 to 12 mm，Motorized
FOV
horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
Aperture
F1.6
Lens Mount
Φ14
Aperture Type
Fixed
Illuminator
IR Range
Up to 50 m
Wavelength
850nm
Video
Max. Resolution
2688 × 1520
Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by alarm in (-S)
Target Cropping
No
DNR
3D DNR
Image Enhancement
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, face detection
Face Detection
Yes
Interface
Audio
-S: 1 input (line in/mic.in), 1 output (line out), mono sound, terminal block
Alarm
-S: 1 input;1 output (max. 12 VDC, 30 mA), terminal block
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Video Output
1 Vp-p composite output(75Ω) (For adjustment only)
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
Power Consumption and Current
12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
Camera Dimension
Φ 105.1 × 297.5 mm (Φ 4.1" × 11.7")
Camera Weight
Camera: Approx. 1285 g (2.8 lb.),With Package: Approx. 1964 g (4.3 lb.)
Approval
Protection
IP67
