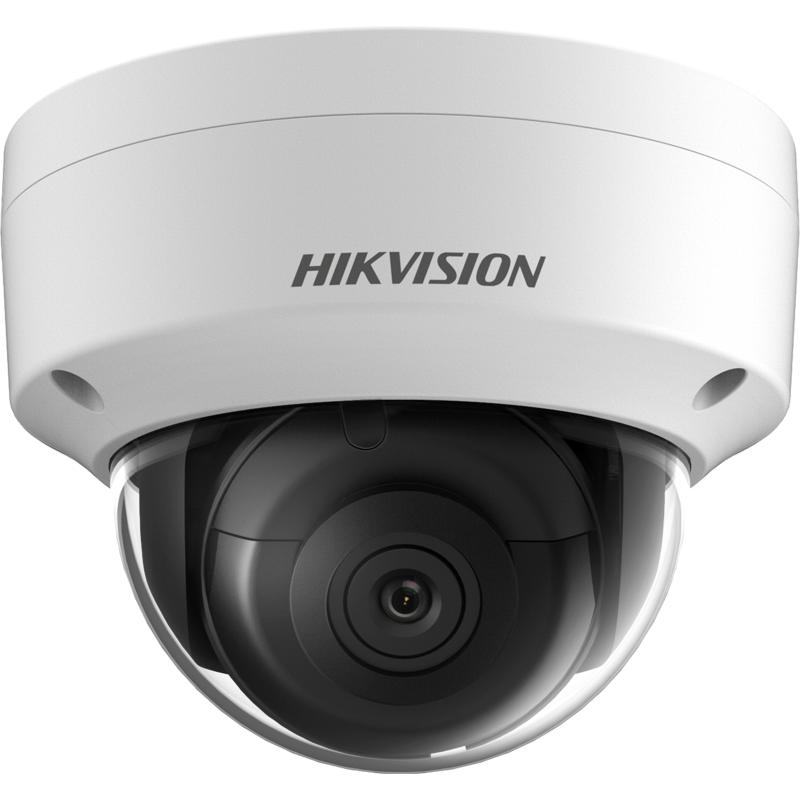

4 MP Outdoor WDR Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials
View Less
View more

Available models:

DS-2CD2143G0-I(2.8mm)
DS-2CD2143G0-I(4mm)
DS-2CD2143G0-I(6mm)
DS-2CD2143G0-I(8mm)
Specification
  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Fixed
  • Lens Type 2.8/4/6/8 mm
  • FOV 2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
  • Aperture F1.6
