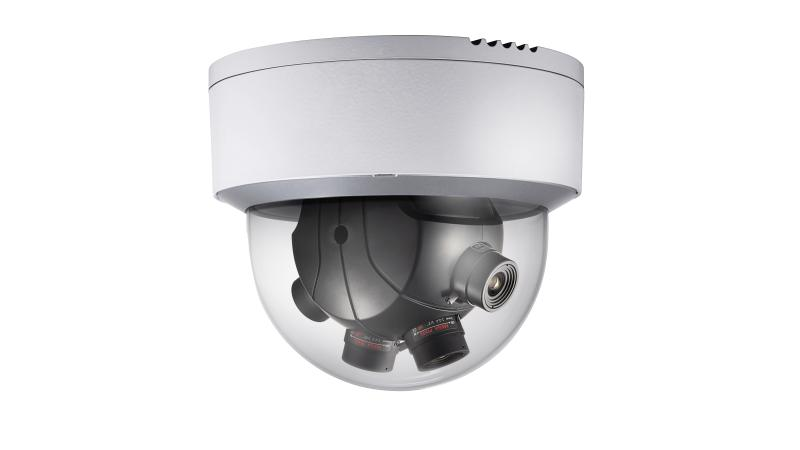

8 MP 180° PanoVu Network Camera

  • 180° splicing image: the image presented includes the full panoramic view covered by the camera
  • Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation
  • IP66 water resistant, preventing water ingress for outdoor use
  • DarkFighter technology captures high quality color images even in dimly light environments
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD6986F-H(24VAC)(5mm)
DS-2CD6986F-(H)(24VAC)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.8’’ Progressive Scan CMOS
  • Min. Illumination0.002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1/25 s - 1/100,000 s
  • Angle AdjustmentPan: 0°~360°, tilt: 45°~90°
  • WDRDigital WDR
  • Day & NightIR Cut Filter
  • Lens5mm ×4, Pan: 180°, Tilt:78.4°
  • Lens MountCS
  • Image
  • Image EnhancementBLC/ 3D DNR/ROI/Defog
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-StreamMode 1:,50Hz: 25fps (704× 320) 60Hz: 30fps(704× 320),Mode 2:,50Hz: 25fps(480 × 768, 320× 512),60Hz: 30fps(480 × 768, 320× 512)
  • Max. Resolution4096 × 1800
  • Main StreamMode 1:,50Hz: 25fps(4096 × 1800, 3840× 1680),60Hz: 30fps(4096 × 1800, 3840× 1680),Mode 2：,50Hz: 25fps(2400 × 3840, 1200 × 1920); ,60Hz: 24fps(2400 × 3840), 30fps(1200 × 1920)
  • Network
  • ProtocolsMotion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
  • Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI
  • DetectionNAS (Support NFS,SMB/CIFS), ANR
  • General FunctionUser Authentication, Watermark, IP address filtering, Anonymous access
  • Interface
  • Communication InterfaceBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1-ch 3.5 mm audio in( Mic in/Line in)/out interface
  • Video Output1 RJ45 10M/100/1000M Ethernet port, 1 RS-485 interface
  • On-board Storage1 input, 1 output (up to DC24V 1A or AC110V 500mA)
  • Compression Standard
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionH.264/ MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/AAC/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
  • Road Traffic and Vehicle Detection
  • Accuracy2850g
  • General
  • Power Supply-30°C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
  • WeightΦ195×159 mm
  • Power Consumption12 V DC ± 10%/PoE (802.3at); (24 V AC/PoE)
  • AccessoryIK10
  • Shipping Weight22W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8’’ Progressive Scan CMOS
Min. Illumination
0.002 Lux @ (F1.2, AGC ON)
Shutter Speed
1/25 s - 1/100,000 s
Angle Adjustment
Pan: 0°~360°, tilt: 45°~90°
WDR
Digital WDR
Day & Night
IR Cut Filter
Lens
5mm ×4, Pan: 180°, Tilt:78.4°
Lens Mount
CS
Image Enhancement
BLC/ 3D DNR/ROI/Defog
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Settings
Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Sub-Stream
Mode 1:,50Hz: 25fps (704× 320) 60Hz: 30fps(704× 320),Mode 2:,50Hz: 25fps(480 × 768, 320× 512),60Hz: 30fps(480 × 768, 320× 512)
Max. Resolution
4096 × 1800
Main Stream
Mode 1:,50Hz: 25fps(4096 × 1800, 3840× 1680),60Hz: 30fps(4096 × 1800, 3840× 1680),Mode 2：,50Hz: 25fps(2400 × 3840, 1200 × 1920); ,60Hz: 24fps(2400 × 3840), 30fps(1200 × 1920)
Network
Protocols
Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Security
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View
ONVIF (PROFILE S, PROFILE G), ISAPI
Detection
NAS (Support NFS,SMB/CIFS), ANR
General Function
User Authentication, Watermark, IP address filtering, Anonymous access
Interface
Communication Interface
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm
1-ch 3.5 mm audio in( Mic in/Line in)/out interface
Video Output
1 RJ45 10M/100/1000M Ethernet port, 1 RS-485 interface
On-board Storage
1 input, 1 output (up to DC24V 1A or AC110V 500mA)
Compression Standard
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
H.264/ MJPEG
Audio Compression
G.711/G.722.1/G.726/MP2L2/AAC/PCM
Video Bit Rate
32 Kbps to 16 Mbps
Audio Bit Rate
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Road Traffic and Vehicle Detection
Accuracy
2850g
General
Power Supply
-30°C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
Weight
Φ195×159 mm
Power Consumption
12 V DC ± 10%/PoE (802.3at); (24 V AC/PoE)
Accessory
IK10
Shipping Weight
22W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8’’ Progressive Scan CMOS
  • Min. Illumination0.002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1/25 s - 1/100,000 s
  • Angle AdjustmentPan: 0°~360°, tilt: 45°~90°
  • WDRDigital WDR
  • Day & NightIR Cut Filter
  • Lens5mm ×4, Pan: 180°, Tilt:78.4°
  • Lens MountCS
  • Image EnhancementBLC/ 3D DNR/ROI/Defog
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Sub-StreamMode 1:,50Hz: 25fps (704× 320) 60Hz: 30fps(704× 320),Mode 2:,50Hz: 25fps(480 × 768, 320× 512),60Hz: 30fps(480 × 768, 320× 512)
  • Max. Resolution4096 × 1800
  • Main StreamMode 1:,50Hz: 25fps(4096 × 1800, 3840× 1680),60Hz: 30fps(4096 × 1800, 3840× 1680),Mode 2：,50Hz: 25fps(2400 × 3840, 1200 × 1920); ,60Hz: 24fps(2400 × 3840), 30fps(1200 × 1920)
Network
  • ProtocolsMotion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
  • SecurityTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
  • Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI
  • DetectionNAS (Support NFS,SMB/CIFS), ANR
  • General FunctionUser Authentication, Watermark, IP address filtering, Anonymous access
Interface
  • Communication InterfaceBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1-ch 3.5 mm audio in( Mic in/Line in)/out interface
  • Video Output1 RJ45 10M/100/1000M Ethernet port, 1 RS-485 interface
  • On-board Storage1 input, 1 output (up to DC24V 1A or AC110V 500mA)
Compression Standard
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionH.264/ MJPEG
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/AAC/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Road Traffic and Vehicle Detection
  • Accuracy2850g
General
  • Power Supply-30°C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
  • WeightΦ195×159 mm
  • Power Consumption12 V DC ± 10%/PoE (802.3at); (24 V AC/PoE)
  • AccessoryIK10
  • Shipping Weight22W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
