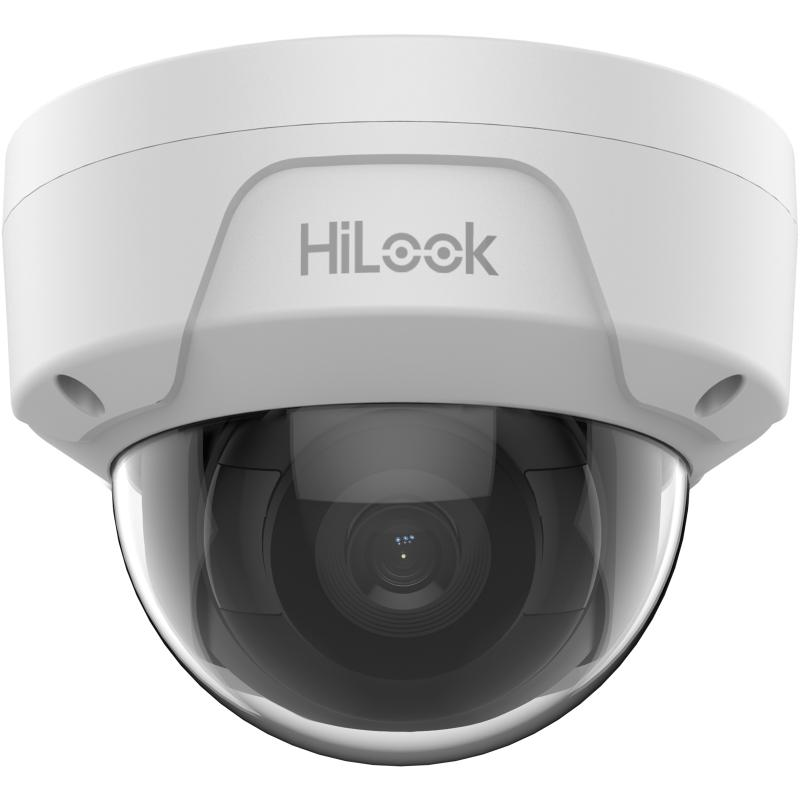

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to DWDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Easy installation with power over Ethernet (PoE) technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

IPC-D121H(2.8mm)(HiLookSTD)
IPC-D121H(4mm)(HiLookSTD)
IPC-D121H(2.8mm)(C)(HiLookSTD)
IPC-D121H(4mm)(C)(HiLookSTD)
IPC-D121H(-M)
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email
  • General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • DimensionØ111 mm × 82.4 mm (Ø4.4" × 3.2")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightApprox. 410 g (0.9 lb.)
  • With Package WeightApprox. 610 g (1.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100, 000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension
Ø111 mm × 82.4 mm (Ø4.4" × 3.2")
Package Dimension
134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight
Approx. 410 g (0.9 lb.)
With Package Weight
Approx. 610 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email
General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • DimensionØ111 mm × 82.4 mm (Ø4.4" × 3.2")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightApprox. 410 g (0.9 lb.)
  • With Package WeightApprox. 610 g (1.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.84_191010
IPC E3S 5.5.84 Release Note--External
Applied to:
IPC-D121H(2.8mm)(HiLookSTD)
IPC-D121H(4mm)(HiLookSTD)

Download Center

Firmware
