NEW

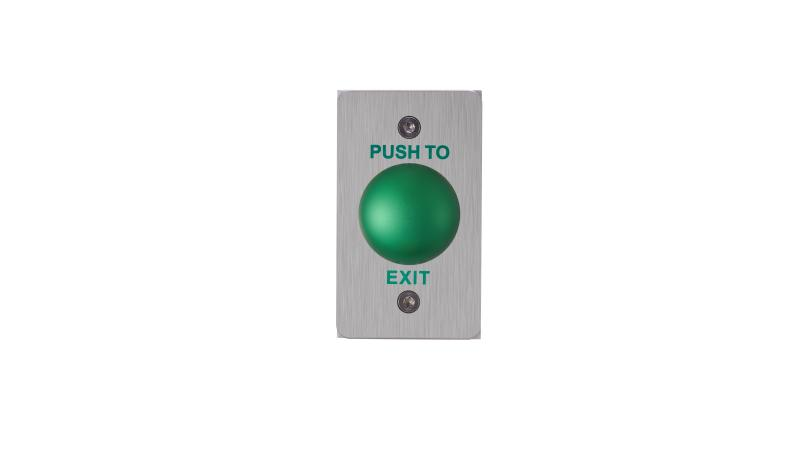

Exit & Emergency Button

  • Structure: stainless steel panel, metal button, metal bottom case
  • Dimension(L×W×H): 90×35×54mm(3.54×1.38×2.13").
View Less
View more

Specification

  • General
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 95% (relative humidity)
  • Dimensions86 mm × 50 mm × 44 mm (3.39" × 1.97" × 1.73")
  • Weight0.14kg (0.31lb)
  • MaterialPanel: stainless steel Button: metal Bottom case: polished zinc alloy with chromium electroplating
  • Power supplyMax. 36 VDC, 3 A
  • Door typeall kinds of doors
  • Signal outputNO/NC/COM Contact
  • Aging Testalready passed 500 thousand times aging test
  • Exit Button/General
  • Current rating3A@36VDC Max
  • Output contactNO/NC/COM Contact
  • Aging testalready passed 500 thousand times aging test
  • Suitable doorall kinds of doors

Specification

Specification
General
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 95% (relative humidity)
  • Dimensions86 mm × 50 mm × 44 mm (3.39" × 1.97" × 1.73")
  • Weight0.14kg (0.31lb)
  • MaterialPanel: stainless steel Button: metal Bottom case: polished zinc alloy with chromium electroplating
  • Power supplyMax. 36 VDC, 3 A
  • Door typeall kinds of doors
  • Signal outputNO/NC/COM Contact
  • Aging Testalready passed 500 thousand times aging test
Exit Button/General
  • Current rating3A@36VDC Max
  • Output contactNO/NC/COM Contact
  • Aging testalready passed 500 thousand times aging test
  • Suitable doorall kinds of doors
