DS-K1A8503MF

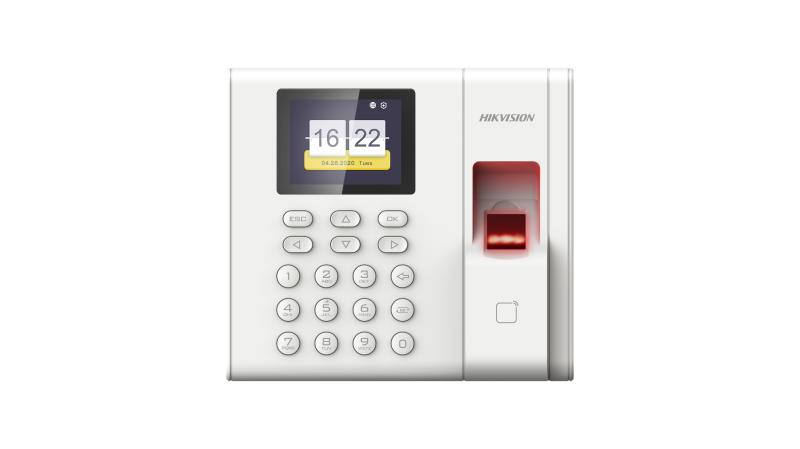

K1A8503 Value Series Fingerprint Time Attendance Terminal

  • 2.4-inch LCD screen to display time, date, week, and attendance information
  • TCP/IP communication
  • 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
  • Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
  • Stand-alone operation (supports adding persons, cards, and fingerprints locally)
  • Downloads attendance reports by USB flash drive
  • Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Generates reports automatically
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • Supports ISAPI protocol and ISUP 5.0 protocol
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1A8503MF
DS-K1A8503MF
Data Sheet

Specification

  • Display
  • Screen size2.4-inch
  • TypeLCD-TFT display screen
  • Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
  • Interface
  • Network interface1
  • USB1
  • Authentication
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • General
  • Power supply5 VDC/1 A
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
  • InstallationWall mounting
  • ColorWhite
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen size
2.4-inch
Type
LCD-TFT display screen
Network
Wired network
TCP/IP, 10/100Mbps, self-adaptive
Interface
Network interface
1
USB
1
Authentication
Fingerprint module
Optical fingerprint module
Fingerprint comparing mode
1:1 and 1:N
General
Power supply
5 VDC/1 A
Working temperature
-10 °C to +55 °C (14 °F to +131 °F)
Working humidity
10% to 90% (no condensing)
Dimensions
140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Installation
Wall mounting
Color
White
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen size2.4-inch
  • TypeLCD-TFT display screen
Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
Interface
  • Network interface1
  • USB1
Authentication
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
General
  • Power supply5 VDC/1 A
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
  • InstallationWall mounting
  • ColorWhite
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.4.1_240318
Applied to:
DS-K1A8503MF
