EOL

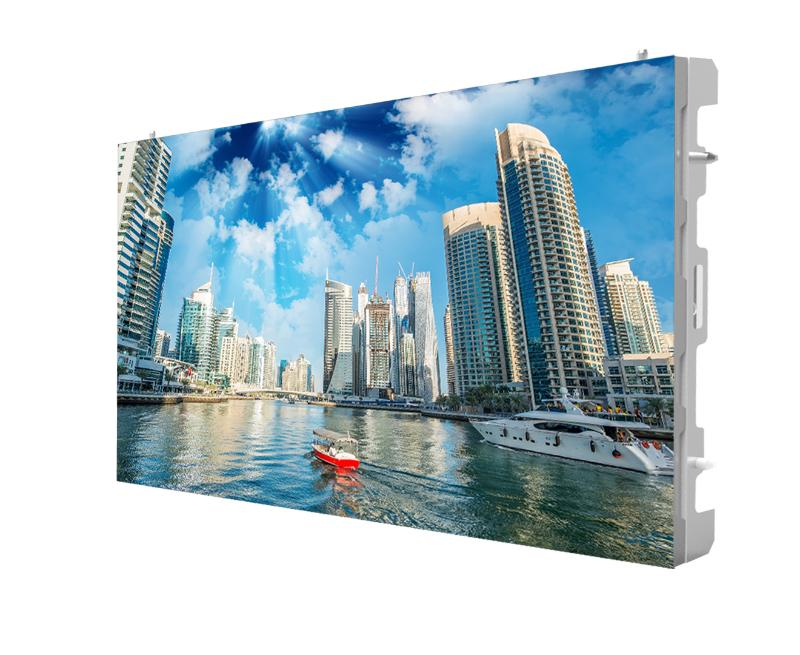

P1.875 Fine Fixel Pitch LED Display Unit

  • Seamlessly splice images in rows and columns.
  • Easily form standard 1920 × 1080 and 3840 × 2160 screens, achieving high definition dot-by-dot display.
  • Automatically adapt signal sources to screens without the help of a video processing equipment.
  • Easily optimize images with low resolution by improving definition, contrast and saturation with Pix Master technology.
  • Dynamically enhance image parameters such as contrast, sharpness, saturation, color temperature and gamut to get the image more vivid.
  • A signal input of 4K resolution at 30 Hz, and an output of up to 4K resolution for a single device.
  • Use the buttons on the panel of sending card to adjust brightness and switch signal.
  • Use the Hikvision remote control (optional) to navigate through menu after access to the multi-functional card.
  • Automatically remove moisture to protect lamp boards from water damage when the device is kept in a humid environment or left unused for a long time.
  • Back up signals and power supplies (optional) to maintain a reliable system.
  • Real-time cabinet temperature and voltage checking to guarantee product safety.
  • Use the sending card to input HDMI, DVI, and DP signals.
  • Network interface output.
  • Remote configuration via the debugging network interface.
  • Easy to disassemble lamp board, power supply, and receiving card on the front side with modular unit structure.
  • Precise fool-proof design of lamp boards with magnetic adsorption to prevent wrong installation.
  • Three-axis XYZ structure designed to perfectly adjust the flatness of the entire screen.
  • Rapidly eliminate bright and dim lines with no need of professional equipment or operations.

View Less
View more
Sales Inquiry

Available models:

DS-D4218FI-CWF 600*337.5MM/BOX
DS-D4218FI-CWF/Ⅲ
EOL

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP1.8
  • Pixel Pitch1.875 mm
  • Modules Component2 × 4
  • Dimensions (W × H × D)600 mm × 337.5 mm × 50.9 mm (23.62" × 13.29" × 2.00")
  • Resolution320 × 180
  • Area0.2025 m²
  • Weight5.4 Kg (11.9 lb)
  • Pixel Density284444 dots/m²
  • Lamp Board HousingNo housing
  • Cabinet MaterialMagnalium
  • Maintenance MethodFront maintenance for all components
  • Cabinet Flatness0.1 mm
  • Protection LevelFront protection level IP60
  • Display
  • White Balance Brightness800 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
  • Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 345 W/m²
  • Average Consumption< 115 W/m²
  • Working Environment
  • Working Temperature-10-40 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~80%RH
  • Storage Temperature-20~60 ℃
  • General
  • Gross Weight9.6 Kg (21.2 lb)
  • Package Dimension (W × H × D)796 mm × 484 mm × 192 mm (31.33" × 19.05" × 7.56")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P1.8
Pixel Pitch
1.875 mm
Modules Component
2 × 4
Dimensions (W × H × D)
600 mm × 337.5 mm × 50.9 mm (23.62" × 13.29" × 2.00")
Resolution
320 × 180
Area
0.2025 m²
Weight
5.4 Kg (11.9 lb)
Pixel Density
284444 dots/m²
Lamp Board Housing
No housing
Cabinet Material
Magnalium
Maintenance Method
Front maintenance for all components
Cabinet Flatness
0.1 mm
Protection Level
Front protection level IP60
Display
White Balance Brightness
800 cd/m²
Color Temperature
3000 K to 10000 K adjustable
Viewing Angle
Horizontal 160°, vertical 160°
Contrast Ratio
≥ 5000:1
Color Uniformity
≤ ± 0.003Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Driving Method
Constant current driving
Frame Frequency
60 Hz
Refresh Rate
Up to 3840 Hz
Grey Level
Up to 16 bit
Display Color
281 trillion
Power
Power Supply
110~220 VAC ± 15%
Max. Consumption
≤ 345 W/m²
Average Consumption
< 115 W/m²
Working Environment
Working Temperature
-10-40 ℃
Working Humidity
10%~80%RH
Storage Humidity
10%~80%RH
Storage Temperature
-20~60 ℃
General
Gross Weight
9.6 Kg (21.2 lb)
Package Dimension (W × H × D)
796 mm × 484 mm × 192 mm (31.33" × 19.05" × 7.56")
Lifespan
Lamp 100,000 hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP1.8
  • Pixel Pitch1.875 mm
  • Modules Component2 × 4
  • Dimensions (W × H × D)600 mm × 337.5 mm × 50.9 mm (23.62" × 13.29" × 2.00")
  • Resolution320 × 180
  • Area0.2025 m²
  • Weight5.4 Kg (11.9 lb)
  • Pixel Density284444 dots/m²
  • Lamp Board HousingNo housing
  • Cabinet MaterialMagnalium
  • Maintenance MethodFront maintenance for all components
  • Cabinet Flatness0.1 mm
  • Protection LevelFront protection level IP60
Display
  • White Balance Brightness800 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 345 W/m²
  • Average Consumption< 115 W/m²
Working Environment
  • Working Temperature-10-40 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~80%RH
  • Storage Temperature-20~60 ℃
General
  • Gross Weight9.6 Kg (21.2 lb)
  • Package Dimension (W × H × D)796 mm × 484 mm × 192 mm (31.33" × 19.05" × 7.56")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V600_211122
Firmware_V2.0.1_191104
Applied to:
DS-D4218FI-CWF 600*337.5MM/BOX
