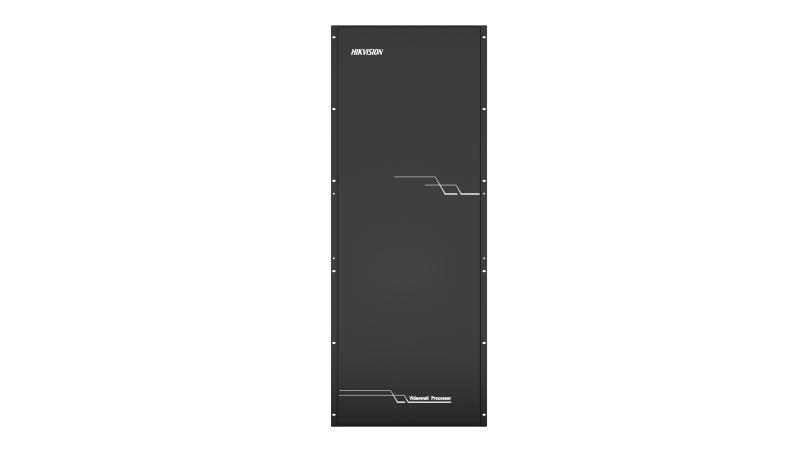

Video Wall Controller Casing

It adopts full hardware fpga architecture and internal self-built core computing mechanism, which has excellent image processing performance.
The main modules such as input capture card, output card, switch card, control card and fan are all hot-swappable and ﬂexible, which is convenient for daily use and maintenance.
Screen display.
With rrta (Resolution Real-Time Full Compatibility) technology, a single processor can simultaneously control multiple sets of large screens with diﬀerent resolutions.
Support arbitrary roaming, zooming, superimposing, partial zooming, signal cropping, etc.
Functional characteristics.
Support for input port edid editing, greatly improving the compatibility of large-screen display devices, so that the device output signal can adapt to a variety of conventional and non-conventional applications.
Real-time monitoring of all input signals prevents the operator from displaying the wrong signal on the large screen.
Multiple ultra-high resolution static "point-to-point" basemaps can be stored to meet more professional display needs.
Supports the function of character superimposition on the input signal channel, which is convenient for the user to grasp the source of the signal in real time.
Support multi-scene save and automatic polling, convenient for fast switching and real-time viewing of important scenes.
Diﬀerent users and privilege levels can be set, diﬀerent allowed operations and restricted operations can be deﬁned, and the technical level restriction management of the operator's privilege can be realized.
Built-in mainstream large-screen switch control protocol on the market, can be customized to integrate new large-screen switch control protocol according to actual needs.
Support remote network control, management software can not only manage devices in the LAN, but also remotely manage online devices on the remote network through ip networking.

View Less

Available models:

DS-C10M-S68

EOL

Specification
Resources
Accessories

Chassis

Chassis
机箱高度482x1240x380(mm)
Service Board SlotSupport input 32 slots, output 36 slots, support 36 high-division acquisition, support redundant power supply, standard 2 power modules

Chassis

机箱高度

482x1240x380(mm)

Service Board Slot

Support input 32 slots, output 36 slots, support 36 high-division acquisition, support redundant power supply, standard 2 power modules

Chassis

机箱高度482x1240x380(mm)
Service Board SlotSupport input 32 slots, output 36 slots, support 36 high-division acquisition, support redundant power supply, standard 2 power modules
