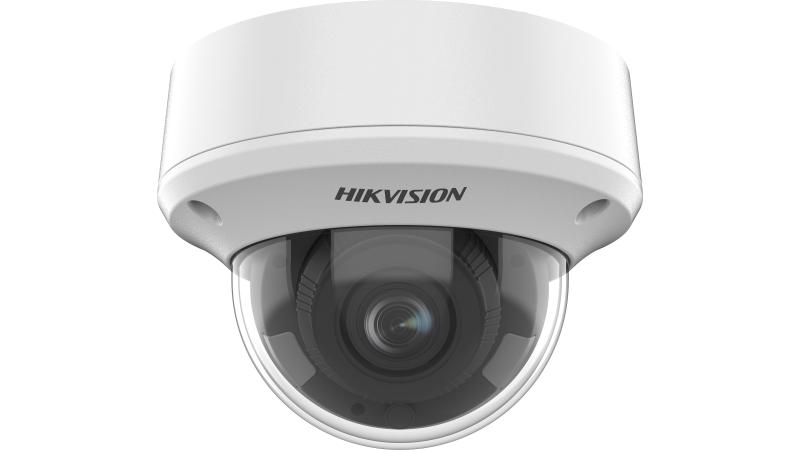

5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera

  • 5 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0, advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
  • Camera
  • 렌즈2.7 mm to 13.5 mm motorized varifocal lens
  • Horizontal Field of View92.3° to 29.3°
  • Lens MountΦ 14
  • Day & NightIR cut filter, Auto/Color/BW (Black and White)
  • 동기화Internal synchronization
  • WDR (Wide Dynamic Range)≥ 130 dB
  • Angle AdjustmentPan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
  • Image Sensor5 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC
  • 해상도2560 (H) × 1944 (V)
  • Min. illuminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
  • Menu
  • AGCYes
  • White BalanceAuto/Manual
  • Privacy Mask4 programmable privacy masks
  • Motion Detection4 programmable areas
  • WDRYes
  • 3D DNR (Digital Noise Reduction)Level 1 to 9
  • 언어English
  • 함수Brightness, Sharpness, 3D DNR, Mirror, Smart IR
  • BLC (Backlight Compensation)Yes
  • 인터페이스
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • 일반
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Power Supply-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC.
  • Power Consumption-A: Max. 8 W
  • MaterialMetal
  • IR RangeUp to 60 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • 크기Φ 145 mm × 111.3 mm (Φ 5.70" × 4.37")
  • WeightApprox. 830 g (1.83 lb.)
  • Ingress ProtectionIP67, IK10
Specification
Related Accessories
DS-1273ZJ-140-DM45
Wall mount
DS-1271ZJ-140-DM45
Pendant Mount
DS-1281ZJ-DM45
Inclined ceiling mount
DS-1280ZJ-DM45
Junction box
DS-1276ZJ-SUS
Corner mount
DS-1275ZJ-SUS
Vertical pole mount
DS-1253ZJ-L
Water-proof
