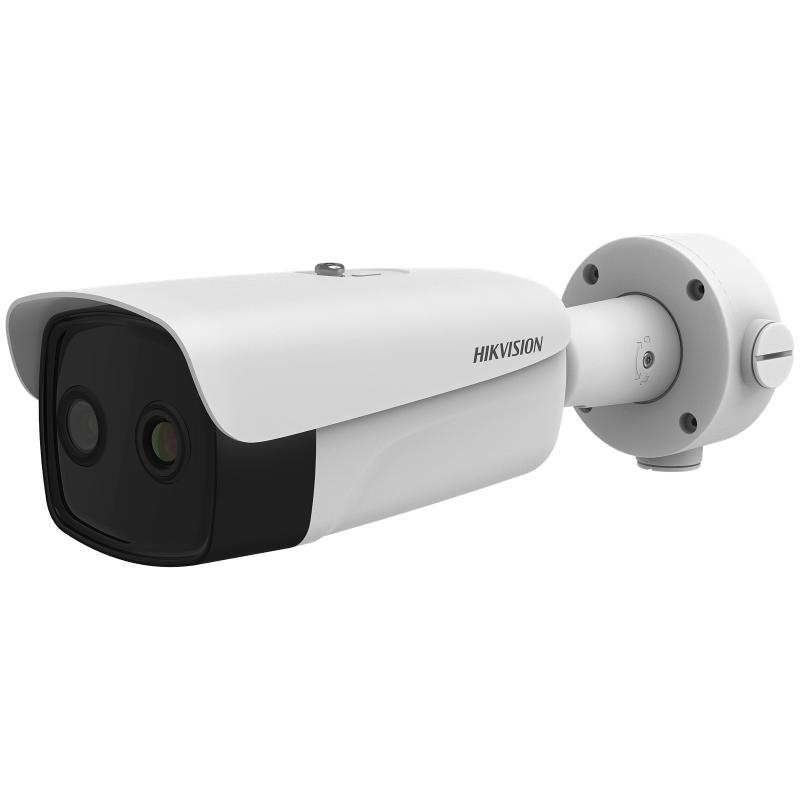

Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Fire detection algorithm

View Less

Available models:

DS-2TD2637T-10/P

EOL

Specification
Resources
Accessories

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution384 × 288
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETD≤ 35 mk (25 °C, F# = 1.0)
Focal Length9.7 mm
IFOV1.75 mrad
Field of View37.5° × 28.5° (H × V)
Min. Focusing Distance1 m
ApertureF 1.0
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Shutter Speed1 s to 1/100,000 s
Focal Length4 mm
Field of View84° × 44.8° (H × V)
Aperture (Range)F 1.6
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator
IR DistanceUp to 40 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
Temperature AccuracyMax (± 2 °C, ±2 %)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamOptical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-streamOptical channel 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240)
Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Interface
Alarm Input2-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear level, impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block PoE (802.3af, class 3)
Power Consumption18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W 24VDC: 0.375A, max 9W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Working Temperature/HumidityTemperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less
Protection LevelIP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
WeightApprox. 1.82 kg (4.01 lb)

Detection Range Table/Smart Function Range
VCA Range for Humans70 m
VCA Range for Vehicles210 m

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

384 × 288

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

≤ 35 mk (25 °C, F# = 1.0)

Focal Length

9.7 mm

IFOV

1.75 mrad

Field of View

37.5° × 28.5° (H × V)

Min. Focusing Distance

1 m

Aperture

F 1.0

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2688 × 1520

Min. Illumination

Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Focal Length

4 mm

Field of View

84° × 44.8° (H × V)

Aperture (Range)

F 1.6

WDR

120 dB

Image Effect

Bi-spectrum Image Fusion

Display the details of optical channel on thermal channel

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Yes. Supported in white hot and black hot mode.

Illuminator

IR Distance

Up to 40 m

IR Intensity and Angle

Automatically adjusted

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range

- 20 °C to 550 °C (- 4 °F to 1022 °F)

Temperature Accuracy

Max (± 2 °C, ±2 %)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

Sub-stream

Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240)

Video Compression

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG

Audio Compression

G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering

Simultaneous Live View

Up to 20 channels

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Interface

Alarm Input

2-ch inputs (0-5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear level, impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface

General

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power

24 VAC ± 25%, 12 VDC ± 25%, 24VDC, two-core terminal block PoE (802.3af, class 3)

Power Consumption

18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W 24VDC: 0.375A, max 9W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

Working Temperature/Humidity

Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less

Protection Level

IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions

376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")

Weight

Approx. 1.82 kg (4.01 lb)

Detection Range Table/Smart Function Range

VCA Range for Humans

70 m

VCA Range for Vehicles

210 m
