EOL

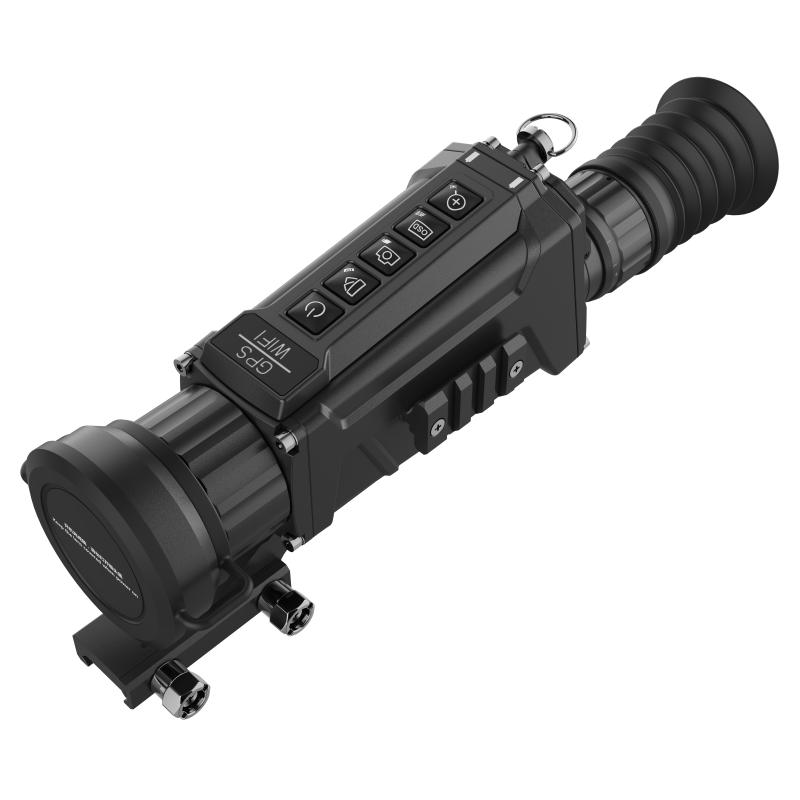

Thermal Telescope

  • High sensitivity sensor with 384 x 288 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Shutterless technology
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 x 768 resolution 0.39-inch OLED display
  • Supports distance measurement, GPS and Wi-Fi hotspot function
  • Supports video recording and snapshot, built-in MicroSD memory module (Max 16 GB)
  • Supports digital zoom and crosshair function, palettes of adjustable color
  • Over 8 hours of continuous battery power
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2TR03-50UF/W
DS-2TR03-50UF/W
EOL
Data Sheet

Specification

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Max. Resolution384*288, 17um
  • Response Waveband8μm to 14μm
  • NETD< 35mk(@25 °C, F#=1.0)
  • Lens (focal length)50mm (support manual focus)
  • F NumberF1.0
  • Field of View7.4°×5.6°
  • IFOV0.34mrad
  • Image Display
  • Monitor0.39-inch, OLED, 1024 ×768
  • PalettesBlack hot, white hot, red hot
  • Ocular Exit Pupil Distance30 mm
  • System
  • Uniformity CorrectionSupport shutterless technology
  • Digital Zoom2X, 4X
  • CrosshairSupport
  • WIFISupport
  • Distance MeasurementSupport
  • GPSSupport
  • Video RecordingSupport
  • Picture SnapshotSupport
  • Contrast AdjustmentSupport
  • Brightness AdjustmentSupport
  • StorageBuilt-in Micro SD memory module (Max 16GB)
  • Power Supply
  • BatteryTwo 18650 batteries, require 5h to be full charged
  • Power Consumption≤2.1W
  • Battery Operating Time≥8h
  • Anti-reverse battery connectionSupport
  • Overvoltage ProtectionSupport
  • Battery Capacity DisplaySupport
  • General
  • MountingPicatinny rail system
  • PortUSB, analog video output
  • Working Temperature-30°C ~55°C (-22°F ~ 131°F)
  • Protection LevelIP67
  • Shock Absorption DesignSupport
  • Prevent Ocular Light LeakSupport
  • Vibration & ShockMIL-STD-810F
  • Electrostatic Protection15KV
  • Dimension (L x W x H)244mm x 65mm x 95mm (9.61” x 2.56” x 3.74”)
  • Weight< 0.8kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution
384*288, 17um
Response Waveband
8μm to 14μm
NETD
< 35mk(@25 °C, F#=1.0)
Lens (focal length)
50mm (support manual focus)
F Number
F1.0
Field of View
7.4°×5.6°
IFOV
0.34mrad
Image Display
Monitor
0.39-inch, OLED, 1024 ×768
Palettes
Black hot, white hot, red hot
Ocular Exit Pupil Distance
30 mm
System
Uniformity Correction
Support shutterless technology
Digital Zoom
2X, 4X
Crosshair
Support
WIFI
Support
Distance Measurement
Support
GPS
Support
Video Recording
Support
Picture Snapshot
Support
Contrast Adjustment
Support
Brightness Adjustment
Support
Storage
Built-in Micro SD memory module (Max 16GB)
Power Supply
Battery
Two 18650 batteries, require 5h to be full charged
Power Consumption
≤2.1W
Battery Operating Time
≥8h
Anti-reverse battery connection
Support
Overvoltage Protection
Support
Battery Capacity Display
Support
General
Mounting
Picatinny rail system
Port
USB, analog video output
Working Temperature
-30°C ~55°C (-22°F ~ 131°F)
Protection Level
IP67
Shock Absorption Design
Support
Prevent Ocular Light Leak
Support
Vibration & Shock
MIL-STD-810F
Electrostatic Protection
15KV
Dimension (L x W x H)
244mm x 65mm x 95mm (9.61” x 2.56” x 3.74”)
Weight
< 0.8kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Max. Resolution384*288, 17um
  • Response Waveband8μm to 14μm
  • NETD< 35mk(@25 °C, F#=1.0)
  • Lens (focal length)50mm (support manual focus)
  • F NumberF1.0
  • Field of View7.4°×5.6°
  • IFOV0.34mrad
Image Display
  • Monitor0.39-inch, OLED, 1024 ×768
  • PalettesBlack hot, white hot, red hot
  • Ocular Exit Pupil Distance30 mm
System
  • Uniformity CorrectionSupport shutterless technology
  • Digital Zoom2X, 4X
  • CrosshairSupport
  • WIFISupport
  • Distance MeasurementSupport
  • GPSSupport
  • Video RecordingSupport
  • Picture SnapshotSupport
  • Contrast AdjustmentSupport
  • Brightness AdjustmentSupport
  • StorageBuilt-in Micro SD memory module (Max 16GB)
Power Supply
  • BatteryTwo 18650 batteries, require 5h to be full charged
  • Power Consumption≤2.1W
  • Battery Operating Time≥8h
  • Anti-reverse battery connectionSupport
  • Overvoltage ProtectionSupport
  • Battery Capacity DisplaySupport
General
  • MountingPicatinny rail system
  • PortUSB, analog video output
  • Working Temperature-30°C ~55°C (-22°F ~ 131°F)
  • Protection LevelIP67
  • Shock Absorption DesignSupport
  • Prevent Ocular Light LeakSupport
  • Vibration & ShockMIL-STD-810F
  • Electrostatic Protection15KV
  • Dimension (L x W x H)244mm x 65mm x 95mm (9.61” x 2.56” x 3.74”)
  • Weight< 0.8kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.4.12_190709
Applied to:
DS-2TR03-50UF/W
