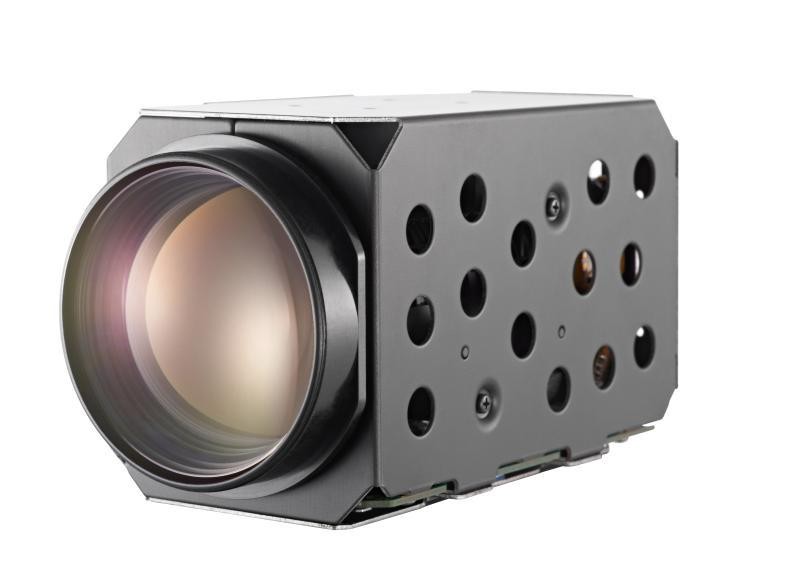

iDS-2ZMN3209N(B)

iDS-2ZMN3209N(B)

  • 1/2.8" progressive scan CMOS
  • Up to 2560 × 1440 resolution
  • 32 × optical zoom, focal length 5.9 mm to 188.8 mm
  • Min. illumination: Color: 0.05 Lux @ (F1.5, AGC ON)
  • IR cut filter with auto switch
  • EIS, 120 dB WDR, 3D DNR
  • Smart events: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Face capture
  • Quick and accurate focus
  • Efficient H.265 compression technology
  • Multiple interfaces for extended functionality
  • Network output
  • Small size and low power consumption
  • Easy to connect to PTZ cameras and positioning systems
  • Seamless access to mainstream platforms and other network devices
View Less
View more

Available models:

iDS-2ZMN3209N(B)

Specification

  • Camera Module
  • Heartbeatyes
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @(F1.5, AGC ON)
  • Resolution and Frame RateMain Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.264/H.265
  • Audio CompressionG.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
  • White Balanceauto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
  • Gain ControlAuto/Manual
  • SNR>52 dB
  • 3D DNRyes
  • BLCyes
  • Regional Focusyes
  • Shutter1/1 s to 1/30,000 s
  • Day & NightAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
  • Digital Zoom12 ×
  • Focusauto, semi-auto, manual
  • Privacy Maskup to 8 masks
  • Regional Exposureyes
  • Video Bit Rate32 kbps to 16384 kbps
  • Day/Night SwitchICR
  • Exposure Mode auto, iris priority, shutter priority, manual
  • Lens
  • Focal Length5.9 mm to 188.8 mm, 32 × optical
  • Zoom SpeedApprox. 5.6 s (Optical, Wide-Tele)
  • Horizontal FOV60.2° to 2.3° (Wide-Tele)
  • ApertureF1.5 to F3.4
  • Function
  • Image Enhancement120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope
  • Smart Encodinglow bit rate, ROI
  • Exception Detectionillegal login
  • Power-off Memoryyes
  • Smart Detectionintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Face Captureyes
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
  • APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
  • Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Simultaneous Live ViewUp to 20 channels
  • UserUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access
  • Interface
  • Power Interface12 VDC ± 10%
  • CommunicationRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol
  • Communication Interface10 M/100 M Ethernet interface
  • Audio I/O1 audio input, 1 audio output
  • Alarm I/O1 alarm input, 1 alarm output
  • Video Outputno
  • SDI Outputno
  • RS-485yes
  • On-board StorageMicro SD/Micro SDHC/Micro SDXC card, up to 256 GB
  • Interface36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)
  • General
  • Power ConsumptionStatic: 5 W, Dynamic: 7 W
  • Operating ConditionsTemperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%
  • Dimensions57 mm × 67 mm × 119 mm (2.24" × 2.64" × 4.69")
  • WeightApprox. 420 g (0.93 lb.)

Specification

Specification
Camera Module
  • Heartbeatyes
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @(F1.5, AGC ON)
  • Resolution and Frame RateMain Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.264/H.265
  • Audio CompressionG.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
  • White Balanceauto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
  • Gain ControlAuto/Manual
  • SNR>52 dB
  • 3D DNRyes
  • BLCyes
  • Regional Focusyes
  • Shutter1/1 s to 1/30,000 s
  • Day & NightAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
  • Digital Zoom12 ×
  • Focusauto, semi-auto, manual
  • Privacy Maskup to 8 masks
  • Regional Exposureyes
  • Video Bit Rate32 kbps to 16384 kbps
  • Day/Night SwitchICR
  • Exposure Mode auto, iris priority, shutter priority, manual
Lens
  • Focal Length5.9 mm to 188.8 mm, 32 × optical
  • Zoom SpeedApprox. 5.6 s (Optical, Wide-Tele)
  • Horizontal FOV60.2° to 2.3° (Wide-Tele)
  • ApertureF1.5 to F3.4
Function
  • Image Enhancement120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope
  • Smart Encodinglow bit rate, ROI
  • Exception Detectionillegal login
  • Power-off Memoryyes
  • Smart Detectionintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Face Captureyes
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
  • APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
  • Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Simultaneous Live ViewUp to 20 channels
  • UserUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access
Interface
  • Power Interface12 VDC ± 10%
  • CommunicationRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol
  • Communication Interface10 M/100 M Ethernet interface
  • Audio I/O1 audio input, 1 audio output
  • Alarm I/O1 alarm input, 1 alarm output
  • Video Outputno
  • SDI Outputno
  • RS-485yes
  • On-board StorageMicro SD/Micro SDHC/Micro SDXC card, up to 256 GB
  • Interface36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)
General
  • Power ConsumptionStatic: 5 W, Dynamic: 7 W
  • Operating ConditionsTemperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%
  • Dimensions57 mm × 67 mm × 119 mm (2.24" × 2.64" × 4.69")
  • WeightApprox. 420 g (0.93 lb.)
