EOL

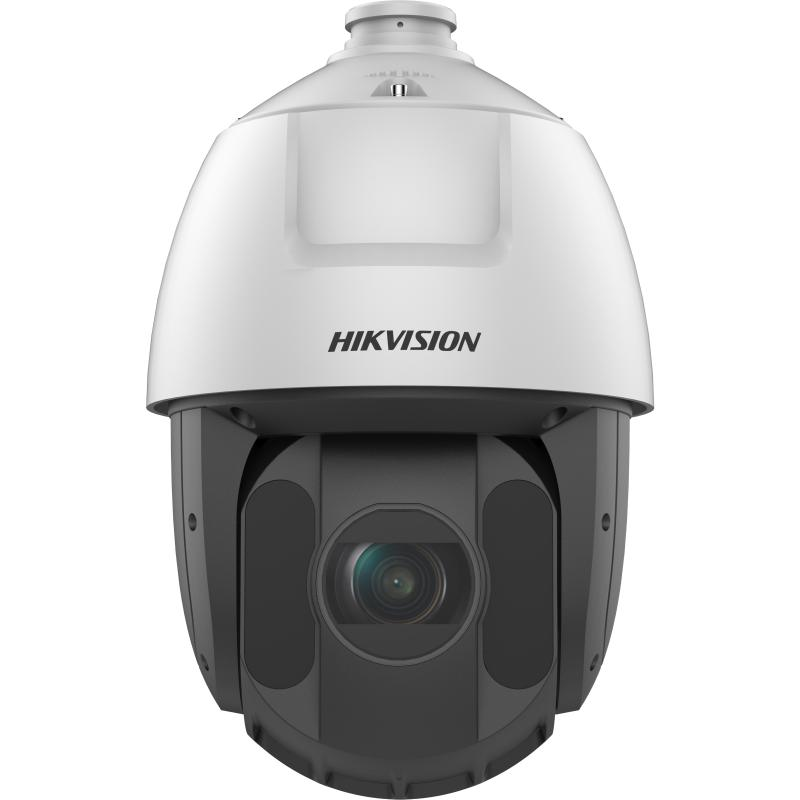

4 MP 25X Powered by DarkFighter IR Network Speed Dome

  • 1/2.8" Progressive Scan CMOS
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 150 m IR distance
  • 24 VAC & PoE (802.3at)
  • Efficient H.265+/H.265 compression technology
View Less
View more

Available models:

DS-2DE5425IW-AE(S6)

Specification

  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/30,000 s
  • Slow ShutterYes
  • Day & NightIR cut filter
  • Zoom25x optional, 16x digital
  • Max. Resolution2560 × 1440
  • Lens
  • FocusAuto, semi-auto, manual
  • Focal Length4.8 mm to 120 mm
  • Zoom SpeedApprox. 3.6 s
  • FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • ApertureMax. F1.6
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeIR Distance: up to 150 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan SpeedPan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Power-off Memoryyes
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Video
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile/Main profile/High profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filteringyes
  • Network
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
  • APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital Defog
  • Regional ExposureYes
  • Regional FocusYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters SwitchYes
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • SNR>52 dB
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm2 inputs, 1 output
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • 초기화Yes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
  • Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • General
  • Power24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • DemistYes
  • MaterialMetal
  • DimensionØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
  • WeightApprox. 3.0 kg (6.61 lb.)
  • Approval
  • ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Specification

Specification
Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/30,000 s
  • Slow ShutterYes
  • Day & NightIR cut filter
  • Zoom25x optional, 16x digital
  • Max. Resolution2560 × 1440
Lens
  • FocusAuto, semi-auto, manual
  • Focal Length4.8 mm to 120 mm
  • Zoom SpeedApprox. 3.6 s
  • FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • ApertureMax. F1.6
Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeIR Distance: up to 150 m
PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan SpeedPan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Power-off Memoryyes
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile/Main profile/High profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filteringyes
Network
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
  • APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital Defog
  • Regional ExposureYes
  • Regional FocusYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters SwitchYes
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • SNR>52 dB
Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm2 inputs, 1 output
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • 초기화Yes
Event
  • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
  • Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
  • Power24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • DemistYes
  • MaterialMetal
  • DimensionØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
  • WeightApprox. 3.0 kg (6.61 lb.)
Approval
  • ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
