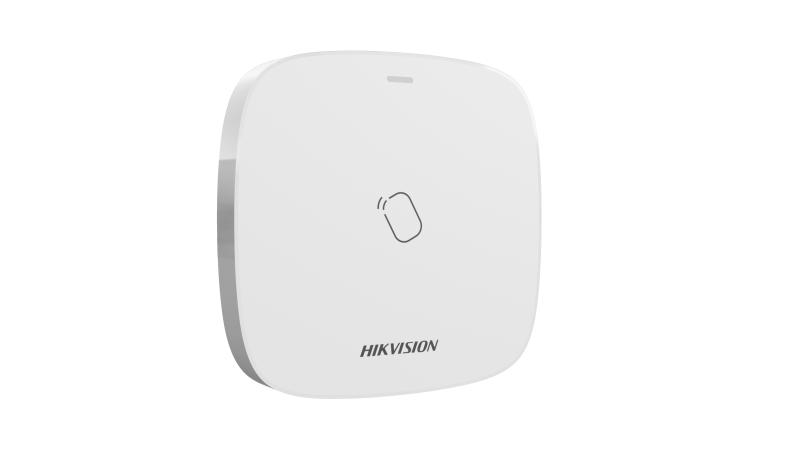

Wireless tag reader

RF 433MHz
Offers reliable protection utilizing two-way wireless technology
Supports arming or disarming with card
Patrol card for checking in (different from the arming/disarming card)
Communicates up to 800 m (in open area)

View Less

Data Sheet

Available models:

DS-PTA-WL-433(white)

DS-PTA-WL-433(black)

DS-PTA-WL-433

EOL

Specification
Resources
Accessories

Data Sheet

Software features
Tamper-ProofFront and rear
ProtocolHIK wireless protocol: Access to wireless control panel, twoway communication
IC CardSupports standard IC card swiping

Hardware features
Serial port1, reserved
Numeric key10 keys: 0 to 9
Function key6 function keys: fire alarm, away arming, stay arming, disarming, delete, and confirm
Indicator3 colors: red, green and orange

RF transmission
RF Frequency433MHz
RF Modulation2GFSK
RF Power10 dBm
RF Speed10 kbps
RF Range800 m (open area)

Electrical characteristics
Power supply3 VDC power input
Battery type4 AA batteries
Battery life span3 years

General
Operation temperature-10 °C to +55 °C (-4 °F to +122 °F)
Operation humidity10% to 90% (No condensing)
Dimension(WxHxD)φ131.5 mm (5.2"); height: 23 mm (0.9")
Application scenarioOutdoor
ColorWhite
Installation methodWall mounting

Software features

Tamper-Proof

Front and rear

Protocol

HIK wireless protocol: Access to wireless control panel, twoway communication

IC Card

Supports standard IC card swiping

Hardware features

Serial port

1, reserved

Numeric key

10 keys: 0 to 9

Function key

6 function keys: fire alarm, away arming, stay arming, disarming, delete, and confirm

Indicator

3 colors: red, green and orange

RF transmission

RF Frequency

433MHz

RF Modulation

2GFSK

RF Power

10 dBm

RF Speed

10 kbps

RF Range

800 m (open area)

Electrical characteristics

Power supply

3 VDC power input

Battery type

4 AA batteries

Battery life span

3 years

General

Operation temperature

-10 °C to +55 °C (-4 °F to +122 °F)

Operation humidity

10% to 90% (No condensing)

Dimension(WxHxD)

φ131.5 mm (5.2"); height: 23 mm (0.9")

Application scenario

Outdoor

Color

White

Installation method

Wall mounting
