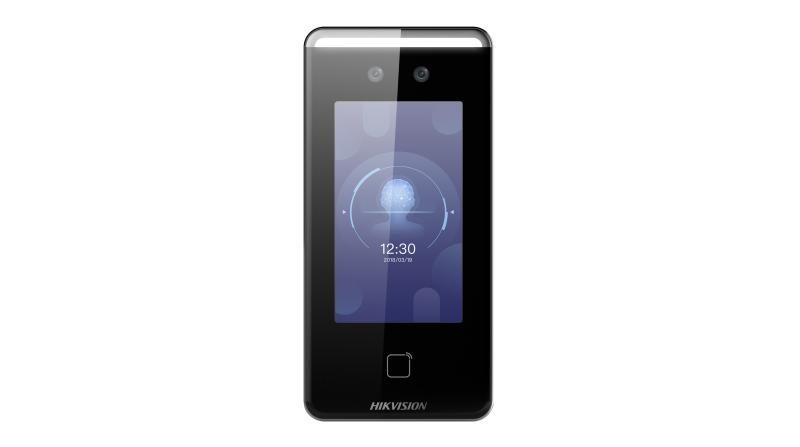

Value Series Face Access Terminal

  • Deep learning algorithm
  • 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
  • 3,000 face capacity, 3,000 card capacity, and 150,000 event capacity
  • Multiple authentication modes, including face, and card, etc.
  • Face recognition duration < 0.2 s/User
  • Supports mask wearing detection
  • Connects to external access controller or Wiegand card reader via Wiegand protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
  • Two-way audio with client software, door station, indoor station, and main station
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T341CM
DS-K1T341CM
Data Sheet

Specification

  • Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • TypeIPS
  • Video
  • Lens2
  • Resolution2 MP (video stream: 720P)
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
  • Audio
  • Audio qualityNoise suppression and echo cancellation
  • Network
  • Wired networkSupport
  • Interface
  • Network interface1 RJ-45, 10/100 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851,RS-485 (Half duplex,HIKVISION）
  • Wiegand1,Wiegand （Hik 26bit,Hik 34bit）
  • USB1
  • Authentication
  • Card typeM1 card
  • General
  • Built-in access controllerSupport
  • Power supply12 VDC to 24 VDC, 2 A
  • Power consumption≤ 10 W
  • Working temperature-30 °C to 60 ℃ (-22 °F to 140 °F )
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
  • Function
  • Hik-ConnectSupport
  • QR code recognitionSupport
  • Face anti-spoofingSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen size
4.3 inch
Operation method
Capacitive touch screen
Type
IPS
Video
Lens
2
Resolution
2 MP (video stream: 720P)
FOV
HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Audio
Audio quality
Noise suppression and echo cancellation
Network
Wired network
Support
Interface
Network interface
1 RJ-45, 10/100 M self-adaptive
Lock control
1
Exit button
1
Door contact input
1
TAMPER
1
RS-485
1,RS-485 (Half duplex,HIKVISION）
Wiegand
1,Wiegand （Hik 26bit,Hik 34bit）
USB
1
Authentication
Card type
M1 card
General
Built-in access controller
Support
Power supply
12 VDC to 24 VDC, 2 A
Power consumption
≤ 10 W
Working temperature
-30 °C to 60 ℃ (-22 °F to 140 °F )
Protective level
IP65
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Function
Hik-Connect
Support
QR code recognition
Support
Face anti-spoofing
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • TypeIPS
Video
  • Lens2
  • Resolution2 MP (video stream: 720P)
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Audio
  • Audio qualityNoise suppression and echo cancellation
Network
  • Wired networkSupport
Interface
  • Network interface1 RJ-45, 10/100 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851,RS-485 (Half duplex,HIKVISION）
  • Wiegand1,Wiegand （Hik 26bit,Hik 34bit）
  • USB1
Authentication
  • Card typeM1 card
General
  • Built-in access controllerSupport
  • Power supply12 VDC to 24 VDC, 2 A
  • Power consumption≤ 10 W
  • Working temperature-30 °C to 60 ℃ (-22 °F to 140 °F )
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Function
  • Hik-ConnectSupport
  • QR code recognitionSupport
  • Face anti-spoofingSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.3.15_240702
Applied to:
DS-K1T341CM
