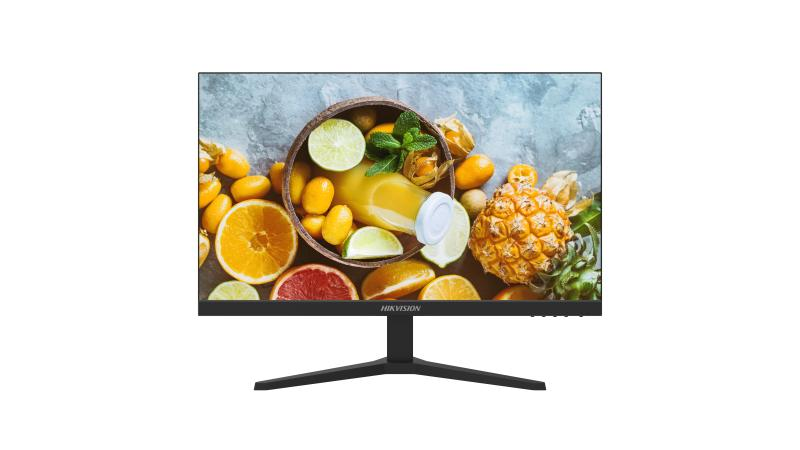

24 inch FHD VA Monitor

Ultra-thin device body with ultra-thin border for 3 sides.
8 bit LVDS HD (1920 × 1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.
Support VESA wall mount.

View Less

Data Sheet

Available models:

DS-D5024FN10(European standard)

DS-D5024FN10

EOL

Specification
Resources
Accessories

Data Sheet

Display
Screen Size23.8 inch
Active Display Area527.04 mm (H) × 296.46 mm (V)
Resolution1920 × 1080
BacklightE-LED
Pixel Pitch0.2745 (H) mm × 0.2745 (V) mm
Brightness250 cd/m²
Viewing Angle178° (H) / 178° (V)
Color Depth8 bit
Contrast Ratio4000 : 1
Response Time6.5 ms (typ)（G to G）OD 5ms
Refresh RateMax. 75Hz , Typ. 60 Hz
HazeAnti-Glare, 3H（Without Haze）
Reliability7 × 24 H
Color Gamut72% NTSC

Interface
Video & Audio InputHDMI 1.4 × 1, VGA × 1
Video & Audio OutputNone
Data Transmission InterfaceNone
Control InterfaceNone

Power
Power SupplyDC 12V , 2.5 A
Power Consumption≤ 30W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity20%~80% RH (Non-Condensing)
Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity20%~80% RH (Non-Condensing)

General
Casing MaterialPlastic
VESA100 mm × 100 mm (4-M4 × 10 mm)
Bezel Width1.8 mm (top/left/right), 21.4 mm (bottom)
Product Dimensions (W × H × D)538.40 (W) mm × 326.35 (H) mm × 37.50 (D) mm（without stand） 538.40 (W) mm × 407.10 (H) mm × 186.37 (D) mm（with stand）
Package Dimensions (W × H × D)600 (W) mm × 408 (H) mm × 94 (D) mm
Net Weight2.634 ± 0.5 kg
Gross Weight3.340 ± 0.5 kg
Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.5 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
