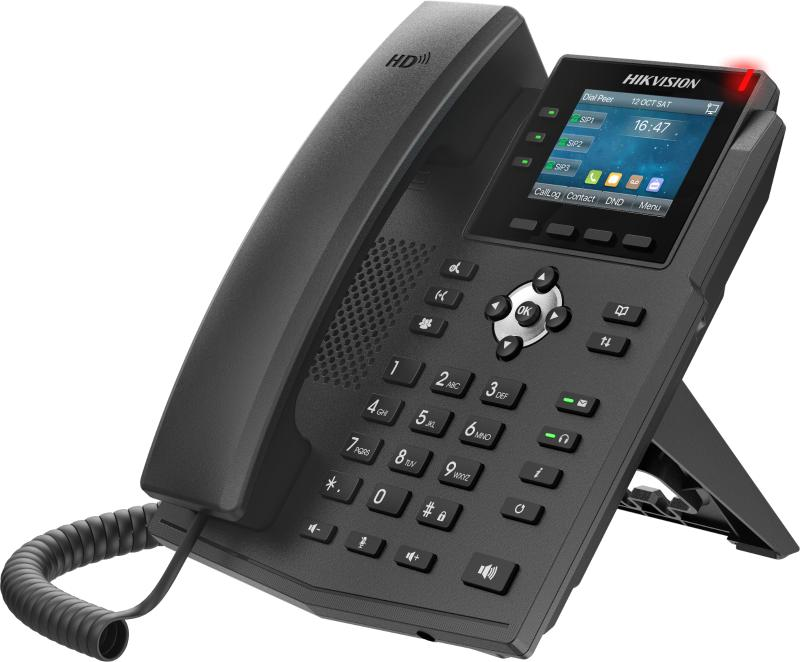

SIP Phone

  • HD audio on speakerphone and handset
  • 3 DSS keys on the 2.8”colorful display screen
  • Hardware video decoding (H.264, 1080P)
  • Dual 10M/100M Ethernet ports, standard PoE power supply
  • Built-in 2.4GHz Wi-Fi
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KP8000-WHE1
DS-KP8000-WHE1
Data Sheet

Specification

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM128 MB
  • RAM94 MB
  • CPUEmbedded processor
  • Display parameters
  • Screen size2.8-inch
  • Operation methodPhysical keys
  • TipologiaColorful screen
  • Resolution320 x 240
  • Video parameters
  • Video decodingH.264
  • Video decoding resolutionQVGA / CIF / VGA / 4CIF / 720P / 1080P
  • Audio parameters
  • Audio compression standardG.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio inputHD voice microphone; HAC handset
  • Audio outputHD voice speaker (handset/hands-free, 0 ~ 7 KHz frequency response)
  • Audio qualityVoice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustmentAdjustable
  • Capacity
  • Communication Lines6 SIP Lines
  • Contact capacityLocal phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries)
  • Call log capacityIn/Out/Missed, 600 entries
  • Network parameters
  • Communication protocolSIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network10/100 Mbps self-adaptive
  • Wi-Fi standardWi-Fi 802.11 b/g/n
  • Device interfaces
  • Network interface2 RJ-45 10/100 Mbps self-adaptive
  • Power supply inputDC power input
  • Communication interface2 RJ-9 ：handset x1, headset x1
  • General
  • Button37 Keys: 3 line keys (BLF keys) with LED indicator; 2 keys for with LED indicator, including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key
  • InstallationDesktop stand (angles 1: 45°): Wall-mounted
  • IndicatorRed status indicator light for call and message waiting
  • Working temperature0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity10% to 95% (no-condensing)
  • DimensionsDesktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; wall-mounted: 169 mm x 115.6 mm x 212.5 mm
  • Power supplyIEEE802.3af, Standard PoE,12 VDC
  • Application environmentIndoor
  • Power consumptionPower consumption (PoE): 1.78 W ~ 5.92 W; power consumption (adapter): 1.28 W ~ 4.31 W
  • LanguageEnglish, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Operating system
Embedded Linux operation system
ROM
128 MB
RAM
94 MB
CPU
Embedded processor
Display parameters
Screen size
2.8-inch
Operation method
Physical keys
Tipologia
Colorful screen
Resolution
320 x 240
Video parameters
Video decoding
H.264
Video decoding resolution
QVGA / CIF / VGA / 4CIF / 720P / 1080P
Audio parameters
Audio compression standard
G.711A/U, G.729AB, iLBC, G.722, Opus
Audio input
HD voice microphone; HAC handset
Audio output
HD voice speaker (handset/hands-free, 0 ~ 7 KHz frequency response)
Audio quality
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
Volume adjustment
Adjustable
Capacity
Communication Lines
6 SIP Lines
Contact capacity
Local phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries)
Call log capacity
In/Out/Missed, 600 entries
Network parameters
Communication protocol
SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Wired network
10/100 Mbps self-adaptive
Wi-Fi standard
Wi-Fi 802.11 b/g/n
Device interfaces
Network interface
2 RJ-45 10/100 Mbps self-adaptive
Power supply input
DC power input
Communication interface
2 RJ-9 ：handset x1, headset x1
General
Button
37 Keys: 3 line keys (BLF keys) with LED indicator; 2 keys for with LED indicator, including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key
Installation
Desktop stand (angles 1: 45°): Wall-mounted
Indicator
Red status indicator light for call and message waiting
Working temperature
0 °C to 45 °C (32 °F to 113 °F)
Working humidity
10% to 95% (no-condensing)
Dimensions
Desktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; wall-mounted: 169 mm x 115.6 mm x 212.5 mm
Power supply
IEEE802.3af, Standard PoE,12 VDC
Application environment
Indoor
Power consumption
Power consumption (PoE): 1.78 W ~ 5.92 W; power consumption (adapter): 1.28 W ~ 4.31 W
Language
English, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • Operating systemEmbedded Linux operation system
  • ROM128 MB
  • RAM94 MB
  • CPUEmbedded processor
Display parameters
  • Screen size2.8-inch
  • Operation methodPhysical keys
  • TipologiaColorful screen
  • Resolution320 x 240
Video parameters
  • Video decodingH.264
  • Video decoding resolutionQVGA / CIF / VGA / 4CIF / 720P / 1080P
Audio parameters
  • Audio compression standardG.711A/U, G.729AB, iLBC, G.722, Opus
  • Audio inputHD voice microphone; HAC handset
  • Audio outputHD voice speaker (handset/hands-free, 0 ~ 7 KHz frequency response)
  • Audio qualityVoice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Voice quality monitoring
  • Volume adjustmentAdjustable
Capacity
  • Communication Lines6 SIP Lines
  • Contact capacityLocal phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries)
  • Call log capacityIn/Out/Missed, 600 entries
Network parameters
  • Communication protocolSIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
  • Wired network10/100 Mbps self-adaptive
  • Wi-Fi standardWi-Fi 802.11 b/g/n
Device interfaces
  • Network interface2 RJ-45 10/100 Mbps self-adaptive
  • Power supply inputDC power input
  • Communication interface2 RJ-9 ：handset x1, headset x1
General
  • Button37 Keys: 3 line keys (BLF keys) with LED indicator; 2 keys for with LED indicator, including: MWI/handset 8 keys, including: Hold/Transfer/Conference/Contact/CallLog/Status/Redial/Mute 4 soft keys 4 navigation keys 1 OK key 12 standard phone digits keys 2 volume control keys (Up/Down) 1 hands-free key
  • InstallationDesktop stand (angles 1: 45°): Wall-mounted
  • IndicatorRed status indicator light for call and message waiting
  • Working temperature0 °C to 45 °C (32 °F to 113 °F)
  • Working humidity10% to 95% (no-condensing)
  • DimensionsDesktop stand (angles 1: 45°): 169 mm x 186.3 mm x 174.5 mm; desktop stand (angles 2: 50°): 169 mm x 177.6 mm x 183.7 mm; wall-mounted: 169 mm x 115.6 mm x 212.5 mm
  • Power supplyIEEE802.3af, Standard PoE,12 VDC
  • Application environmentIndoor
  • Power consumptionPower consumption (PoE): 1.78 W ~ 5.92 W; power consumption (adapter): 1.28 W ~ 4.31 W
  • LanguageEnglish, Simplified Chinese, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Basque, Galician, Turkish, Hungarian, Slovenian, Czech, Korean, Dutch, Ukrainian, Portuguese, Polish
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
