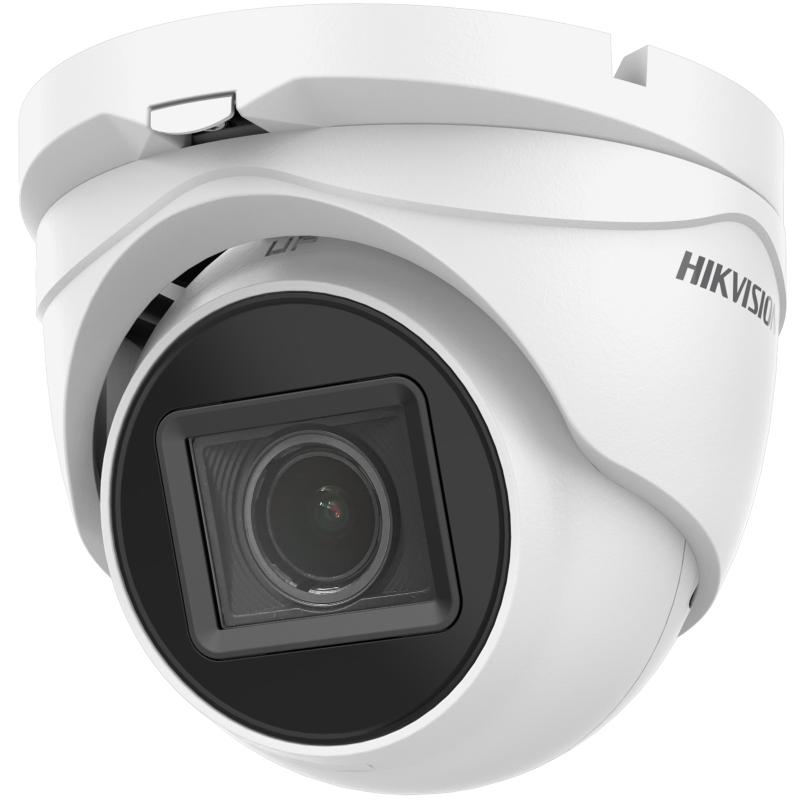

5 MP Motorized Varifocal Turret Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
View Less
View more

Available models:

DS-2CE79H0T-IT3ZF(2.7-13.5mm)(C)

Specification

  • Camera
  • Image Sensor5 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution2560 (H) × 1944 (V)
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens MountΦ14
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens
  • Lens Type2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOVhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • Illuminator
  • Supplement Light RangeIR: Up to 40 m
  • Image
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • White BalanceAuto/Manual
  • Image EnhancementDWDR,BLC,HLC,Global
  • Noise Reduction2D DNR
  • LanguageEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Power12 VDC±15%, Max 6.2 W *You are recommended to use one power adapter to supply the power for one camera.
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • MaterialMetal
  • CommunicationHIKVISION-C
  • Dimension123.87 mm × 110.24 mm × 134.3 mm (4.87" × 4.34" × 5.29")
  • WeightApprox. 555 g (1.22 lb.)
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor5 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution2560 (H) × 1944 (V)
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens MountΦ14
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
  • Lens Type2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOVhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Illuminator
  • Supplement Light RangeIR: Up to 40 m
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • White BalanceAuto/Manual
  • Image EnhancementDWDR,BLC,HLC,Global
  • Noise Reduction2D DNR
  • LanguageEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
