DS-2CE19D3T-IT3ZF

EOL

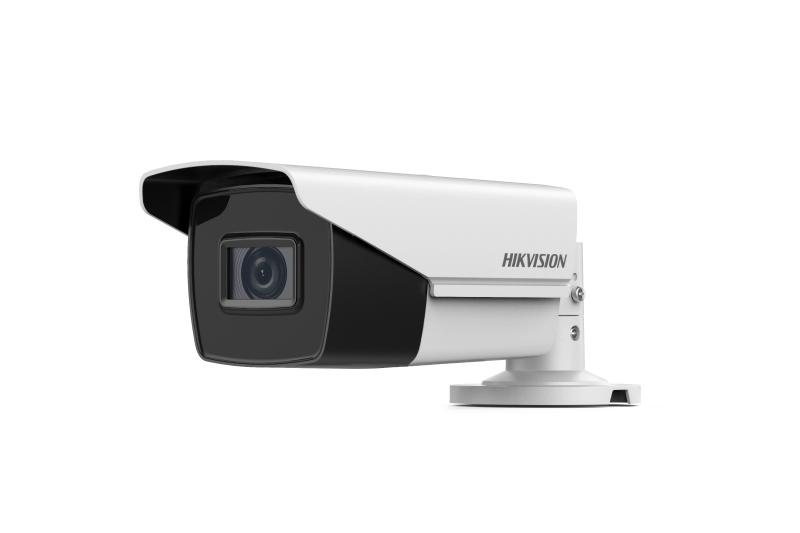

2 MP Ultra Low Light Motorized Varifocal Bullet Camera

  • 2 MP bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.005 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 70 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more
Sales Inquiry

Available models:

DS-2CE19D3T-IT3ZF(2.7-13.5mm)
DS-2CE19D3T-IT3ZF
EOL

Specification

  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) ×1080 (V)
  • Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.7 mm to 13.5 mm
  • Focal Length & FOV102° to 31°
  • Lens MountΦ 14
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥ 120 dB
  • Image EnhancementWDR/BLC/WDR;Yes
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Noise ReductionLevel 1 to 10
  • White BalanceATW/MWB
  • AGCHigh/Medium/Low
  • Interface
  • Video OutputTVI/AHD/CVI/CVBS
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • MaterialFront cover: Metal Main body: Plastic Bracket: Metal
  • Dimension84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
  • WeightApprox. 648 g (1.43 lb.) -A: Approx. 695 g (1.53 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 7.7 W -A: Max. 9.7 W
  • IR RangeUp to 70 m
  • Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
2.0 megapixel progressive scan CMOS
Max. Resolution
1920 (H) ×1080 (V)
Min. Illumination
0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.7 mm to 13.5 mm
Focal Length & FOV
102° to 31°
Lens Mount
Φ 14
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Frame Rate
PAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
≥ 120 dB
Image Enhancement
WDR/BLC/WDR;Yes
Privacy Mask
ON/OFF, 4 programmable privacy masks
Noise Reduction
Level 1 to 10
White Balance
ATW/MWB
AGC
High/Medium/Low
Interface
Video Output
TVI/AHD/CVI/CVBS
Event
Motion Detection
4 programmable motion areas
General
Material
Front cover: Metal Main body: Plastic Bracket: Metal
Dimension
84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
Weight
Approx. 648 g (1.43 lb.) -A: Approx. 695 g (1.53 lb.)
Operating Condition
‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
Up the coax, Protocol: HIKVISION-C (TVI output)
Language
English
Power Supply
12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 7.7 W -A: Max. 9.7 W
IR Range
Up to 70 m
Approval
Protection
IP67
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) ×1080 (V)
  • Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.7 mm to 13.5 mm
  • Focal Length & FOV102° to 31°
  • Lens MountΦ 14
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥ 120 dB
  • Image EnhancementWDR/BLC/WDR;Yes
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Noise ReductionLevel 1 to 10
  • White BalanceATW/MWB
  • AGCHigh/Medium/Low
Interface
  • Video OutputTVI/AHD/CVI/CVBS
Event
  • Motion Detection4 programmable motion areas
General
  • MaterialFront cover: Metal Main body: Plastic Bracket: Metal
  • Dimension84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
  • WeightApprox. 648 g (1.43 lb.) -A: Approx. 695 g (1.53 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 7.7 W -A: Max. 9.7 W
  • IR RangeUp to 70 m
Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
