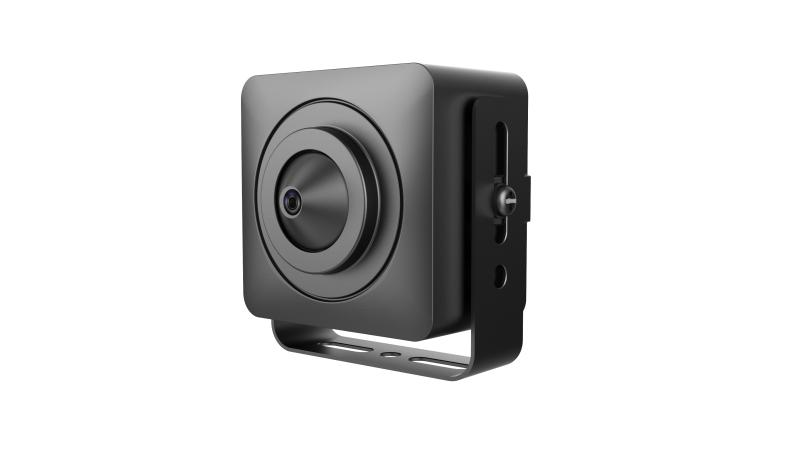

2 MP Ultra Low Light Indoor Fixed Covert Camera

2 MP high performance covert camera
Strong night performance, capturing images in ultra-low light down to 0.005 lux
Clear imaging even against strong back lighting due to 120 dB true WDR technology
3D DNR technology delivers clean and sharp images
Ideal for ATM machines

View Less

Data Sheet

Available models:

DS-2CS54D8T-PH(3.7mm)

DS-2CS54D8T-PH

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor2 MP progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightElectric
Signal SystemPAL/NTSC

Lens
Lens Type3.7 mm fixed focal lens
Focal Length & FOVHorizontal Field of View: 71.4°
Lens MountM12

Image SettingsAGC;Contrast;Brightness;Sharpness;Mirror
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥120 dB
Image EnhancementBLC
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output;1 CVBS output (75Ω/BNC)

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ±20%, max. 1.5 W
MaterialMetal
Dimension32.4 mm × 32.4 mm × 22.0 mm (1.28" × 1.28" × 0.87")
WeightApprox. 200 g (0.44 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish

Camera

Image Sensor

2 MP progressive scan CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON)

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

Electric

Signal System

PAL/NTSC

Lens

Lens Type

3.7 mm fixed focal lens

Focal Length & FOV

Horizontal Field of View: 71.4°

Lens Mount

M12


Image Settings

AGC;Contrast;Brightness;Sharpness;Mirror

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥120 dB

Image Enhancement

BLC

Privacy Mask

4 programmable privacy masks

Noise Reduction

3D DNR

White Balance

Auto/Manual

Interface

Video Output

1 HD analog output;1 CVBS output (75Ω/BNC)

Event

Motion Detection

4 programmable motion areas

General

Power

12 VDC ±20%, max. 1.5 W

Material

Metal

Dimension

32.4 mm × 32.4 mm × 22.0 mm (1.28" × 1.28" × 0.87")

Weight

Approx. 200 g (0.44 lb.)

Operating Condition

-40° C to 60° C (-40° F to 140° F), humidity 90% or less (no condensation)

Communication

HIKVISION-C

Language

English
