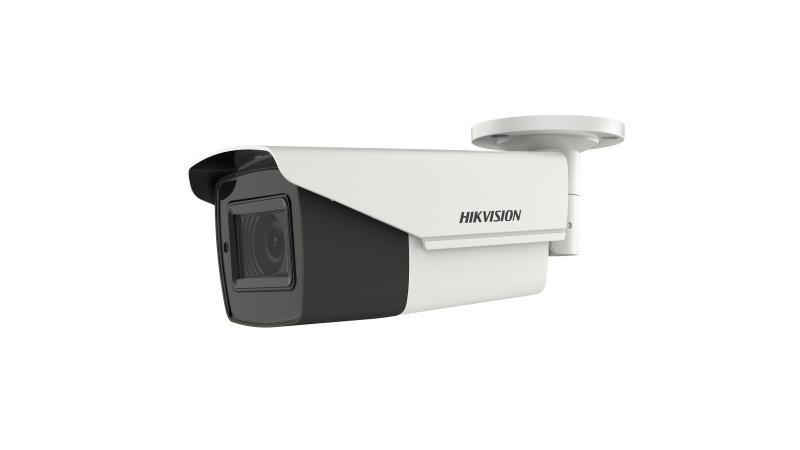

4K Ultra Low Light Motorized Varifocal Bullet Camera

8 MP high performance bullet camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0, advanced infrared technology with 80 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Data Sheet

Available models:

DS-2CE19U7T-AIT3ZF(2.7-13.5mm)

DS-2CE19U7T-AIT3ZF

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.003 Lux @ (F2.4, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV108.1° to 45.6°
Lens MountΦ14

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 80 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC;WDR
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.8W
MaterialMetal
Dimension84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
WeightApprox. 925 g (2.04 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C

Approval
ProtectionIP67

Camera

Image Sensor

8.29 megapixel progressive scan CMOS

Max. Resolution

3840 (H) × 2160 (V)

Min. Illumination

Color: 0.003 Lux @ (F2.4, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.7 mm to 13.5 mm motorized varifocal lens

Focal Length & FOV

108.1° to 45.6°

Lens Mount

Φ14

Illuminator

Supplement Light Type

Supplement Light Range

Up to 80 m

Smart Supplement Light

Yes


Image Settings

Brightness;Sharpness;Mirror;Smart IR;AGC

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥130 dB

Image Enhancement

BLC;WDR

Noise Reduction

3D DNR

White Balance

Auto/Manual

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General

Power

9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.8W

Material

Metal

Dimension

84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")

Weight

Approx. 925 g (2.04 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Approval

Protection

IP67
