EOL

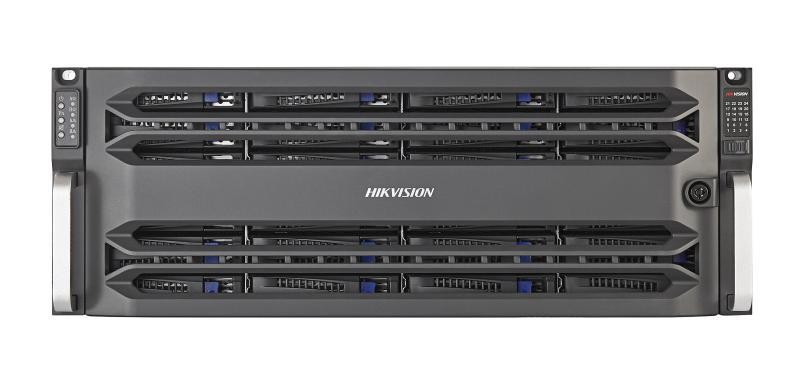

24-slot Storage with 24 pcs 10TB SAS IOT HDD

  • Dual controller and real-time cache, optional BBU (Backup Battery Unit), one multi-core processor, 8 GB cache extendable to 32 GB per controller
  • High-performance, extendable hardware platform
  • HDD detection and repair/RAID optimization
  • Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
  • Advanced data protection (synchronous backup of key information in system disks)
  • Energy efficient and user-friendly UI
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-A82024D/240
DS-A82024D/240
EOL
Data Sheet

Specification

  • Hardware
  • StructureDual controller
  • Processor64-bit multi-core processor
  • Cache8 GB (extendable to 32 GB)/controller
  • Storage Management
  • Disk managementDisk inspection, alarm and repair
  • Logical volume managementiSCSI volume, video volume management
  • Recording Management
  • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
  • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
  • Searching modeSearch by time and event
  • Downloading modeQuick download, batch download, download by segment, download by merging
  • Network
  • ProtocoliSCSI;RTSP;ONVIF;PSIA
  • Device Maintenance
  • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
  • Alarm modeSound, light, email, message, web page
  • Log downloadingDownload no web page
  • Storage
  • HDD slot24
  • Interface/capacitySSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
  • Hot-swappingSupported
  • HDD supportSingle, RAID(Enterprise Hard Disk)
  • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
  • Performance
  • Direct streaming mode: video (2 Mbps) + picture448-ch recording + playback
  • IPSAN mode256-ch recording + playback
  • Video performance448
  • Picture performance448
  • General
  • Power supplyRedundant
  • Chassis4U (19-inch height)
  • Consumption (with HDDs)Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W
  • Environment temperatureWorking: +5 °C to +35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to 158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimension (W × H × D)447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
  • Weight (without HDDs)≤33.5kg (73.9 lb)
  • External interface
  • USB3
  • Data network interface4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)/Controller
  • MiniSAS interfaceSupported
  • Management network interface1, 1000M Ethernet interface
  • HDD
  • HDD ModelSeagate,ST10000NM018B,10T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware
Structure
Dual controller
Processor
64-bit multi-core processor
Cache
8 GB (extendable to 32 GB)/controller
Storage Management
Disk management
Disk inspection, alarm and repair
Logical volume management
iSCSI volume, video volume management
Recording Management
Recording mode
Timing recording, manual recording, dual-stream recording, alarm recording
Video protection
Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode
Search by time and event
Downloading mode
Quick download, batch download, download by segment, download by merging
Network
Protocol
iSCSI;RTSP;ONVIF;PSIA
Device Maintenance
Management mode
Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode
Sound, light, email, message, web page
Log downloading
Download no web page
Storage
HDD slot
24
Interface/capacity
SSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping
Supported
HDD support
Single, RAID(Enterprise Hard Disk)
RAID
RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
Performance
Direct streaming mode: video (2 Mbps) + picture
448-ch recording + playback
IPSAN mode
256-ch recording + playback
Video performance
448
Picture performance
448
General
Power supply
Redundant
Chassis
4U (19-inch height)
Consumption (with HDDs)
Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W
Environment temperature
Working: +5 °C to +35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to 158 °F)
Environment humidity
Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
Dimension (W × H × D)
447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
Weight (without HDDs)
≤33.5kg (73.9 lb)
External interface
USB
3
Data network interface
4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)/Controller
MiniSAS interface
Supported
Management network interface
1, 1000M Ethernet interface
HDD
HDD Model
Seagate,ST10000NM018B,10T;
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Hardware
  • StructureDual controller
  • Processor64-bit multi-core processor
  • Cache8 GB (extendable to 32 GB)/controller
Storage Management
  • Disk managementDisk inspection, alarm and repair
  • Logical volume managementiSCSI volume, video volume management
Recording Management
  • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
  • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
  • Searching modeSearch by time and event
  • Downloading modeQuick download, batch download, download by segment, download by merging
Network
  • ProtocoliSCSI;RTSP;ONVIF;PSIA
Device Maintenance
  • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
  • Alarm modeSound, light, email, message, web page
  • Log downloadingDownload no web page
Storage
  • HDD slot24
  • Interface/capacitySSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
  • Hot-swappingSupported
  • HDD supportSingle, RAID(Enterprise Hard Disk)
  • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
Performance
  • Direct streaming mode: video (2 Mbps) + picture448-ch recording + playback
  • IPSAN mode256-ch recording + playback
  • Video performance448
  • Picture performance448
General
  • Power supplyRedundant
  • Chassis4U (19-inch height)
  • Consumption (with HDDs)Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W
  • Environment temperatureWorking: +5 °C to +35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to 158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimension (W × H × D)447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
  • Weight (without HDDs)≤33.5kg (73.9 lb)
External interface
  • USB3
  • Data network interface4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)/Controller
  • MiniSAS interfaceSupported
  • Management network interface1, 1000M Ethernet interface
HDD
  • HDD ModelSeagate,ST10000NM018B,10T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
