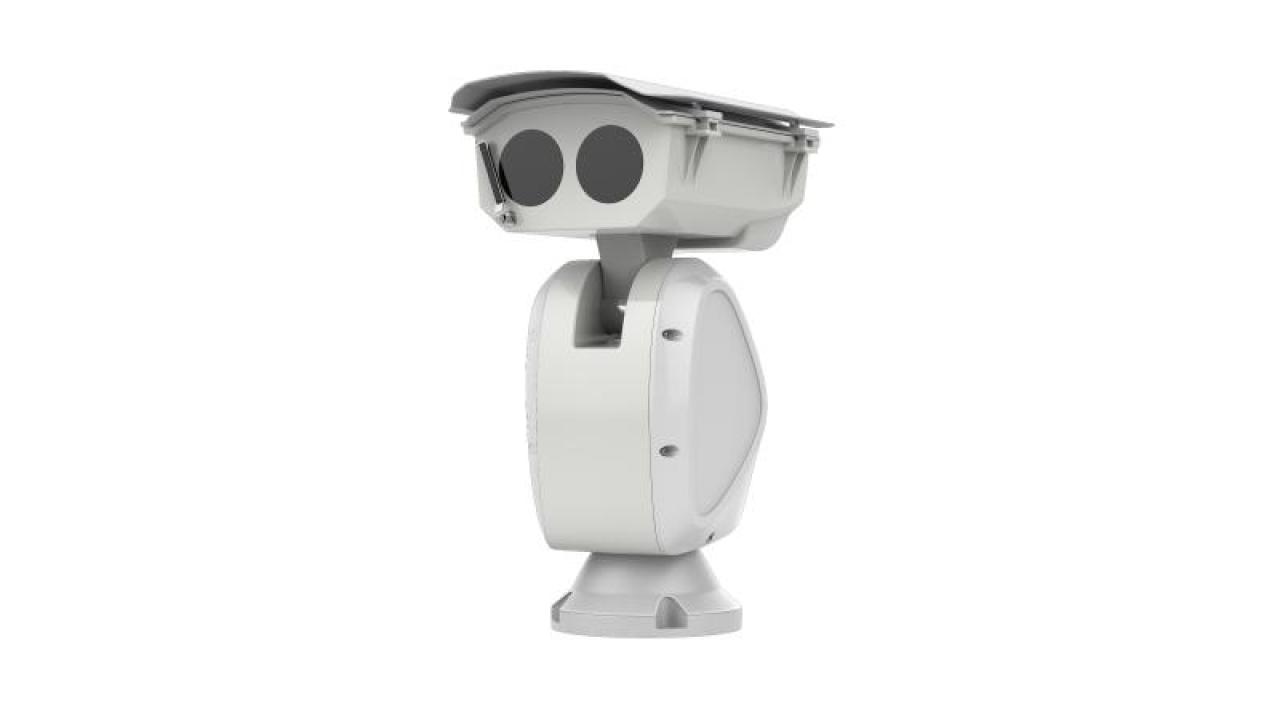

9-inch 2 MP 50X Powered by Powered by DarkFighter Laser Network Positioning System

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • 50x optical zoom provides close up views over expansive areas
  • Expansive night view with 1000 meter laser IR
  • Water and dust resistant (IP66)
View Less
View more

Available models:

DS-2DY9250IAX-A(D)

Specification

  • Lens
  • FOVHorizontal field of view: 43.4° to 1.2° (wide-tele)Vertical field of view: 25.2° to 0.6° (wide-tele)Diagonal field of view: 49.1° to 1.3° (wide-tele)
  • Zoom SpeedApprox. 4.5 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.8 to F5.5
  • Focal Length6.6 mm to 330 mm, 50× Optical
  • Image
  • Image EnhancementHLC/BLC/3D DNR/Defog/OIS/Regional Exposure/Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-5200
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
  • Alarm Output2-ch alarm output
  • Alarm Input7-ch alarm input
  • Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
  • Audio Output1-ch audio output, line level, impedance: 600 Ω
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 kbps to 16384 kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • SVCSupport
  • Camera Module
  • AGCAuto/Manual
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.8, AGC ON),B/W: 0.001 Lux @(F1.8, AGC ON),0 Lux with laser
  • White BalanceAuto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • Laser Distance1000 m
  • Smart IRSupport
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 50°/s
  • Movement Range (Tilt)From -90° to 40° (auto-flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Smart Features
  • Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Audio Exception Detection, Region Entrance Detection, Region Exiting Detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream and third stream respectively support eight fixed areas.
  • General
  • MaterialAluminum alloy ADC12
  • Dimensions256 mm × 334 mm × 505 mm (10.1" × 13.1" × 19.9")
  • WeightApprox. 17 kg (37.5 lb)
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power24 VAC. Max. 110 W, including max. 30 W for laser and max. 34.8 W for heater
  • Working TemperatureTemperature: -40°C to 70°C (-40°F to 158°F)
  • Working HumidityHumidity: ≤ 90%

Specification

Specification
Lens
  • FOVHorizontal field of view: 43.4° to 1.2° (wide-tele)Vertical field of view: 25.2° to 0.6° (wide-tele)Diagonal field of view: 49.1° to 1.3° (wide-tele)
  • Zoom SpeedApprox. 4.5 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.8 to F5.5
  • Focal Length6.6 mm to 330 mm, 50× Optical
  • Image EnhancementHLC/BLC/3D DNR/Defog/OIS/Regional Exposure/Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-5200
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Interface
  • BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
  • Alarm Output2-ch alarm output
  • Alarm Input7-ch alarm input
  • Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
  • Audio Output1-ch audio output, line level, impedance: 600 Ω
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 kbps to 16384 kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • SVCSupport
Camera Module
  • AGCAuto/Manual
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.8, AGC ON),B/W: 0.001 Lux @(F1.8, AGC ON),0 Lux with laser
  • White BalanceAuto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
Supplement Light
  • Laser Distance1000 m
  • Smart IRSupport
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 50°/s
  • Movement Range (Tilt)From -90° to 40° (auto-flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features
  • Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Audio Exception Detection, Region Entrance Detection, Region Exiting Detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream and third stream respectively support eight fixed areas.
General
  • MaterialAluminum alloy ADC12
  • Dimensions256 mm × 334 mm × 505 mm (10.1" × 13.1" × 19.9")
  • WeightApprox. 17 kg (37.5 lb)
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power24 VAC. Max. 110 W, including max. 30 W for laser and max. 34.8 W for heater
  • Working TemperatureTemperature: -40°C to 70°C (-40°F to 158°F)
  • Working HumidityHumidity: ≤ 90%
