*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

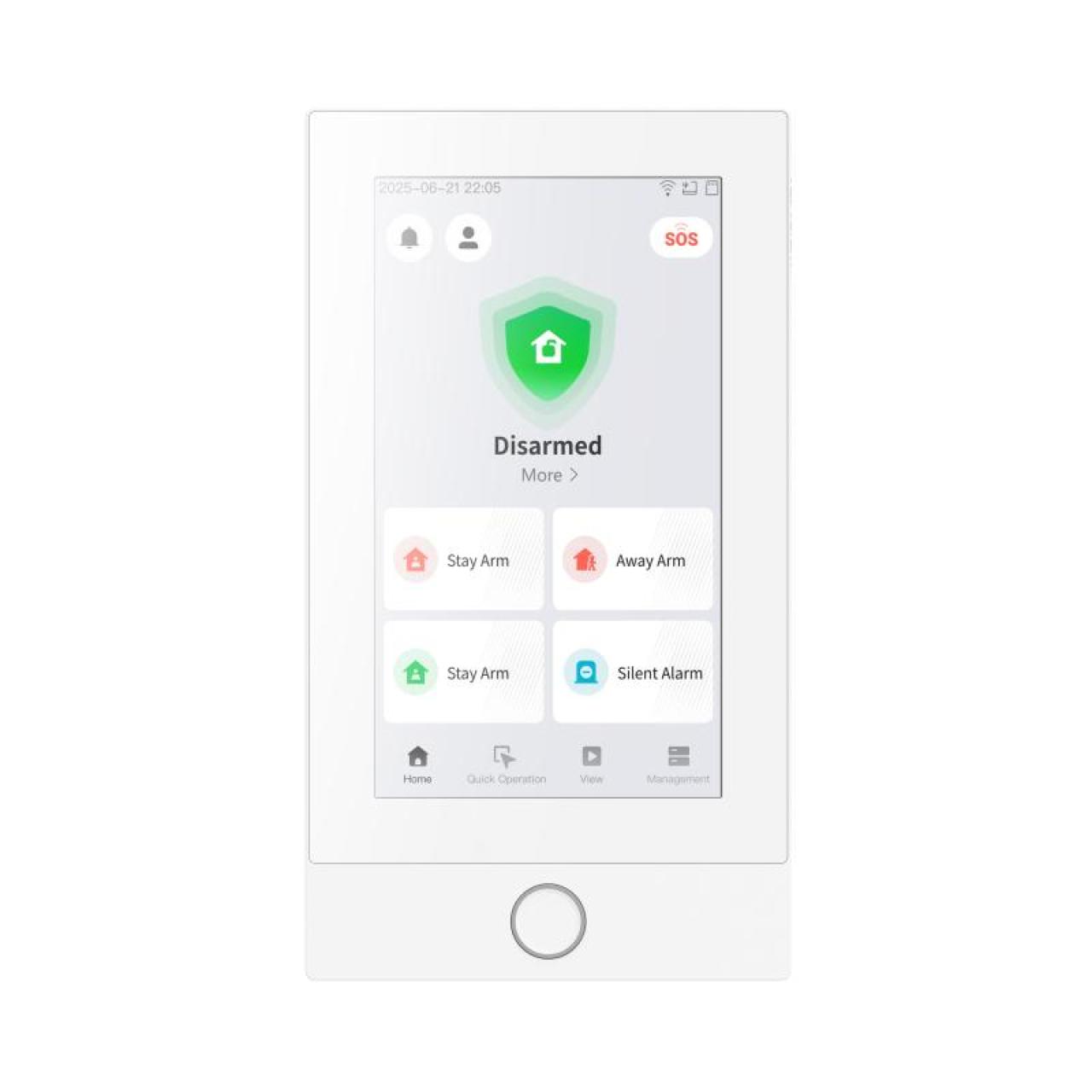

Touchscreen Keypad

  • 7-inch LCD touch screen with intuitive interface for clear display and easy system control.
  • Supports LAN, Wi-Fi, and bus connectivity for flexible installation.
  • Supports live camera preview via Wi-Fi or LAN.
  • Supports event review with verification video storage with TF card.
  • Shortcut keys for quick operation and flexible relay or area control.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PK670W/White
View more View Less
DS-PK670W NEW
Data Sheet

Specification

  • Event logs
  • Event log records 200
  • User interface
  • Display 7" Colorful LCD with resolution 600*1024
  • Indication 1 indicator(Yellow\Green\Red)
  • Key button 1
  • Authentication
  • PIN 4~6 digits
  • Bus interconnection
  • Bus technology Half-Duplex RS-485
  • Bus wiring 4-Core Alarm Cable (at least 2x0.5mm2+2x0.22mm2)
  • Communication interfaces
  • LAN/Ethernet Supported,10/100 Mbps self-adaptive
  • Wi-Fi Supported,802.11b/g/n (2.4GHz)
  • Power supply - general
  • Quiescent current 270mA@12VDC
  • Input voltage 12 VDC nominal (9~24 VDC),powered by bus
  • Max. current 400mA@12VDC
  • Relay output
  • Relay output 1,1A 30VDC
  • Environmental
  • Operating temperature -10°C to 50°C
  • Storage temperature -10°C to 50°C
  • Relative humidity 10%-90% non-condensing
  • Physical
  • Dimension (W × H × D) 122mmx218.7mmx27mm
  • 400g
  • Installation method Wall mounting
  • Tamper-proof Front and Rear
  • Compliance
  • Electrical conformity CE,CB
  • EN 50131 Security Grade 2,Encironmental Class II
  • Indication
  • LED indication Supported
  • Hardware features
  • SD card FAT32 up to 128G
  • Loudspeaker Supported
  • Mic Reserved
  • Debug port 2
  • General
  • Application scenario Indoor
  • Shell material Plastic
  • Color White or Black
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Event logs
Event log records
200
User interface
Display
7" Colorful LCD with resolution 600*1024
Indication
1 indicator(Yellow\Green\Red)
Key button
1
Authentication
PIN
4~6 digits
Bus interconnection
Bus technology
Half-Duplex RS-485
Bus wiring
4-Core Alarm Cable (at least 2x0.5mm2+2x0.22mm2)
Communication interfaces
LAN/Ethernet
Supported,10/100 Mbps self-adaptive
Wi-Fi
Supported,802.11b/g/n (2.4GHz)
Power supply - general
Quiescent current
270mA@12VDC
Input voltage
12 VDC nominal (9~24 VDC),powered by bus
Max. current
400mA@12VDC
Relay output
Relay output
1,1A 30VDC
Environmental
Operating temperature
-10°C to 50°C
Storage temperature
-10°C to 50°C
Relative humidity
10%-90% non-condensing
Physical
Dimension (W × H × D)
122mmx218.7mmx27mm
400g
Installation method
Wall mounting
Tamper-proof
Front and Rear
Compliance
Electrical conformity
CE,CB
EN 50131
Security Grade 2,Encironmental Class II
Indication
LED indication
Supported
Hardware features
SD card
FAT32 up to 128G
Loudspeaker
Supported
Mic
Reserved
Debug port
2
General
Application scenario
Indoor
Shell material
Plastic
Color
White or Black
For better user experience, we highly recommend you to update your device to the latest firmware asap.
