EOL

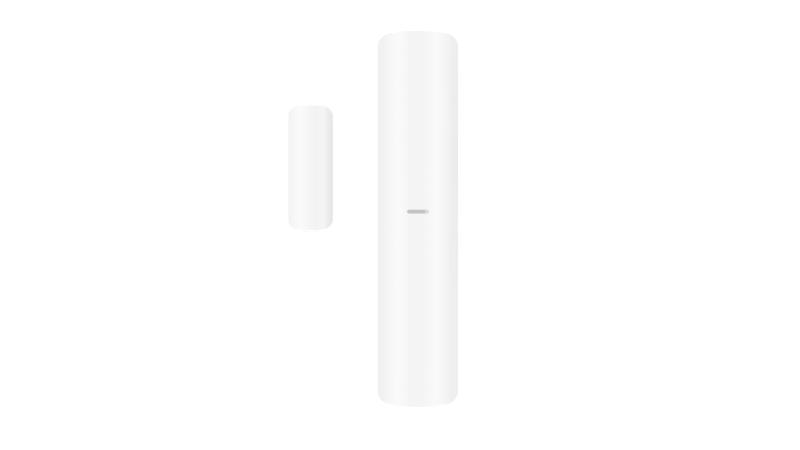

Wireless Magnet Shock Detector

  • Magnetic contact combined with shock and tilt detection
  • 2 wired inputs extension
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PDMCK-EG2-WE
DS-PDMCK-EG2-WE
EOL
Data Sheet

Specification

  • Detection Performance
  • Detection MethodOpening Contact;Shock Sensor
  • Detection Gap43 mm Max
  • SensitivityShock detection: High, normal, low Tilt detection: Up to 25°
  • Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • Alarm InputNormally Closed;Normally Open;Impulse Count
  • Power SwitchPower up enrolling
  • LED IndicatorGreen(MC), Orange(tilt), Red(shock), Blue(alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 3 years (standby time)
  • Power SupplyBattery powered
  • Battery TypeCR123A x 1
  • Typical Voltage3V
  • General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)22.5 mm × 103 mm × 23.2 mm 13 mm × 34.4 mm × 11.4 mm
  • Weight60g
  • Application ScenarioIndoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Opening Contact;Shock Sensor
Detection Gap
43 mm Max
Sensitivity
Shock detection: High, normal, low Tilt detection: Up to 25°
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up enrolling
LED Indicator
Green(MC), Orange(tilt), Red(shock), Blue(alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 3 years (standby time)
Power Supply
Battery powered
Battery Type
CR123A x 1
Typical Voltage
3V
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
22.5 mm × 103 mm × 23.2 mm 13 mm × 34.4 mm × 11.4 mm
Weight
60g
Application Scenario
Indoor
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection Performance
  • Detection MethodOpening Contact;Shock Sensor
  • Detection Gap43 mm Max
  • SensitivityShock detection: High, normal, low Tilt detection: Up to 25°
Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
Interface
  • Alarm InputNormally Closed;Normally Open;Impulse Count
  • Power SwitchPower up enrolling
  • LED IndicatorGreen(MC), Orange(tilt), Red(shock), Blue(alarm)
Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
  • Standard Battery LifeUp to 3 years (standby time)
  • Power SupplyBattery powered
  • Battery TypeCR123A x 1
  • Typical Voltage3V
General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)22.5 mm × 103 mm × 23.2 mm 13 mm × 34.4 mm × 11.4 mm
  • Weight60g
  • Application ScenarioIndoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
