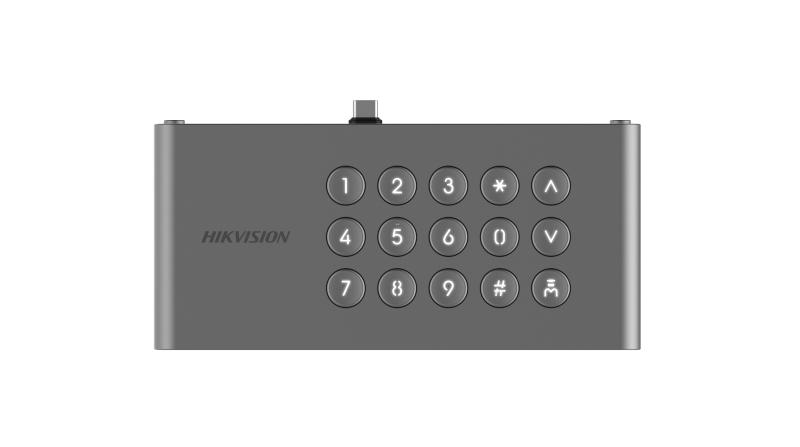

DS-KDM9633-KP


    Keypad module of KD9633

    • Keypad module for KD9633 series door station
    • Backlight compensation behind the keypad
    • IP65 & IK07 high protection level
    • Easy to use and extend
    View Less
    View more

    Available models:

    DS-KDM9633-KP

    Specification

    • Display parameters
    • Operation method/
    • Video parameters
    • Wide dynamic range (WDR)/
    • Supplement light/
    • Audio parameters
    • Audio input/
    • Capacity
    • Fingerprint capacity/
    • Device interfaces
    • RS-485/
    • USB1 USB type-C, only connect to KD9633
    • General
    • Button15 physical buttons
    • InstallationSurface mounting and flush mounting
    • WeightNet weight: 0.335 kg Gross weight: 1.637 kg
    • Protective levelIP65 and IK07
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10% to 90% (no-condensing)
    • Dimension (W × H × D)74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")
    • Power supply5 VDC, 0.5 A
    • Application environmentOutdoor
    • MaterialAluminum alloy and plastic
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Display parameters
    Operation method
    /
    Video parameters
    Wide dynamic range (WDR)
    /
    Supplement light
    /
    Audio parameters
    Audio input
    /
    Capacity
    Fingerprint capacity
    /
    Device interfaces
    RS-485
    /
    USB
    1 USB type-C, only connect to KD9633
    General
    Button
    15 physical buttons
    Installation
    Surface mounting and flush mounting
    Weight
    Net weight: 0.335 kg Gross weight: 1.637 kg
    Protective level
    IP65 and IK07
    Working temperature
    -30 °C to 60 °C (-22 °F to 140 °F)
    Working humidity
    10% to 90% (no-condensing)
    Dimension (W × H × D)
    74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")
    Power supply
    5 VDC, 0.5 A
    Application environment
    Outdoor
    Material
    Aluminum alloy and plastic
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Display parameters
    • Operation method/
    Video parameters
    • Wide dynamic range (WDR)/
    • Supplement light/
    Audio parameters
    • Audio input/
    Capacity
    • Fingerprint capacity/
    Device interfaces
    • RS-485/
    • USB1 USB type-C, only connect to KD9633
    General
    • Button15 physical buttons
    • InstallationSurface mounting and flush mounting
    • WeightNet weight: 0.335 kg Gross weight: 1.637 kg
    • Protective levelIP65 and IK07
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10% to 90% (no-condensing)
    • Dimension (W × H × D)74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")
    • Power supply5 VDC, 0.5 A
    • Application environmentOutdoor
    • MaterialAluminum alloy and plastic
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
