NEW

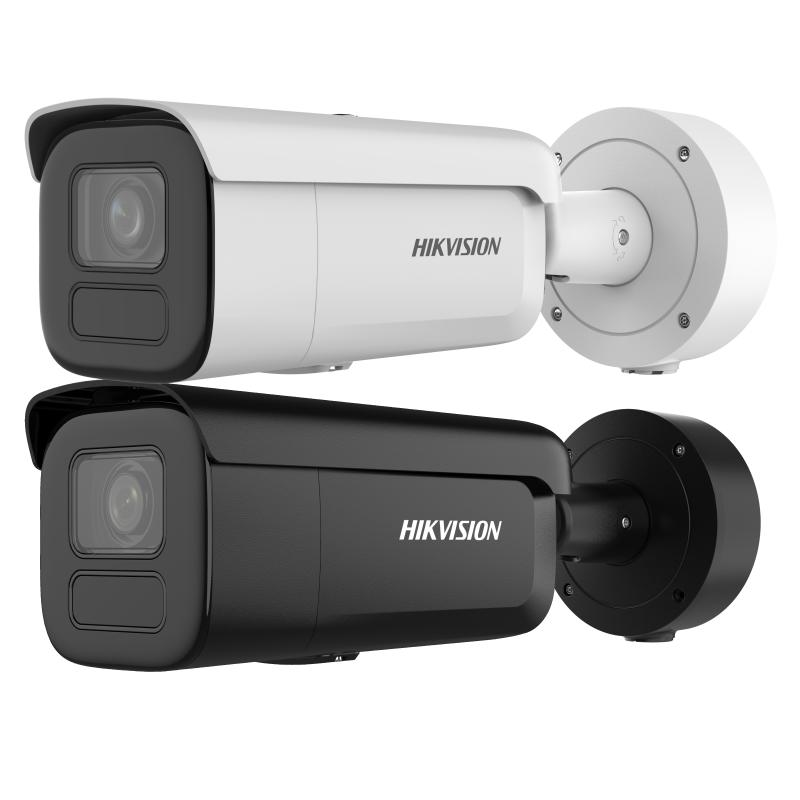

6 MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera

High quality imaging with 6 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal resistant (IK10)

View Less

Available models:

DS-2CD2666G2H-IZS(2.8-12mm)(eF)

DS-2CD2666G2H-IZS(2.8-12mm)eF/O-STDBLACK

DS-2CD2666G2H-IZS ^NEW

Specification
Resources
Accessories

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens MountIntegrated
Iris TypeFixed
ApertureF1.2
Depth of Field1 m to ∞

DORI
DORIWide: D: 74.3m, O: 29.5 m, R: 14.9 m, I: 7.4 m Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Smart EventScene change detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Face CaptureYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
Power 12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
MaterialFront cover: Metal, body: Metal, bracket: Metal
DimensionØ140 mm × 333.8 mm (Ø5.5" × 13.1")
Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
WeightApprox. 1520 g (3.4 lb.)
With Package WeightApprox. 2530 g (5.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3200 × 1800

Min. Illumination

Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°

Lens Mount

Integrated

Iris Type

Fixed

Aperture

F1.2

Depth of Field

1 m to ∞

DORI

Wide: D: 74.3m, O: 29.5 m, R: 14.9 m, I: 7.4 m Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 60 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),exception

Smart Event

Scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W

Material

Front cover: Metal, body: Metal, bracket: Metal

Dimension

Ø140 mm × 333.8 mm (Ø5.5" × 13.1")

Package Dimension

385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")

Weight

Approx. 1520 g (3.4 lb.)

With Package Weight

Approx. 2530 g (5.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Camera

Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens MountIntegrated
Iris TypeFixed
ApertureF1.2
Depth of Field1 m to ∞

DORI

DORIWide: D: 74.3m, O: 29.5 m, R: 14.9 m, I: 7.4 m Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Illuminator

Supplement Light TypeIR
Supplement Light RangeUp to 60 m
Smart Supplement LightYes
IR Wavelength850 nm

Video

Main Stream50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Smart EventScene change detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

Face CaptureYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power 12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
MaterialFront cover: Metal, body: Metal, bracket: Metal
DimensionØ140 mm × 333.8 mm (Ø5.5" × 13.1")
Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
WeightApprox. 1520 g (3.4 lb.)
With Package WeightApprox. 2530 g (5.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
