DS-PDPC12P-EG2-WE

    EOL

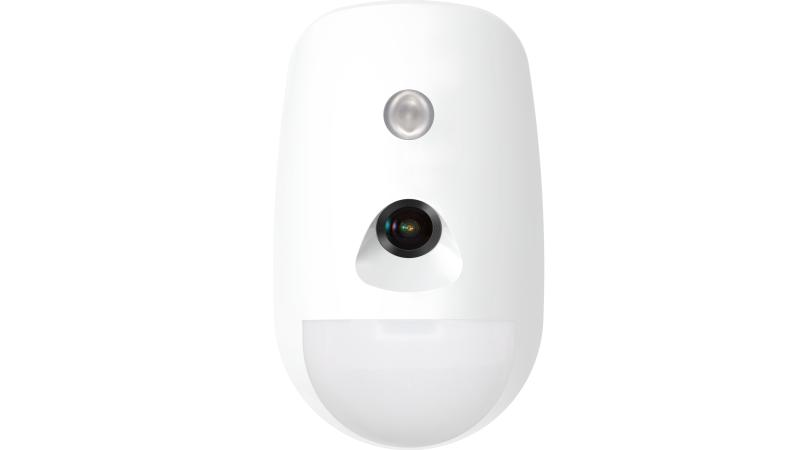

    Wireless PIR-CAM Detector

    • Detection range: 12m/85.9°
    • Up to 30 kg pet immunity
    • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
    • Polarizing IR lens design for more uniform night illumination and excellent night shots
    • Large integrated memory buffer for image storage
    • Fully remote configurable through APP
    • Multiple enrollment method and easy installation design
    • Easy replaceable battery with PCB protected
    View Less
    View more

    Available models:

    DS-PDPC12P-EG2-WE

    Specification

    • Detection Performance
    • Detection MethodPassive Infrared;Video Verification
    • Detection Range12m
    • Detection Angle85.9°
    • Detection Zones52
    • Detectable Speed0.3～2m/s
    • SensitivityHigh;Auto;Pet
    • Pet Immunity30Kg
    • White Light Filter6500lux
    • Digital Temperature CompensationSupport
    • Creep Zone ProtectionSupport
    • Feature
    • Digital ProcessingSupport
    • Sealed OpticsSupport
    • Tamper ProtectionFront;Rear
    • Environment Temperature IndicatorSupport
    • Signal Strength IndicatorSupport
    • Video
    • Field Angle88°(H), 68°(V)
    • Image TypeJPEG
    • Resolusion160*120;320*240;640*480
    • Fill LightInfrared Light
    • Fill Range12m
    • Day/Night SwitchColor/Black & White
    • Interface
    • Power SwitchPower Up Enrolling
    • LED IndicatorBlue (Alarm)
    • Transmission
    • Transmission TechnologyCAM-X Wireless
    • Transmission MethodTwo-Way RF Wireless
    • Transmission Frequency868MHz
    • Transmission SecurityAES-128 Encryption
    • Transmission Range(Free Space)800m
    • Enrolling MethodPower up;Remote ID;QR Code
    • Electrical Characteristics
    • Standard Battery LifeUp to 6 years (standby time)
    • Power SupplyBattery powered
    • Battery TypeCR123A × 3
    • Typical Voltage3V
    • General
    • Operation Temperature-10°C to 55°C (14°F to 131°F)
    • Storage Temperature-20°C to 60°C (-4°F to 140°F)
    • Operation Humidity10% to 90%
    • Dimension(WxHxD)72.2 mm × 120.5 mm × 56.7 mm
    • Weight210 g
    • Mounting Height1.8 m to 2.4 m
    • Mounting MethodWall
    • Application ScenarioIndoor
    • BracketOptional Wall & Ceiling Accessory
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Detection Performance
    Detection Method
    Passive Infrared;Video Verification
    Detection Range
    12m
    Detection Angle
    85.9°
    Detection Zones
    52
    Detectable Speed
    0.3～2m/s
    Sensitivity
    High;Auto;Pet
    Pet Immunity
    30Kg
    White Light Filter
    6500lux
    Digital Temperature Compensation
    Support
    Creep Zone Protection
    Support
    Feature
    Digital Processing
    Support
    Sealed Optics
    Support
    Tamper Protection
    Front;Rear
    Environment Temperature Indicator
    Support
    Signal Strength Indicator
    Support
    Video
    Field Angle
    88°(H), 68°(V)
    Image Type
    JPEG
    Resolusion
    160*120;320*240;640*480
    Fill Light
    Infrared Light
    Fill Range
    12m
    Day/Night Switch
    Color/Black & White
    Interface
    Power Switch
    Power Up Enrolling
    LED Indicator
    Blue (Alarm)
    Transmission
    Transmission Technology
    CAM-X Wireless
    Transmission Method
    Two-Way RF Wireless
    Transmission Frequency
    868MHz
    Transmission Security
    AES-128 Encryption
    Transmission Range(Free Space)
    800m
    Enrolling Method
    Power up;Remote ID;QR Code
    Electrical Characteristics
    Standard Battery Life
    Up to 6 years (standby time)
    Power Supply
    Battery powered
    Battery Type
    CR123A × 3
    Typical Voltage
    3V
    General
    Operation Temperature
    -10°C to 55°C (14°F to 131°F)
    Storage Temperature
    -20°C to 60°C (-4°F to 140°F)
    Operation Humidity
    10% to 90%
    Dimension(WxHxD)
    72.2 mm × 120.5 mm × 56.7 mm
    Weight
    210 g
    Mounting Height
    1.8 m to 2.4 m
    Mounting Method
    Wall
    Application Scenario
    Indoor
    Bracket
    Optional Wall & Ceiling Accessory
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Detection Performance
    • Detection MethodPassive Infrared;Video Verification
    • Detection Range12m
    • Detection Angle85.9°
    • Detection Zones52
    • Detectable Speed0.3～2m/s
    • SensitivityHigh;Auto;Pet
    • Pet Immunity30Kg
    • White Light Filter6500lux
    • Digital Temperature CompensationSupport
    • Creep Zone ProtectionSupport
    Feature
    • Digital ProcessingSupport
    • Sealed OpticsSupport
    • Tamper ProtectionFront;Rear
    • Environment Temperature IndicatorSupport
    • Signal Strength IndicatorSupport
    Video
    • Field Angle88°(H), 68°(V)
    • Image TypeJPEG
    • Resolusion160*120;320*240;640*480
    • Fill LightInfrared Light
    • Fill Range12m
    • Day/Night SwitchColor/Black & White
    Interface
    • Power SwitchPower Up Enrolling
    • LED IndicatorBlue (Alarm)
    Transmission
    • Transmission TechnologyCAM-X Wireless
    • Transmission MethodTwo-Way RF Wireless
    • Transmission Frequency868MHz
    • Transmission SecurityAES-128 Encryption
    • Transmission Range(Free Space)800m
    • Enrolling MethodPower up;Remote ID;QR Code
    Electrical Characteristics
    • Standard Battery LifeUp to 6 years (standby time)
    • Power SupplyBattery powered
    • Battery TypeCR123A × 3
    • Typical Voltage3V
    General
    • Operation Temperature-10°C to 55°C (14°F to 131°F)
    • Storage Temperature-20°C to 60°C (-4°F to 140°F)
    • Operation Humidity10% to 90%
    • Dimension(WxHxD)72.2 mm × 120.5 mm × 56.7 mm
    • Weight210 g
    • Mounting Height1.8 m to 2.4 m
    • Mounting MethodWall
    • Application ScenarioIndoor
    • BracketOptional Wall & Ceiling Accessory
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
