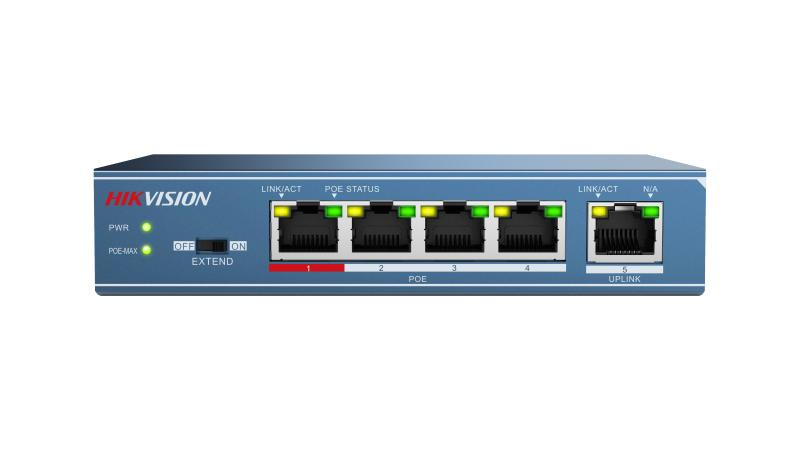

DS-3E0105P-E


    4 Port Fast Ethernet Unmanaged POE Switch

    • 4 x 10/100 Mbps PoE ports and 1 x 10/100 Mbps uplink ethernet port
    • IEEE 802.3 af & at high PoE power supply
    • Maximum 250 m long distance PoE transmission
    • VIP port transmission priority
    • Safe and reliable using 6 KV high surge protection
    • Supports store-and-forward
    • Supports MAC address auto learning and auto aging
    • Supports smart cache optimization
    • Supports desktop / wall mounting.
    View Less
    View more

    Specification

    • General
    • Storage TemperatureTemperature: -40℃-70℃
    • Power Supply51V DC, 1.25A
    • Weight0.299kg
    • Storage HumidityHumidity: 5%-90% , non-condensing
    • Surge Protection4KV
    • Power Consumption≤63W
    • Performance
    • Switching Capacity1Gbps
    • Store-and-forwardStore-and-forward
    • Max. Forwarding Rate0.74Mpps
    • PoE
    • Working ModeExtend On:250m,10M,CAT 5e, Extend Off:100m
    • PoE StandardIEEE802.3af, IEEE802.3at
    • PoE Power Budget58W
    • PoE Port4, 10/100Mbps RJ45 ports
    • Port
    • Uplink Port1, 100M Ethernet Port
    • Network Ports5
    • High-priority PortPort 1
    • Standard
    • Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
    • performance
    • Switching Capacity1Gbps
    • Max. Forwarding Rate0.74Mpps
    • Store-and-forwardStore-and-forward
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    General
    Storage Temperature
    Temperature: -40℃-70℃
    Power Supply
    51V DC, 1.25A
    Weight
    0.299kg
    Storage Humidity
    Humidity: 5%-90% , non-condensing
    Surge Protection
    4KV
    Power Consumption
    ≤63W
    Performance
    Switching Capacity
    1Gbps
    Store-and-forward
    Store-and-forward
    Max. Forwarding Rate
    0.74Mpps
    PoE
    Working Mode
    Extend On:250m,10M,CAT 5e, Extend Off:100m
    PoE Standard
    IEEE802.3af, IEEE802.3at
    PoE Power Budget
    58W
    PoE Port
    4, 10/100Mbps RJ45 ports
    Port
    Uplink Port
    1, 100M Ethernet Port
    Network Ports
    5
    High-priority Port
    Port 1
    Standard
    Network Protocol
     IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
    performance
    Switching Capacity
    1Gbps
    Max. Forwarding Rate
    0.74Mpps
    Store-and-forward
    Store-and-forward
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    General
    • Storage TemperatureTemperature: -40℃-70℃
    • Power Supply51V DC, 1.25A
    • Weight0.299kg
    • Storage HumidityHumidity: 5%-90% , non-condensing
    • Surge Protection4KV
    • Power Consumption≤63W
    Performance
    • Switching Capacity1Gbps
    • Store-and-forwardStore-and-forward
    • Max. Forwarding Rate0.74Mpps
    PoE
    • Working ModeExtend On:250m,10M,CAT 5e, Extend Off:100m
    • PoE StandardIEEE802.3af, IEEE802.3at
    • PoE Power Budget58W
    • PoE Port4, 10/100Mbps RJ45 ports
    Port
    • Uplink Port1, 100M Ethernet Port
    • Network Ports5
    • High-priority PortPort 1
    Standard
    • Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
    performance
    • Switching Capacity1Gbps
    • Max. Forwarding Rate0.74Mpps
    • Store-and-forwardStore-and-forward
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
