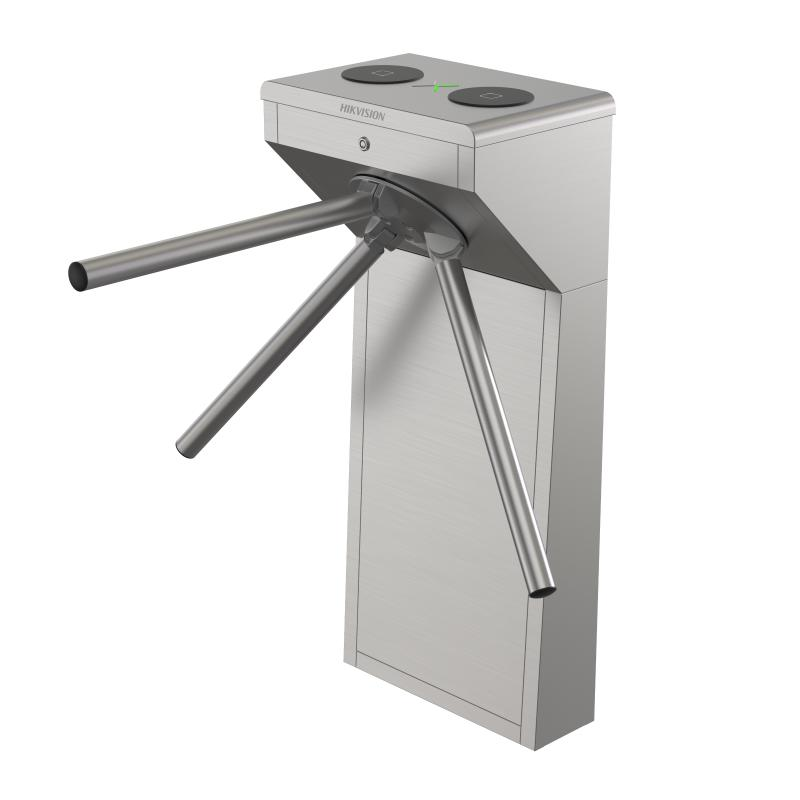

Value Tripod Turnstile

Bidirectional (Entering/Exiting) lane.
Support remote control and management by HCP software.
High-brightness LED indicates the entrance/exit and passing status except "Pg" type.
Fire alarm passing: When triggered, the arms will be dropped automatically for emergency evacuation.
Support PC web browser, easy to do the configuration.
Support ISAPI protocol for 3rd party integration development.

View Less

Data Sheet

Available models:

DS-K3G200X-R/M-Dm55

DS-K3G200X-R/E-Dm55

DS-K3G200X-R/D-Dm55

DS-K3G200X-R/Dm55

DS-K3G200X

Specification
Resources
Accessories

Data Sheet

System
MCBF2 Million

Interface
Network interfaceTCP/IP
Lock controlx 2
Exit buttonx 2
Alarm outputx 2
TAMPERNA
Fire alarm inputx 1
Case inputx 2

Hardware
Access controllerBuilt-in
Network switchNot included
Power supply for face recognition moduleNot included
KeyfobNot supported

Capacity
Card capacity500,000
Event capacity500,000

Authentication
Card typeEM, M1, Desfire, Felica

Function
Configuration via Web browserYes

General
ThroughputMore than 25 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width550mm
Barrier material SUS304 stainless steel pipe
Pedestal materialSUS304 stainless steel 1.0mm(0.03'')
IndicatorYes, except for "Pg" type
Power consumption35W (stand by)
Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity0% to 95% (No condensing)
DimensionsWithout package: 426 mm ×268 mm × 982.5 mm (16.77" × 10.55" × 38.68") With package: 700 mm × 430 × 1120 mm (27.56" × 16.93" × 44.09")
WeightWithout package:21 kg (46.3 lb) With package: 29.5 kg (65 lb)
ApprovalCE, CB, RoHS, REACH, WEEE

Configuration
Lane width550mm
Pedestal length426mm
Module selectionNO
Pedestal width286mm
Wall distance60mm
BaseYES
Barrier materialStainless steel pipe
Authentication modeCard;Face;QR code
Card typeEM;M1;Desfire;Felica
Recommended width550
Base modelDS-K3G200X-BASE
Product typeTripod Turnstile
Remote controller typeNA

System

MCBF

2 Million

Interface

Network interface

TCP/IP

Lock control

x 2

Exit button

x 2

Alarm output

x 2

TAMPER

Fire alarm input

x 1

Case input

x 2

Hardware

Access controller

Built-in

Network switch

Not included

Power supply for face recognition module

Not included

Keyfob

Not supported

Capacity

Card capacity

500,000

Event capacity

500,000

Authentication

Card type

EM, M1, Desfire, Felica

Function

Configuration via Web browser

Yes

General

Throughput

More than 25 persons per minute The actual throughput is affected by the person passing rate and passing method.

Lane width

550mm

Barrier material

SUS304 stainless steel pipe

Pedestal material

SUS304 stainless steel 1.0mm(0.03'')

Indicator

Yes, except for "Pg" type

Power consumption

35W (stand by)

Working temperature

-20 °C to 65 °C (-4 °F to 149 °F)

Working humidity

0% to 95% (No condensing)

Dimensions

Without package: 426 mm ×268 mm × 982.5 mm (16.77" × 10.55" × 38.68") With package: 700 mm × 430 × 1120 mm (27.56" × 16.93" × 44.09")

Weight

Without package:21 kg (46.3 lb) With package: 29.5 kg (65 lb)

Approval

CE, CB, RoHS, REACH, WEEE

Configuration

Lane width

550mm

Pedestal length

426mm

Module selection

Pedestal width

286mm

Wall distance

60mm

Base

YES

Barrier material

Stainless steel pipe

Authentication mode

Card;Face;QR code

Card type

EM;M1;Desfire;Felica

Recommended width

550

Base model

DS-K3G200X-BASE

Product type

Tripod Turnstile

Remote controller type
