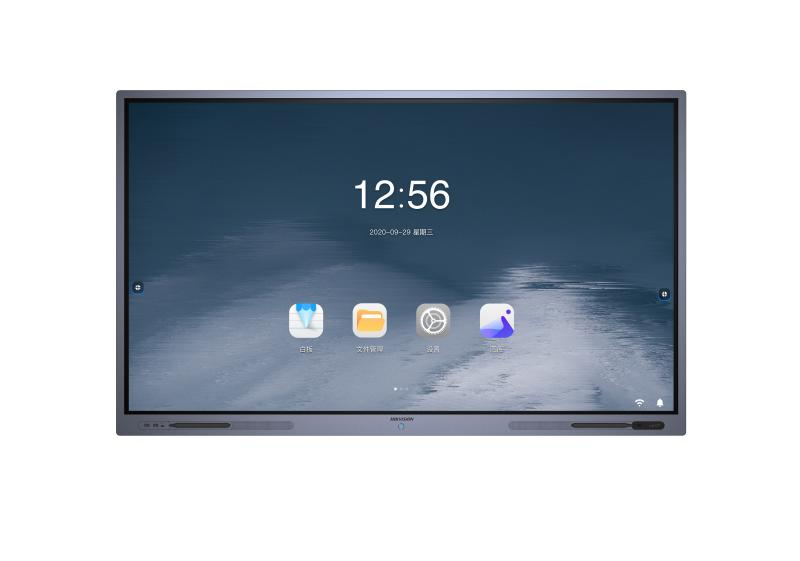

75-inch 4K Education Interactive Flat Panel

  • UHD 4K display with resolution of 3840×2160
  • Anti-glare and anti-blocking design to ensure smooth interaction
  • Dual systems of Windows and Android saving cost and easy to use
  • Quick response, at most 20-point touch control and smooth writing experience
  • Local and USB files auto classified management, and quick search or manage office, audio, video, or picture files
  • Dual USB interfaces, and data from any interface can be read in Windows and Android system at the same time
  • All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5175TS/P(B)
DS-D5175TS/P(B)
EOL
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D5175TS/P(B)
  • Display
  • Screen Size74.6 inch
  • BacklightD-LED
  • Pixel Pitch0.42975 (H) mm × 0.42975 (V) mm
  • Resolution3840 × 2160
  • Brightness400 cd/m²
  • Color Depth10 bit, 8bit+FRC
  • Contrast Ratio5000:1
  • Response Time8.5 ms
  • Color Gamut72% NTSC
  • Refresh Rate60 Hz
  • Viewing Angle178°(H)/178°(V)
  • Touch
  • Touch TypeInfrared Touch Screen
  • Glass4mm Heat Tempered Glass 7H with Anti-Smudge and Anti-Glare for durability
  • Touch Point20 point multi-touch
  • Touch Response Time≤ 10 ms
  • Touch Precision± 1 mm (≥ 90% touching area)
  • Built-in System
  • Operation SystemAndroid 11
  • Processor A75*2+A55*2
  • Memory4G
  • Built-in Storage32G
  • NIC100Mbps
  • Internal Function
  • LoudspeakerBuilt-in 2 × 15 W loudspeaker
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0
  • Interface
  • Video & Audio InputHDMI In × 1, LINE IN × 1, VGA In × 1, AV In × 1, HDMI OUT × 1
  • Video & Audio OutputAnalog 2.0 Audio Line Out(3.5 mm jack) × 1, SPDIF OUT × 1
  • Control InterfaceTOUCH-USB × 1, RS232 × 1
  • Network InterfaceRJ45 (100 M bps) × 1, WIFI (Support AP+Station)
  • Data Transmission InterfaceUSB 3.0 × 3，USB 2.0 × 1，TYPEC x 1(11 W)
  • Power
  • Power Consumption≤ 433.6 W (full load)
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0'C to 40'C
  • Working Humidity20% to 90% RH
  • General
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Package Dimensions (W × H × D)1936 (W) mm × 1220 (H) mm × 263 (D) mm (76.28 '' × 48.07 '' × 10.36 '')
  • Product Dimensions (W × H × D)1720.59 (W) mm x 1034.65 mm (H) x 88.6 (D) mm (67.79 '' x 40.77 '' x 3.49 '')
  • Net Weight57.570 kg
  • Gross Weight75.150 kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5175TS/P(B)
Display
Screen Size
74.6 inch
Backlight
D-LED
Pixel Pitch
0.42975 (H) mm × 0.42975 (V) mm
Resolution
3840 × 2160
Brightness
400 cd/m²
Color Depth
10 bit, 8bit+FRC
Contrast Ratio
5000:1
Response Time
8.5 ms
Color Gamut
72% NTSC
Refresh Rate
60 Hz
Viewing Angle
178°(H)/178°(V)
Touch
Touch Type
Infrared Touch Screen
Glass
4mm Heat Tempered Glass 7H with Anti-Smudge and Anti-Glare for durability
Touch Point
20 point multi-touch
Touch Response Time
≤ 10 ms
Touch Precision
± 1 mm (≥ 90% touching area)
Built-in System
Operation System
Android 11
Processor
A75*2+A55*2
Memory
4G
Built-in Storage
32G
NIC
100Mbps
Internal Function
Loudspeaker
Built-in 2 × 15 W loudspeaker
Bluetooth
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0
Interface
Video & Audio Input
HDMI In × 1, LINE IN × 1, VGA In × 1, AV In × 1, HDMI OUT × 1
Video & Audio Output
Analog 2.0 Audio Line Out(3.5 mm jack) × 1, SPDIF OUT × 1
Control Interface
TOUCH-USB × 1, RS232 × 1
Network Interface
RJ45 (100 M bps) × 1, WIFI (Support AP+Station)
Data Transmission Interface
USB 3.0 × 3，USB 2.0 × 1，TYPEC x 1(11 W)
Power
Power Consumption
≤ 433.6 W (full load)
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0'C to 40'C
Working Humidity
20% to 90% RH
General
Power Supply
100 to 240 VAC, 50/60 Hz
Package Dimensions (W × H × D)
1936 (W) mm × 1220 (H) mm × 263 (D) mm (76.28 '' × 48.07 '' × 10.36 '')
Product Dimensions (W × H × D)
1720.59 (W) mm x 1034.65 mm (H) x 88.6 (D) mm (67.79 '' x 40.77 '' x 3.49 '')
Net Weight
57.570 kg
Gross Weight
75.150 kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product ModelDS-D5175TS/P(B)
Display
  • Screen Size74.6 inch
  • BacklightD-LED
  • Pixel Pitch0.42975 (H) mm × 0.42975 (V) mm
  • Resolution3840 × 2160
  • Brightness400 cd/m²
  • Color Depth10 bit, 8bit+FRC
  • Contrast Ratio5000:1
  • Response Time8.5 ms
  • Color Gamut72% NTSC
  • Refresh Rate60 Hz
  • Viewing Angle178°(H)/178°(V)
Touch
  • Touch TypeInfrared Touch Screen
  • Glass4mm Heat Tempered Glass 7H with Anti-Smudge and Anti-Glare for durability
  • Touch Point20 point multi-touch
  • Touch Response Time≤ 10 ms
  • Touch Precision± 1 mm (≥ 90% touching area)
Built-in System
  • Operation SystemAndroid 11
  • Processor A75*2+A55*2
  • Memory4G
  • Built-in Storage32G
  • NIC100Mbps
Internal Function
  • LoudspeakerBuilt-in 2 × 15 W loudspeaker
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0
Interface
  • Video & Audio InputHDMI In × 1, LINE IN × 1, VGA In × 1, AV In × 1, HDMI OUT × 1
  • Video & Audio OutputAnalog 2.0 Audio Line Out(3.5 mm jack) × 1, SPDIF OUT × 1
  • Control InterfaceTOUCH-USB × 1, RS232 × 1
  • Network InterfaceRJ45 (100 M bps) × 1, WIFI (Support AP+Station)
  • Data Transmission InterfaceUSB 3.0 × 3，USB 2.0 × 1，TYPEC x 1(11 W)
Power
  • Power Consumption≤ 433.6 W (full load)
  • Standby Consumption≤ 0.5 W
Working Environment
  • Working Temperature0'C to 40'C
  • Working Humidity20% to 90% RH
General
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Package Dimensions (W × H × D)1936 (W) mm × 1220 (H) mm × 263 (D) mm (76.28 '' × 48.07 '' × 10.36 '')
  • Product Dimensions (W × H × D)1720.59 (W) mm x 1034.65 mm (H) x 88.6 (D) mm (67.79 '' x 40.77 '' x 3.49 '')
  • Net Weight57.570 kg
  • Gross Weight75.150 kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
