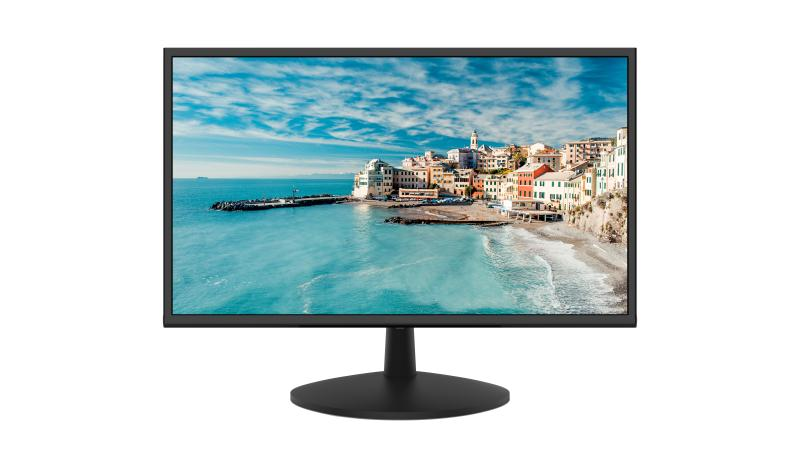

21.5 inch FHD Monitor

  • LED backlit technology with full HD 1920 x 1080
  • Wide view angle: 178°(H)/178°(V)
  • Multiply inputs: HDMI, VGA
  • 3D comb filter, 3D De-interlace
  • 3D noise reduction
  • VESA stand bracket
  • High reliability and stability, 24/7 operation
  • Green energy: Enter standby mode while no signal input
View Less
View more
Sales Inquiry

Available models:

DS-D5022QE-C
DS-D5022QE-C
DS-D5022QE-C(AUS)
DS-D5022QE-C Discontinued

Specification

  • Display
  • Viewing Angle178 (H), 178 (V)
  • Screen Size21.5 inch
  • Active Display Area476.64 mm × 268.11 mm
  • BacklightLED Backlight
  • Pixel Pitch0.24825 mm × 0.24825 mm
  • Resolution1920 × 1080@60 Hz
  • Brightness250 cd/m²
  • Contrast Ratio3000: 1
  • Response Time5 ms
  • Interface
  • Data Transmission InterfaceHDMI input 1 VGA input 1
  • Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Power Consumption≤ 30 W
  • Standby Consumption≤ 0.4 W
  • Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20 to 93 % (No Condensation)
  • Storage Temperature-20 ℃ to 55 ℃ (-4 ℉ to 131 ℉)
  • Storage Humidity20 to 93% (No Condensation)
  • General
  • VESAM4, 75 mm × 75 mm
  • Net Weight3.3 kg (7.28 lb.)
  • Color16.7M
  • Dimensions (W × H × D) 503 mm × 298.3 mm × 35.9 mm (19.80'' × 11.74'' × 1.41'') (without Pedestal)
  • Structure
  • Housing ColorBlack
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Viewing Angle
178 (H), 178 (V)
Screen Size
21.5 inch
Active Display Area
476.64 mm × 268.11 mm
Backlight
LED Backlight
Pixel Pitch
0.24825 mm × 0.24825 mm
Resolution
1920 × 1080@60 Hz
Brightness
250 cd/m²
Contrast Ratio
3000: 1
Response Time
5 ms
Interface
Data Transmission Interface
HDMI input 1 VGA input 1
Power
Power Supply
100 to 240 VAC, 50/60 Hz
Power Consumption
≤ 30 W
Standby Consumption
≤ 0.4 W
Working Environment
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
20 to 93 % (No Condensation)
Storage Temperature
-20 ℃ to 55 ℃ (-4 ℉ to 131 ℉)
Storage Humidity
20 to 93% (No Condensation)
General
VESA
M4, 75 mm × 75 mm
Net Weight
3.3 kg (7.28 lb.)
Color
16.7M
Dimensions (W × H × D)
503 mm × 298.3 mm × 35.9 mm (19.80'' × 11.74'' × 1.41'') (without Pedestal)
Structure
Housing Color
Black
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Viewing Angle178 (H), 178 (V)
  • Screen Size21.5 inch
  • Active Display Area476.64 mm × 268.11 mm
  • BacklightLED Backlight
  • Pixel Pitch0.24825 mm × 0.24825 mm
  • Resolution1920 × 1080@60 Hz
  • Brightness250 cd/m²
  • Contrast Ratio3000: 1
  • Response Time5 ms
Interface
  • Data Transmission InterfaceHDMI input 1 VGA input 1
Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Power Consumption≤ 30 W
  • Standby Consumption≤ 0.4 W
Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20 to 93 % (No Condensation)
  • Storage Temperature-20 ℃ to 55 ℃ (-4 ℉ to 131 ℉)
  • Storage Humidity20 to 93% (No Condensation)
General
  • VESAM4, 75 mm × 75 mm
  • Net Weight3.3 kg (7.28 lb.)
  • Color16.7M
  • Dimensions (W × H × D) 503 mm × 298.3 mm × 35.9 mm (19.80'' × 11.74'' × 1.41'') (without Pedestal)
Structure
  • Housing ColorBlack
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
