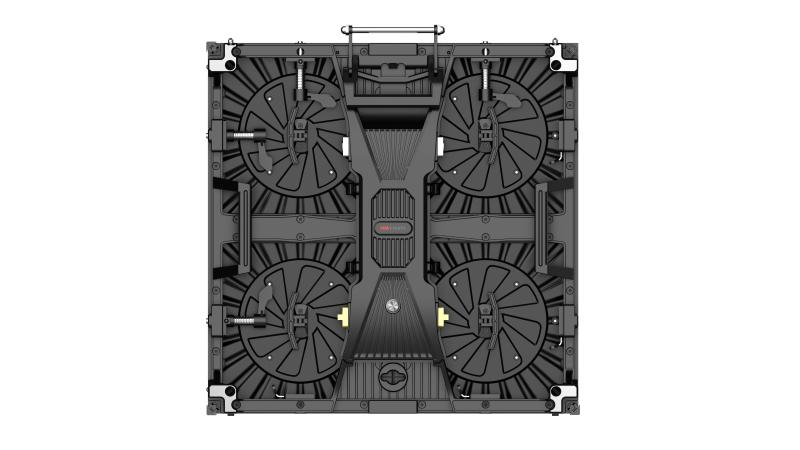

P3.9 outdoor rental LED display

  • Excellent in precision, heat dissipation, toughness, and solidity with the die-casting aluminum cabinet design.
  • 500 mm × 500 mm cabinet with multiple dot pitches available and both indoor and outdoor scenarios applicable.
  • Front maintenance available with the magnetic suction design, and quick front maintenance and installation achievable with the fixed installation of module at any position.
  • 10-seconds replacement achievable with power supply, display controller, and adapter board integrated.
  • Fast locking from the top, bottom, left, and right; 2-seconds locking for adjacent cabinets; convenient wiring with aviation plugs.
  • Pendant mounting and standing available for installation.
  • Free of fans and noise with excellent heat dissipation.
  • High refresh rate (up to 3840 Hz) and high grey scale.

View Less
View more
Sales Inquiry

Available models:

DS-D4439RO-CA
DS-D4439RO-CA
EOL

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.9
  • Pixel Pitch3.906 mm
  • Modules Component2 × 2
  • Dimensions (W × H × D)500 mm × 500mm × 87 mm (19.69" × 19.69" × 3.43")
  • Resolution128 × 128
  • Area0.25 m²
  • Weight8.5 Kg (18.74lb)
  • Pixel Density65536 dots/m²
  • Lamp Board Housingwith housing
  • Cabinet MaterialDie-cast aluminum
  • Maintenance MethodRear maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP54
  • Display
  • White Balance Brightness5000 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate3840 Hz
  • Grey Level16 bit
  • Display Color281 trillion
  • Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 680 W/m²
  • Average Consumption≤ 230 W/m²
  • Working Environment
  • Working Temperature-15-50 ℃
  • Working Humidity10%~85%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
  • General
  • Gross Weight85 Kg (187.4 lb)
  • Package Dimension (W × H × D)560 mm × 580 mm × 670 mm (6 IN 1)
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P3.9
Pixel Pitch
3.906 mm
Modules Component
2 × 2
Dimensions (W × H × D)
500 mm × 500mm × 87 mm (19.69" × 19.69" × 3.43")
Resolution
128 × 128
Area
0.25 m²
Weight
8.5 Kg (18.74lb)
Pixel Density
65536 dots/m²
Lamp Board Housing
with housing
Cabinet Material
Die-cast aluminum
Maintenance Method
Rear maintenance
Cabinet Flatness
0.2 mm
Protection Level
IP54
Display
White Balance Brightness
5000 cd/m²
Color Temperature
3000 K to 10000 K adjustable
Viewing Angle
Horizontal 160°, vertical 160°
Contrast Ratio
≥ 6000:1
Color Uniformity
≤ ± 0.003Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Driving Method
Constant current driving
Frame Frequency
60 Hz
Refresh Rate
3840 Hz
Grey Level
16 bit
Display Color
281 trillion
Power
Power Supply
110~220 VAC ± 15%
Max. Consumption
≤ 680 W/m²
Average Consumption
≤ 230 W/m²
Working Environment
Working Temperature
-15-50 ℃
Working Humidity
10%~85%RH
Storage Humidity
10%~85%RH
Storage Temperature
-20~60 ℃
General
Gross Weight
85 Kg (187.4 lb)
Package Dimension (W × H × D)
560 mm × 580 mm × 670 mm (6 IN 1)
Lifespan
Lamp 100,000 hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.9
  • Pixel Pitch3.906 mm
  • Modules Component2 × 2
  • Dimensions (W × H × D)500 mm × 500mm × 87 mm (19.69" × 19.69" × 3.43")
  • Resolution128 × 128
  • Area0.25 m²
  • Weight8.5 Kg (18.74lb)
  • Pixel Density65536 dots/m²
  • Lamp Board Housingwith housing
  • Cabinet MaterialDie-cast aluminum
  • Maintenance MethodRear maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP54
Display
  • White Balance Brightness5000 cd/m²
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate3840 Hz
  • Grey Level16 bit
  • Display Color281 trillion
Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 680 W/m²
  • Average Consumption≤ 230 W/m²
Working Environment
  • Working Temperature-15-50 ℃
  • Working Humidity10%~85%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
General
  • Gross Weight85 Kg (187.4 lb)
  • Package Dimension (W × H × D)560 mm × 580 mm × 670 mm (6 IN 1)
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
