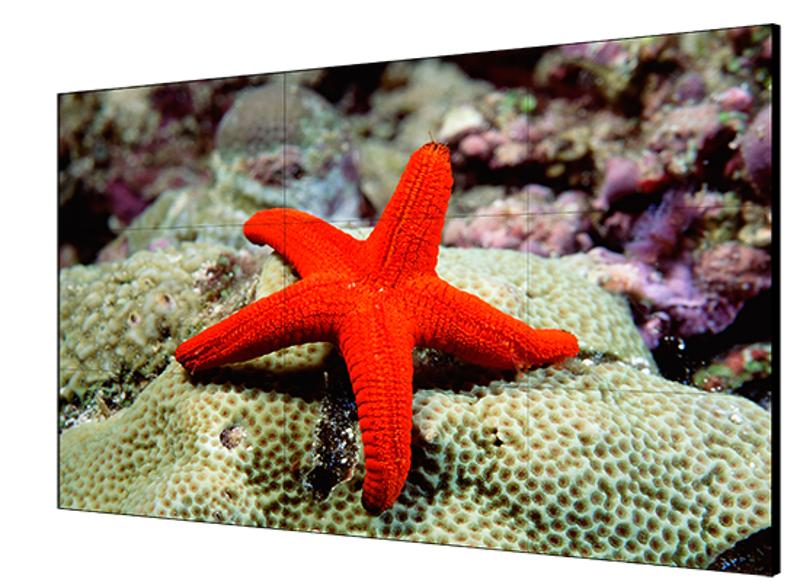

DS-D2055NL-B
EOL

Specification

  • Product Model
  • Product ModelDS-D2055NL-B
  • Display
  • Screen Size55 inch
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.63 mm
  • Physical Seam3.5 mm
  • Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness500 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth8 bit, 16.7 M
  • Contrast Ratio4000:1
  • Response Time8 ms (G to G)
  • Color Gamut72% NTSC
  • Surface TreatmentHaze 25%, 2H
  • Interface
  • Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
  • Video & Audio OutputDVI × 1, VGA × 1, CVBS × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
  • Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 192 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity20% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 65°C (-4°F to 149°F)
  • Storage Humidity5% to 90% RH (non-condensing)
  • General
  • Casing MaterialSECC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1231.5 mm × 684.3 mm × 70.1 mm (47.78'' × 26.94'' × 2.76'')
  • Package Dimension (W × H × D)Carton with two displays: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'') Carton with a single display: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'')
  • Net Weight24.68 ± 0.5 Kg (54.41 ± 1.1 lb) for single display
  • Gross Weight63.66 ± 0.5 Kg (140.35 ± 1.1 lb) for carton with two displays 36.61 ± 0.5 Kg (80.71 ± 1.1 lb) for carton with a single display
  • Packing ListLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D2055NL-B
Display
Screen Size
55 inch
Active Display Area
1209.6 (H) mm × 680.4 (V) mm
Backlight
Direct-lit LED backlight
Pixel Pitch
0.63 mm
Physical Seam
3.5 mm
Bezel Width
2.3 mm (top/left), 1.2 mm (bottom/right)
Resolution
1920 × 1080@60 Hz (downward compatible)
Brightness
500 cd/m²
Viewing Angle
Horizontal 178°, vertical 178°
Color Depth
8 bit, 16.7 M
Contrast Ratio
4000:1
Response Time
8 ms (G to G)
Color Gamut
72% NTSC
Surface Treatment
Haze 25%, 2H
Interface
Video & Audio Input
HDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
Video & Audio Output
DVI × 1, VGA × 1, CVBS × 1
Control Interface
RS232 IN × 1, RS232 OUT × 1
Power
Power Supply
100-240 VAC, 50/60 Hz
Power Consumption
≤ 192 W
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0°C to 40°C (32°F to 104°F)
Working Humidity
20% to 90% RH (non-condensing)
Storage Temperature
-20°C to 65°C (-4°F to 149°F)
Storage Humidity
5% to 90% RH (non-condensing)
General
Casing Material
SECC
VESA
600 (H) mm × 400 (V) mm
Product Dimension (W × H × D)
1231.5 mm × 684.3 mm × 70.1 mm (47.78'' × 26.94'' × 2.76'')
Package Dimension (W × H × D)
Carton with two displays: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'') Carton with a single display: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'')
Net Weight
24.68 ± 0.5 Kg (54.41 ± 1.1 lb) for single display
Gross Weight
63.66 ± 0.5 Kg (140.35 ± 1.1 lb) for carton with two displays 36.61 ± 0.5 Kg (80.71 ± 1.1 lb) for carton with a single display
Packing List
LCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product ModelDS-D2055NL-B
Display
  • Screen Size55 inch
  • Active Display Area1209.6 (H) mm × 680.4 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.63 mm
  • Physical Seam3.5 mm
  • Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness500 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth8 bit, 16.7 M
  • Contrast Ratio4000:1
  • Response Time8 ms (G to G)
  • Color Gamut72% NTSC
  • Surface TreatmentHaze 25%, 2H
Interface
  • Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
  • Video & Audio OutputDVI × 1, VGA × 1, CVBS × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 192 W
  • Standby Consumption≤ 0.5 W
Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity20% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 65°C (-4°F to 149°F)
  • Storage Humidity5% to 90% RH (non-condensing)
General
  • Casing MaterialSECC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1231.5 mm × 684.3 mm × 70.1 mm (47.78'' × 26.94'' × 2.76'')
  • Package Dimension (W × H × D)Carton with two displays: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'') Carton with a single display: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'')
  • Net Weight24.68 ± 0.5 Kg (54.41 ± 1.1 lb) for single display
  • Gross Weight63.66 ± 0.5 Kg (140.35 ± 1.1 lb) for carton with two displays 36.61 ± 0.5 Kg (80.71 ± 1.1 lb) for carton with a single display
  • Packing ListLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.1.4_200722
Applied to:
DS-D2055NL-B
Firmware_V2.2.2_200901
Applied to:
DS-D2055NL-B
