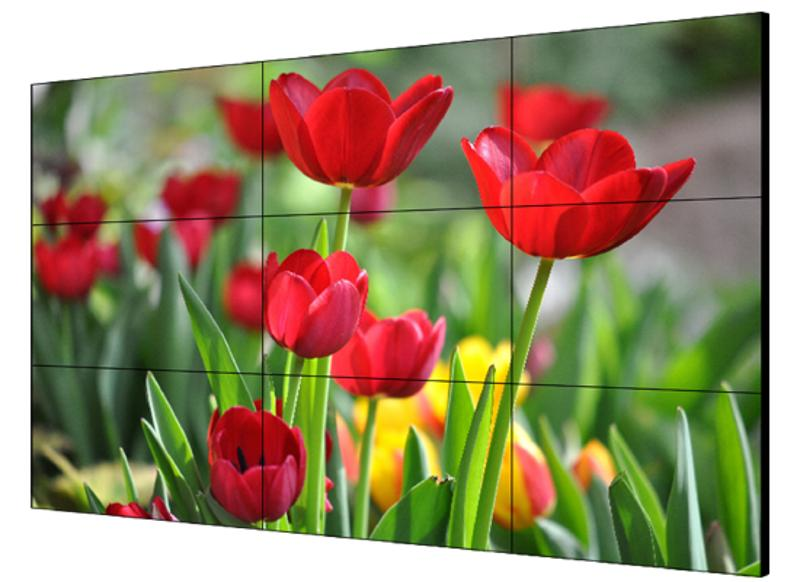

DS-D2046LU-Y
EOL
Data Sheet

Specification

  • Display
  • Screen Size46 inch
  • Active Display Area1018.08 (H) mm × 572.67 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.53 mm
  • Physical Seam3.5 mm
  • Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness500 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth8 bit, 16.7 M
  • Contrast Ratio1200:1
  • Response Time8 ms
  • Color Gamut72% NTSC
  • Surface TreatmentHaze 25%, 3H
  • Interface
  • Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
  • Video & Audio OutputHDMI × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
  • Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 200 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 80% RH (non-condensing)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Storage Humidity10% to 90% RH (non-condensing)
  • General
  • Casing MaterialSGCC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1022.18 mm × 576.77 mm × 72.48 mm (40.24'' × 22.7'' × 2.85'')
  • Package Dimension (W × H × D)1218(W) mm × 788 (H) mm × 206 (D) mm
  • Net Weight17.0 ± 0.5 kg (37.5 ± 1.1 lb) for single display
  • Gross Weight32.8 ± 0.5 kg (72.3 ± 1.1 lb) for carton with a single display
  • Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen Size
46 inch
Active Display Area
1018.08 (H) mm × 572.67 (V) mm
Backlight
Direct-lit LED backlight
Pixel Pitch
0.53 mm
Physical Seam
3.5 mm
Bezel Width
2.3 mm (top/left), 1.2 mm (bottom/right)
Resolution
1920 × 1080@60 Hz (downward compatible)
Brightness
500 cd/m²
Viewing Angle
Horizontal 178°, vertical 178°
Color Depth
8 bit, 16.7 M
Contrast Ratio
1200:1
Response Time
8 ms
Color Gamut
72% NTSC
Surface Treatment
Haze 25%, 3H
Interface
Video & Audio Input
VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
Video & Audio Output
HDMI × 1
Control Interface
RS232 IN × 1, RS232 OUT × 1
Power
Power Supply
100-240 VAC, 50/60 Hz
Power Consumption
≤ 200 W
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0°C to 40°C (32°F to 104°F)
Working Humidity
10% to 80% RH (non-condensing)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Humidity
10% to 90% RH (non-condensing)
General
Casing Material
SGCC
VESA
600 (H) mm × 400 (V) mm
Product Dimension (W × H × D)
1022.18 mm × 576.77 mm × 72.48 mm (40.24'' × 22.7'' × 2.85'')
Package Dimension (W × H × D)
1218(W) mm × 788 (H) mm × 206 (D) mm
Net Weight
17.0 ± 0.5 kg (37.5 ± 1.1 lb) for single display
Gross Weight
32.8 ± 0.5 kg (72.3 ± 1.1 lb) for carton with a single display
Packing List
Carton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Screen Size46 inch
  • Active Display Area1018.08 (H) mm × 572.67 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.53 mm
  • Physical Seam3.5 mm
  • Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness500 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth8 bit, 16.7 M
  • Contrast Ratio1200:1
  • Response Time8 ms
  • Color Gamut72% NTSC
  • Surface TreatmentHaze 25%, 3H
Interface
  • Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
  • Video & Audio OutputHDMI × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 200 W
  • Standby Consumption≤ 0.5 W
Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity10% to 80% RH (non-condensing)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Storage Humidity10% to 90% RH (non-condensing)
General
  • Casing MaterialSGCC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1022.18 mm × 576.77 mm × 72.48 mm (40.24'' × 22.7'' × 2.85'')
  • Package Dimension (W × H × D)1218(W) mm × 788 (H) mm × 206 (D) mm
  • Net Weight17.0 ± 0.5 kg (37.5 ± 1.1 lb) for single display
  • Gross Weight32.8 ± 0.5 kg (72.3 ± 1.1 lb) for carton with a single display
  • Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.2_210309
Applied to:
DS-D2046LU-Y
Firmware_V1.0.4_210528
Applied to:
DS-D2046LU-Y
Firmware_V1.0.8_221221
Applied to:
DS-D2046LU-Y
DS-D2046LU-Y(1 IN 1 Package)
