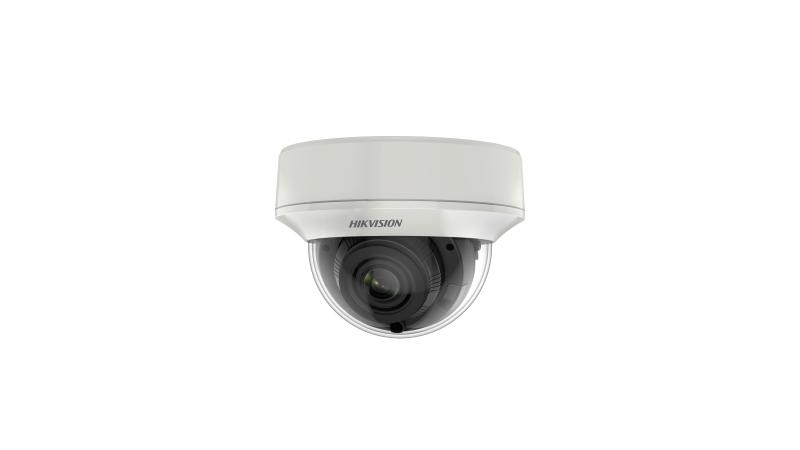

4K Indoor Motorized Varifocal Dome Camera

  • 8 MP dome camera
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:

DS-2CE56U1T-ITZF(2.7-13.5mm)

Specification

  • Camera
  • Image Sensor8.29 MP progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
  • Focal Length & FOV108.1° to 45.6°
  • Lens MountΦ14
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 60 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output
  • General
  • Power9 VDC to 15 VDC, max. 6.4 W *You are recommended to use one power adapter to supply the power for one camera.
  • MaterialPlastic
  • DimensionØ 136 mm × 101.94 mm (Ø 5.35" × 4.01")
  • Approx. 450 g (0.99 lb.)
  • Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
