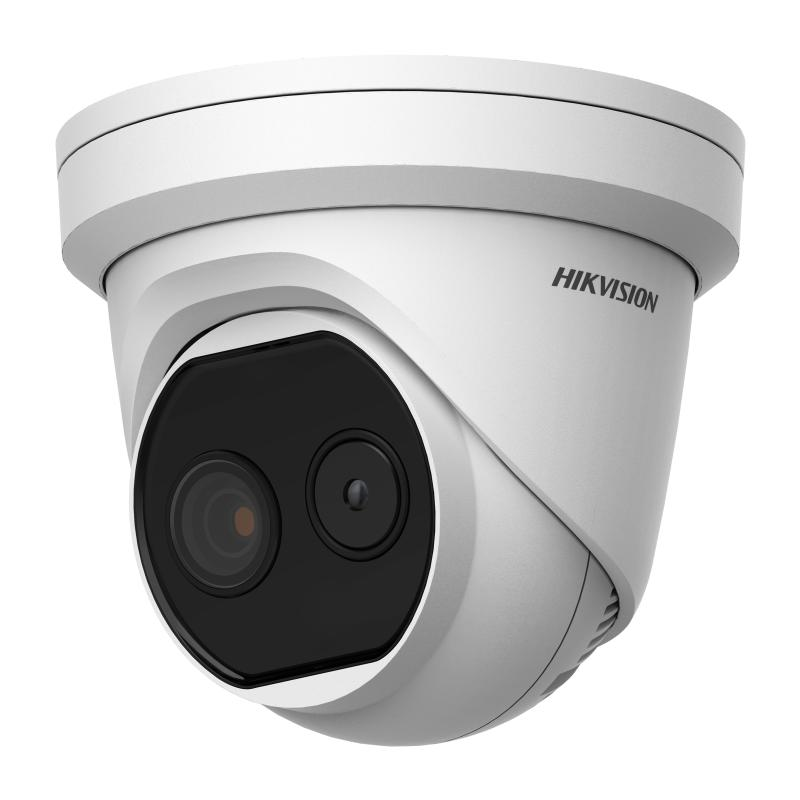

Thermal & Optical Bi-Spectrum Network Turret Camera

High sensitivity thermal module with 160 × 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
High quality optical module with 2 MP resolution

View Less

Available models:

DS-2TD1217-2/V1

EOL

Specification
Resources
Accessories

Thermal Module
Image sensorVanadium Oxide Uncooled Focal Plane Arrays
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDless than 40mk (@25°C,F#=1.1)
MRAD9.44 mrad
Field of View90° × 66.4° (H × V)
Min. Focusing Distance0.1 m
ApertureF1.1

Optical Module
Max. Resolution1600 × 1200
Image Sensor1/2.8” Progressive Scan CMOS
Min. IlluminationColor: 0.0049 Lux @(F2.25, AGC ON), B/W: 0.0025 Lux @(F2.25, AGC ON)
Field of View101.2° × 77°(H × V)
WDR120dB
Shutter Speed1s to 1/100,000s
Day & NightIR cut filter with auto switch

Image Function
Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
Picture in PictureCombines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy±8 °C (14.4 °F)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

Infrared
IR DistanceUp to 15 m
IR Intensity and AngleAutomatically adjusted

Network
Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720),Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
Sub streamVisible Light: 50Hz: 25fps (704 × 576), 25fps (640 × 480),Visible Light: 60Hz: 30fps (704 × 480), 30fps (640 × 480),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
Video compressionH.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous live viewUp to 20-ch
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm Input1-ch inputs (0-5vDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Reset1 Reset Button
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS485
SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256GB), Support Manual/Alarm Recording
Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
ClientiVMS-4200
Web BrowserIE8-IE11, chrome41-chrome44, Firefox 30-Firefox51

General
Menu LanguageEnglish
Power12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Power Consumption12 VDC± 20%: 0.7 A, max. 8W,PoE (802.3at, class 4): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W
Work Temperature/Humidity-30°C to 60°C (-22°F to 140°F); Humidity: 95% or Less
Protection LevelIP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions134.2 mm × 123.9 mm × 107.7 mm (5.28 " × 4.87" × 4.24 ")
WeightApprox. 0.8kg
