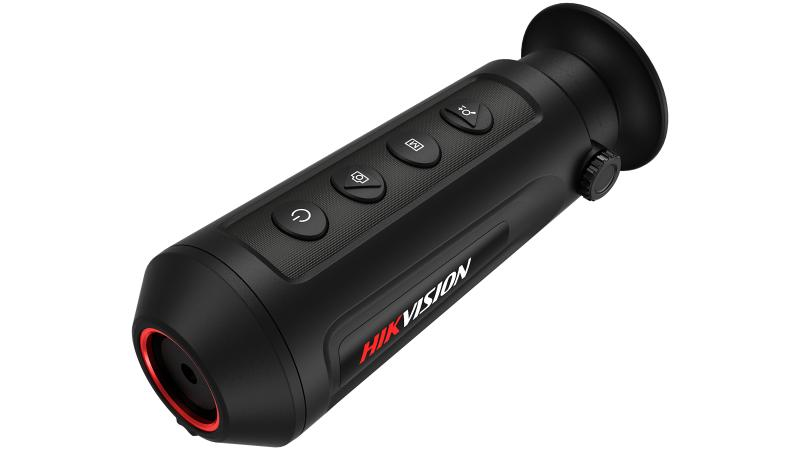

Handheld Thermal Monocular Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD < 35 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • 720 × 540 resolution 0.2-inch LCOS display
  • Built-in rechargeable lithium battery
  • Up to 10 hours continuous operation
  • Wi-Fi hot spot
  • Type-C Interface

Specification
  • Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution160×120
  • Frame Rate50Hz
  • Pixel Interval17μm
  • Response Waveband8μm to 14μm
  • NETDLess than 35 mK (@25°C),F#=1.1
  • Focal Length6.2mm
  • IFOV2.74 mrad
  • Field of View24.7° × 18.7° (H × V)
  • ApertureF1.1
  • Magnification0.6 to 2.4
  • Image Display
  • Monitor 0.2 inch, LCOS, 720 × 540
  • PalettesBlack Hot, White Hot, Red Hot, Fusion
  • FFC (Flat Field Correction) ModeAuto, Manual, External Correction
  • Digital Zoom1 ×, 2 ×, 4 ×
  • Smart Function
  • Hot Track Yes
  • System
  • StorageBuilt-in memory module (8 GB)
  • Record VideoYes
  • Capture SnapshotNo
  • Wi-FiYes
  • Standby ModeYes
  • Power Supply
  • Battery TypeRechargeable Lithium Battery
  • Battery Operating Time10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C) 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
  • Battery Capacity DisplayYes
  • General
  • Power5 VDC/2 A, 1.5 W, Type-C Interface
  • Work Temperature/HumidityFrom -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
  • Protection LevelIP67
  • Dimension158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
  • 250 g (0.55 lb)
