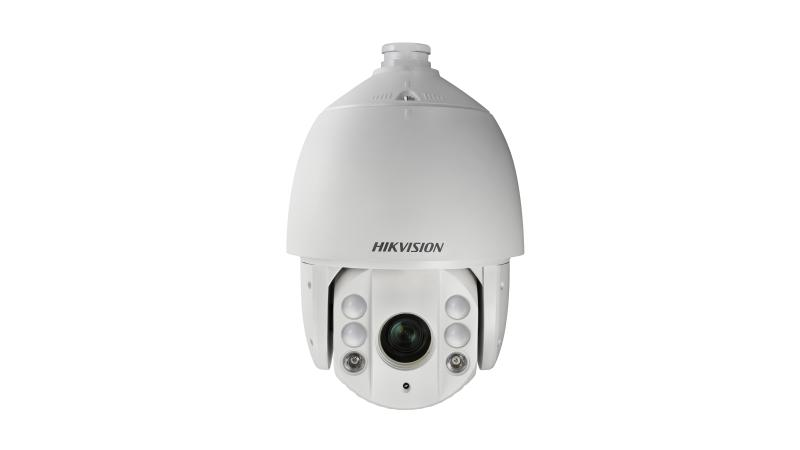

7-inch 4 MP 30X Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 30x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 150m IR range ensures safety at night
  • Water and dust resistant (IP66).

View Less
View more

Available models:

DS-2DE7430IW-AE

Specification

  • Lens
  • FOV48.8° to 2.3° (Wide-Tele)
  • Zoom SpeedApprox. 4.8 s (Optical Lens, Wide-Tele)
  • Working Distance10 mm to 1500 mm (Wide-Tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.9 mm to 177 mm, 30× Optical Zoom
  • Image
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users, 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8+, Chrome 31+, Firefox 30+, Safari 8.0+ web browser
  • Security MeasuresUser Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
  • Alarm LinkagePreset, Patrol Scan, Pattern Scan, Memory Card Video Recording, Trigger Recording, E-Map, VCA Capture, Upload to FTP, Send Email, etc.
  • Interface
  • Alarm Output1-ch alarm output
  • Alarm Input2-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
  • StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB, NAS (NPS, SMB/ CIPS), ANR
  • Compression Standard
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • SVCSupport
  • Camera Module
  • 3D DNRSupport
  • AGCAuto/Manual
  • Regional ExposureSupport
  • Regional FocusSupport
  • Image Sensor1/1.9" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON),B/W: 0.002 Lux @(F1.5, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • BLCSupport
  • HLCSupport
  • Optical DefogSupport
  • Digital DefogSupport
  • EISSupport
  • Digital WDRSupport
  • Supplement Light
  • IR Distance150 m
  • Smart IRSupport
  • IR ControlIR brightness and angle are intelligently adjustable according to the scenes.
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
  • Movement Range (Tilt)From -15° to 90° (Auto Flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplaySupport
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Smart Features
  • Basic Event DetectionMotion Detection, Video Tampering, Alarm Input, Alarm Output, Exception
  • Smart DetectionAudio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
  • Smart TrackingSupport
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream and third stream respectively support four fixed areas.
  • General
  • DimensionsΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • WeightApprox. 4.5 kg (9.92 lb)
  • Protection LevelIP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power24 VAC & Hi-PoE, Max.: 40 W,IR: 19 W
  • Working TemperatureOutdoor: -30°C to 65°C (-22°F to 149°F)
  • Working Humidity≤ 90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
FOV
48.8° to 2.3° (Wide-Tele)
Zoom Speed
Approx. 4.8 s (Optical Lens, Wide-Tele)
Working Distance
10 mm to 1500 mm (Wide-Tele)
Aperture Range
F1.5 to F3.4
Focal Length
5.9 mm to 177 mm, 30× Optical Zoom
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution
2560 × 1440
Main Stream
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
