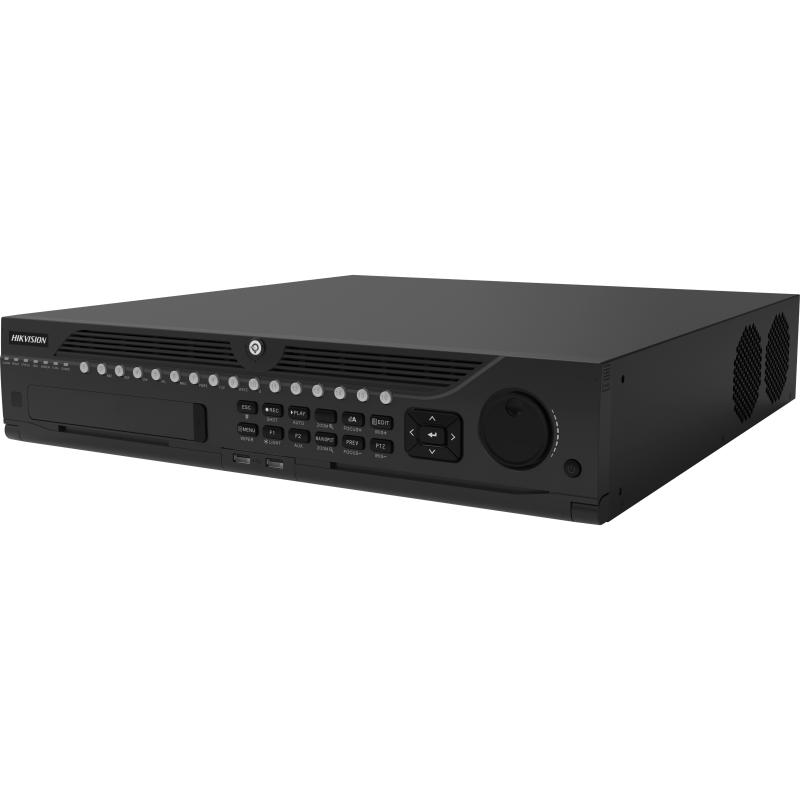

32-ch 2U 4K NVR

  • Up to 32 channel IP cameras can be connected
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Specification
  • Video and Audio
  • IP Video Input32-ch Up to 12 MP resolution
  • HDMI 1 OutputHDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,2-ch, RCA (2.0Vp-p, 1 KΩ)
  • VGA OutputHDMI,VGA
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Incoming Bandwidth320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Decoding Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
  • Synchronous playback16-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Remote Connection128
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • InterfaceN/A
  • RAID
  • RAID Type4
  • Auxiliary Interface
  • SATA8
  • eSATA1 eSATA interface
  • CapacityUp to 10TB capacity for each HDD
  • Serial InterfaceRS-232; RS-485; Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/4
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz 200 W
  • Consumption≤ 30 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis2U
  • Dimension (W × D × H)445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
  • Weight≤ 10 kg (22 lb)
Specification
