DS-2CD1341-I

EOL

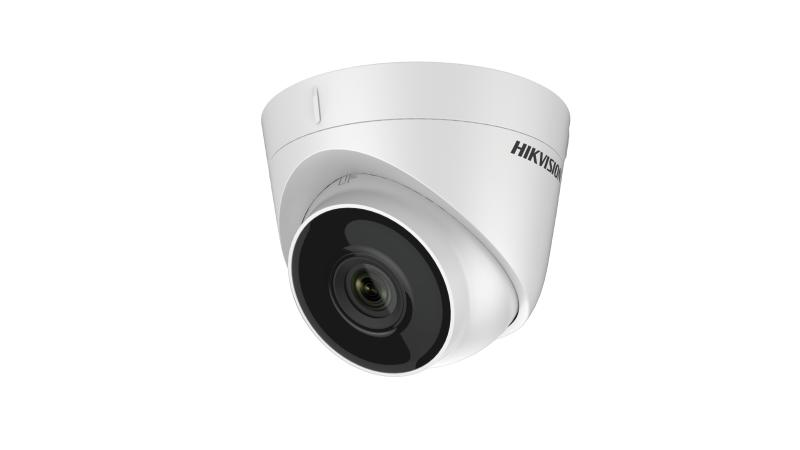

4MP Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Efficient H.264 compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range;

View Less

Available models:

DS-2CD1341-I(2.8mm)

DS-2CD1341-I(4mm)

Camera
Image Sensor1/3" progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
Day &NightIR cut filter with auto switch
Wide Dynamic Range120 dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
DNR3D DNR

Lens
Lens2.8 , horizontal field of view 98°, 4 mm , horizontal field of view 75° 6 mm , horizontal field of view 50°
Lens MountM12

Illuminator
IR RangeUp to 30 m

Video
Max. Resolution2688 × 1520
Video CompressionMain stream: H.264+/H.264 Sub stream: H.264/MJPEG
H.264 TypeMain Profile/High profile
Video Bit Rate32 Kbps to 16 Mbps

Smart Feature-Set
Exception DetectionMotion detection

Image SettingBrightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night SwitchSupport auto, scheduled
Main Stream Max. Frame Rate50Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720) 60Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 30fps @(1920 × 1080, 1280 × 720)
LainnyaMirror, BLC (area configurable), region of interest (support 1 fixed region)
Sub-stream Max. Frame Rate50Hz: 25fps @(640 × 360, 352 × 288) 60Hz: 30fps @(640 × 360, 352 × 240)

Network
Network StorageNAS (NFS, SMB/CIFS)
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Alarm TriggerVideo tampering, network disconnected, IP address conflicted

4G
StandardONVIF (PROFILE S, PROFILE G), ISAPI

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, PoE (802.3af)
Power Consumption and CurrentMax. 4 W/6 W (PoE)
DimensionsΦ 110 mm × 93.2 mm (4.33" × 3.67")
Weight570 g (1.3 lb.)
Interface ProtectionIP67

Specification

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s, support slow shutter

Day &Night

IR cut filter with auto switch

Wide Dynamic Range

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

DNR

3D DNR

Lens

2.8 , horizontal field of view 98°, 4 mm , horizontal field of view 75° 6 mm , horizontal field of view 50°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Video

Max. Resolution

2688 × 1520

Video Compression

Main stream: H.264+/H.264 Sub stream: H.264/MJPEG

H.264 Type

Main Profile/High profile

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-Set

Exception Detection

Motion detection


Image Setting

Brightness, saturation, contrast, sharpness are adjustable via web browser or client software

Day/Night Switch

Support auto, scheduled

Main Stream Max. Frame Rate

50Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720) 60Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 30fps @(1920 × 1080, 1280 × 720)

Lainnya

Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Sub-stream Max. Frame Rate

50Hz: 25fps @(640 × 360, 352 × 288) 60Hz: 30fps @(640 × 360, 352 × 240)

Network

Network Storage

NAS (NFS, SMB/CIFS)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Alarm Trigger

Video tampering, network disconnected, IP address conflicted

Standard

ONVIF (PROFILE S, PROFILE G), ISAPI

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE (802.3af)

Power Consumption and Current

Max. 4 W/6 W (PoE)

Dimensions

Φ 110 mm × 93.2 mm (4.33" × 3.67")

Weight

570 g (1.3 lb.)

Interface Protection

IP67
