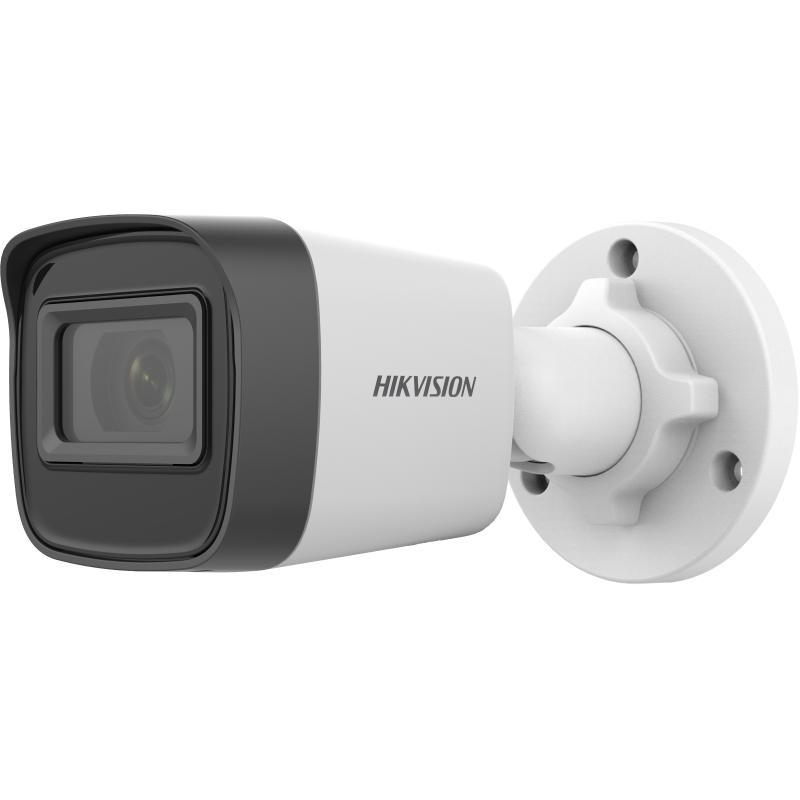

DS-2CD1021G0-I

2 MP Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Water and dust resistant (IP67)
Easy installation with Power over Ethernet (PoE) technology

View Less

Available models:

DS-2CD1021G0-I(2.8mm)

DS-2CD1021G0-I(4mm)

Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens MountM12
Iris TypeFixed
ApertureF2.2

DORI
DORI2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR

Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200
Web BrowserPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection, exception
LinkageNotify surveillance center

General
Power 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialPlastic
Dimension138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")
Package Dimension163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
WeightApprox. 175 g (0.4 lb.)
With Package WeightApprox. 250 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013

Specification

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.2

DORI

2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Supplement Light Type

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

ISAPI,SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Client

iVMS-4200

Web Browser

Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, exception

Linkage

Notify surveillance center

General

Power

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material

Plastic

Dimension

138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")

Package Dimension

163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")

Weight

Approx. 175 g (0.4 lb.)

With Package Weight

Approx. 250 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
