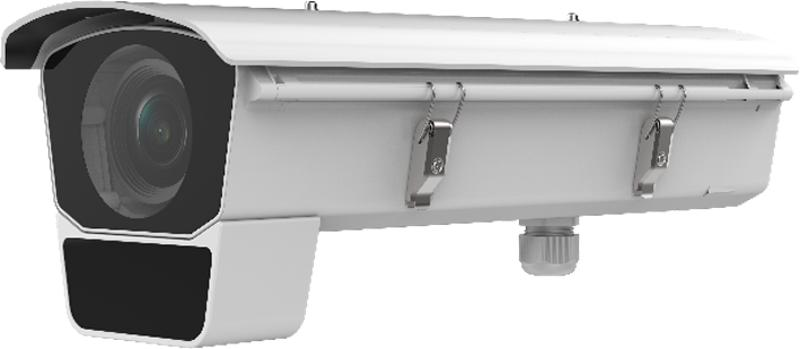

2MP DarkFighter Box With Housing Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to LightFighter technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor networks
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • Hikvision embedded open platform allows third party applications to be installed in Hikvision network cameras
  • 6 behavior analyses, 3 exception detection, and face detection
  • Water and dust resistant and vandal proof (IP66 and IK10).
Specification
  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1 s - 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range140dB
  • DNR3D DNR
  • Lens
  • Auto-IrisP-iris
  • Focussupport ABF (auto back focus)
  • FOV3.8 to 16 mm, horizontal FOV 100.7° to 27.3°, vertical FOV 56.2° to 15.4°, diagonal FOV 115.5° to 31.3°,11 to 40 mm, horizontal FOV 35.8° to 11.2°, vertical FOV 19.6° to 6.3°, diagonal FOV 41.7° to 12.8°,12 to 50 mm, horizontal FOV 32.9° to 8.6°, vertical FOV 18.0° to 4.8°, diagonal FOV 38.2° to 9.8°
  • Lens MountC/CS mount
  • Illuminator
  • IR Range3.8-16 mm: up to 80 m,11-40 mm: up to 120 m,12-50 mm: up to 120 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported
  • Video CompressionMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • SVCH.264 and H.265 encoding
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Region of Interest4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
  • Image
  • Image EnhancementBLC, HLC, defog, 3D DNR, EIS
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Target CroppingYes
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Network
  • Network StorageSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
  • Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface
  • Audio1-ch input (line in), 1-ch output, mono
  • Alarm2 inputs,2 outputs (alarm output supports up to 24 VDC, 1A or 110 VAC, 500 mA)
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • BNCCVBS analog output (4CIF resolution)
  • General
  • Firmware Version5.5.80
  • General FunctionOne-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • RESETYes
  • Startup and Operating Conditions-I: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing),-IH:-40 °C to 60 °C (-40 °F to 140 °F)
  • Power Supply24 VAC ± 20%, two-core terminal block
  • Power Consumption and Current24 VAC ± 20%, 1.5 A, max. 25 W
  • MaterialMetal
  • Dimensions465.4 × 160 × 169.2 mm (18.3″ × 4.3″ × 6.7″),With package: 683 × 223 × 265 mm (26.9″ × 8.8″ × 10.4″)
  • Weight3600 g (7.9 lb),With package: 6000 g (13.2 lb)
  • Impact ProtectionIK10
  • Interface ProtectionIP66
  • Compression Standard
  • H.264+Main stream support
  • H.265+Main stream support
  • Smart Feature-set
  • Face DetectionYes
  • Exception DetectionScene change detection, audio exception detection, defocus detection
  • StatisticsCounting
