EOL

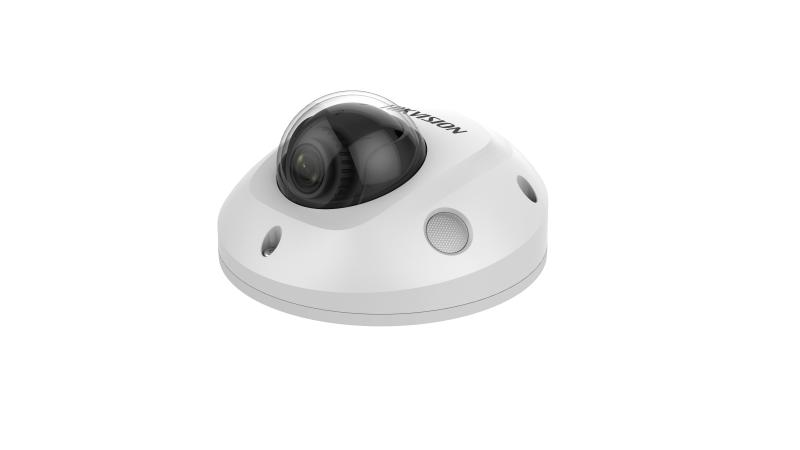

Mobile Mini Dome network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology

View Less
View more
Sales Inquiry

Available models:

DS-2XM6726FWD-IS(2.0mm)
DS-2XM6726FWD-IM(2.8mm)
DS-2XM6726FWD-IM(4mm)
DS-2XM6726FWD-I(2.0mm)
DS-2XM6726FWD-I(2.8mm)
DS-2XM6726FWD-I(4mm)
DS-2XM6726FWD-I(6mm)
DS-2XM6726FWD-IS(2.8mm)
DS-2XM6726FWD-IS(4mm)
DS-2XM6726FWD-IS(6mm)
DS-2XM6726FWD-IS(8mm)
DS-2XM6726FWD-IM(2.0mm)
DS-2XM6726FWD-IM(8mm)
DS-2XM6726FWD-IM/ND(2.0mm)
DS-2XM6726FWD-IM/ND(2.8mm)
DS-2XM6726FWD-IM/ND(4mm)
DS-2XM6726FWD-IM/ND(6mm)
DS-2XM6726FWD-I(S)(M)(/ND)
EOL

Specification

  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Digital Noise Reduction3D DNR
  • WDR120 dB
  • Day & NightIR Cut Filter
  • Lens
  • Auto-IrisNo
  • ApertureF1.6
  • FOV2.0 mm @ F1.6, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 153°,2.8 mm @ F1.6, horizontal FOV 110°, vertical FOV 60°, diagonal FOV 130°,4 mm @ F1.6, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°,6 mm @ F1.6, horizontal FOV 56°, vertical FOV 31°, diagonal FOV 65°,8 mm @ F1.6, horizontal FOV 40°, vertical FOV 22°, diagonal FOV 46°
  • Lens MountM12
  • Focal length2.0/2.8/4/6/8 mm fixed lens
  • Video
  • Max. Resolution1920 × 1080
  • Main StreamH.265/H.264
  • Sub StreamH.265/H.264/MJPEG
  • Third StreamH.265/H.264
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • SVCH.264 and H.265 encoding
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of Interest1 fixed region for main stream and sub stream
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingNo
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayNo
  • Network
  • Network StorageMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port
  • Reset ButtonYes
  • Audio (-S)1 input (line in), 1 built-in mic, 1 output (line out), mono sound
  • Alarm (-S)1 input, 1 output (up to 12VDC, 30mA)
  • On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Compression Standard
  • H.264+Main stream support.
  • H.265+Main stream support.
  • Smart Feature-set
  • Face DetectionYes
  • Exception DetectionNo
  • General
  • Firmware VersionV5.5.4
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Power Supply-I, -IS: 12 VDC ± 25%, 5.5 mm coaxial power plug, ,-IM: 12 VDC ± 25%, Molex plug for DC input,PoE (802.3af, class 3)
  • Power Consumption and Current12 V DC ± 25%, 0.5 A, max. 6 W,PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
  • MaterialMetal
  • DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WeightCamera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
  • Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Protection LevelIP67, IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8″ Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Angle Adjustment
Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Digital Noise Reduction
3D DNR
WDR
120 dB
Day & Night
IR Cut Filter
Lens
Auto-Iris
No
Aperture
F1.6
FOV
2.0 mm @ F1.6, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 153°,2.8 mm @ F1.6, horizontal FOV 110°, vertical FOV 60°, diagonal FOV 130°,4 mm @ F1.6, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°,6 mm @ F1.6, horizontal FOV 56°, vertical FOV 31°, diagonal FOV 65°,8 mm @ F1.6, horizontal FOV 40°, vertical FOV 22°, diagonal FOV 46°
Lens Mount
M12
Focal length
2.0/2.8/4/6/8 mm fixed lens
Video
Max. Resolution
1920 × 1080
Main Stream
H.265/H.264
Sub Stream
H.265/H.264/MJPEG
Third Stream
H.265/H.264
Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 16 Mbps
SVC
H.264 and H.265 encoding
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHz/48kHz
Smart Feature-Set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region of Interest
1 fixed region for main stream and sub stream
Image Enhancement
BLC, 3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping
No
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay
No
Network
Network Storage
Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, iVMS-4500, iVMS-5200
Web Browser
IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm Trigger
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
Communication Interface
1 RJ45 10M/100M Ethernet port
Reset Button
Yes
Audio (-S)
1 input (line in), 1 built-in mic, 1 output (line out), mono sound
Alarm (-S)
1 input, 1 output (up to 12VDC, 30mA)
On-board storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
H.264+
Main stream support.
H.265+
Main stream support.
Smart Feature-set
Face Detection
Yes
Exception Detection
No
General
Firmware Version
V5.5.4
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Power Supply
-I, -IS: 12 VDC ± 25%, 5.5 mm coaxial power plug, ,-IM: 12 VDC ± 25%, Molex plug for DC input,PoE (802.3af, class 3)
Power Consumption and Current
12 V DC ± 25%, 0.5 A, max. 6 W,PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
Material
Metal
Dimensions
Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
Weight
Camera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Protection Level
IP67, IK10
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Digital Noise Reduction3D DNR
  • WDR120 dB
  • Day & NightIR Cut Filter
Lens
  • Auto-IrisNo
  • ApertureF1.6
  • FOV2.0 mm @ F1.6, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 153°,2.8 mm @ F1.6, horizontal FOV 110°, vertical FOV 60°, diagonal FOV 130°,4 mm @ F1.6, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°,6 mm @ F1.6, horizontal FOV 56°, vertical FOV 31°, diagonal FOV 65°,8 mm @ F1.6, horizontal FOV 40°, vertical FOV 22°, diagonal FOV 46°
  • Lens MountM12
  • Focal length2.0/2.8/4/6/8 mm fixed lens
Video
  • Max. Resolution1920 × 1080
  • Main StreamH.265/H.264
  • Sub StreamH.265/H.264/MJPEG
  • Third StreamH.265/H.264
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • SVCH.264 and H.265 encoding
Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of Interest1 fixed region for main stream and sub stream
  • Image EnhancementBLC, 3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingNo
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayNo
Network
  • Network StorageMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port
  • Reset ButtonYes
  • Audio (-S)1 input (line in), 1 built-in mic, 1 output (line out), mono sound
  • Alarm (-S)1 input, 1 output (up to 12VDC, 30mA)
  • On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
  • H.264+Main stream support.
  • H.265+Main stream support.
Smart Feature-set
  • Face DetectionYes
  • Exception DetectionNo
General
  • Firmware VersionV5.5.4
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Power Supply-I, -IS: 12 VDC ± 25%, 5.5 mm coaxial power plug, ,-IM: 12 VDC ± 25%, Molex plug for DC input,PoE (802.3af, class 3)
  • Power Consumption and Current12 V DC ± 25%, 0.5 A, max. 6 W,PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
  • MaterialMetal
  • DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WeightCamera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
  • Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Protection LevelIP67, IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.2_190701
【Release Note】Mobile IPC V5.6.2_190701
Applied to:
DS-2XM6726FWD-IS(2.0mm)
DS-2XM6726FWD-IM(2.8mm)
DS-2XM6726FWD-I(2.0mm)
DS-2XM6726FWD-I(2.8mm)
DS-2XM6726FWD-I(4mm)
DS-2XM6726FWD-IS(2.8mm)
DS-2XM6726FWD-IM(2.0mm)
DS-2XM6726FWD-IM/ND(2.0mm)
DS-2XM6726FWD-IM/ND(2.8mm)
