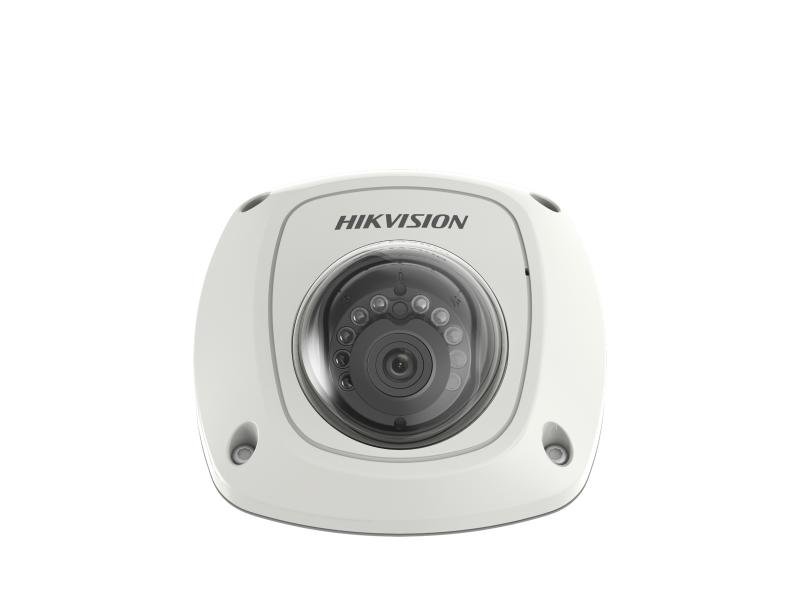

Mobile Indoor Mini Dome Network Camera

High quality imaging with 1.3 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP66) and vandal proof (IK08)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3D DNR technology delivers clean and sharp images
Hik-Connect cloud service and APP for remote management and views of devices

View Less

Available models:

DS-2XM6112G0-ID(4mm)

DS-2XM6112G0-IM/ND(4mm)

DS-2XM6112G0-I/ND(4mm)

DS-2XM6112G0-ID(2.8mm)

DS-2XM6112G0-IM/ND(2.8mm)

DS-2XM6112G0-I/ND(2.8mm)

DS-2XM6112G0-I(D)(M)(/ND)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1536 × 864
Min. Illumination0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
Focal Length & FOV2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Lens MountM12
FocusNo
Aperture2.8 mm: F2.0 4 mm: F2.0 6 mm: F1.6

Illuminator
Supplement Light RangeUp to 10 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50Hz: 50 fps (1536 × 864, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60 fps (1536 × 864, 1280 × 720, 704 × 480, 640 × 480)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50Hz: 25fps (1536 × 864, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1536 × 864, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Fourth StreamNo
Fifth StreamNo
Custom StreamNo
Video Compression Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264
Video Bit Rate32 Kbps to 16Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for each stream, and dynamic face tracking
Target CroppingYes

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
Smooth StreamingYes
User/HostUp to 32 users 3 levels: Administrator, Operator and User
Network StoragemicroSD/SDHC/SDXC card (128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR> 50dB
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Privacy Mask4 regions of privacy mask
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Video Output1 Vp-p Composite Output (75Ω/CVBS)
Ethernet InterfaceWithout -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio1 built-in microphone
Alarm No
RS-485No
Reset KeyYes
Power OutputNo

Event
Smart EventLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email

General
Power-I/ND: PoE (802.3af, class 3, 36 V to 57 V), 0.2 A to 0.1 A, RJ45 interface, PoE power supply -ID: 24 VDC, Ø5.5 mm coaxial power plug, DC power supply -IDM: 24 VDC, two-core Molex connector, DC power supply -IM/ND: PoE (802.3af, class 3, 36 V to 57 V), 0.2 A to 0.1 A, four-core M12 aviation plug, PoE power supply
Dimension99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Package Dimension252 × 160 × 95mm (9.9″ × 6.3″ × 3.7″)
Weight430 g (0.9 lb.)
With Package Weight780 g (1.7 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Embedded Open PlatformNo
General FunctionAnti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK08(IEC 62262:2002)
Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1536 × 864

Min. Illumination

0.01 Lux @(F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focal Length & FOV

2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°

Lens Mount

M12

Focus

Aperture

2.8 mm: F2.0 4 mm: F2.0 6 mm: F1.6

Illuminator

Supplement Light Range

Up to 10 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50Hz: 50 fps (1536 × 864, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60 fps (1536 × 864, 1280 × 720, 704 × 480, 640 × 480)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

Third Stream

50Hz: 25fps (1536 × 864, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1536 × 864, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

Fourth Stream

Fifth Stream

Custom Stream

Video Compression

Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264

Video Bit Rate

32 Kbps to 16Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 support

Region of Interest (ROI)

4 fixed regions for each stream, and dynamic face tracking

Target Cropping

Yes

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Smooth Streaming

Yes

User/Host

Up to 32 users 3 levels: Administrator, Operator and User

Network Storage

microSD/SDHC/SDXC card (128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51


Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

> 50dB

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Privacy Mask

4 regions of privacy mask

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Video Output

1 Vp-p Composite Output (75Ω/CVBS)

Ethernet Interface

Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Audio

1 built-in microphone

Alarm

RS-485

Reset Key

Yes

Power Output

Event

Smart Event

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email

General

Power

-I/ND: PoE (802.3af, class 3, 36 V to 57 V), 0.2 A to 0.1 A, RJ45 interface, PoE power supply -ID: 24 VDC, Ø5.5 mm coaxial power plug, DC power supply -IDM: 24 VDC, two-core Molex connector, DC power supply -IM/ND: PoE (802.3af, class 3, 36 V to 57 V), 0.2 A to 0.1 A, four-core M12 aviation plug, PoE power supply

Dimension

99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)

Package Dimension

252 × 160 × 95mm (9.9″ × 6.3″ × 3.7″)

Weight

430 g (0.9 lb.)

With Package Weight

780 g (1.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Embedded Open Platform

General Function

Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP66 (IEC 60529-2013), IK08(IEC 62262:2002)

Automotive and Railway

EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
