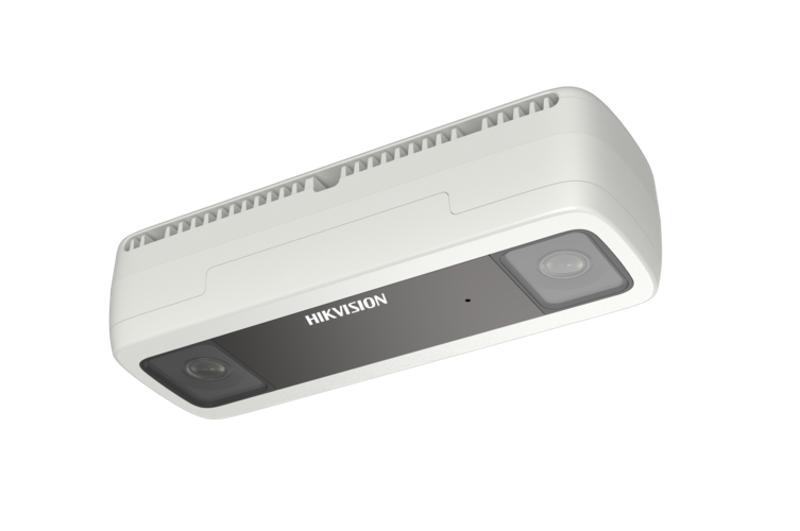

Dual-Lens People Counting Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 105 dB WDR technology
  • -V model: Water and dust resistant (IP67)

View Less
View more

Available models:

DS-2CD6825G0/C-IV(2mm)
DS-2CD6825G0/C-IVS(2mm)

Specification

  • Camera
  • Image Sensor1/1.2.7ʺ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Day & NightIR cut filter
  • Lens
  • Lens TypeFixed focal lens, 2 mm
  • Focal Length & FOVHorizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
  • Lens MountM12
  • ApertureF2.25
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light RangeUp to 6 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 support
  • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, Ehome (5.0)
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Enhancement
