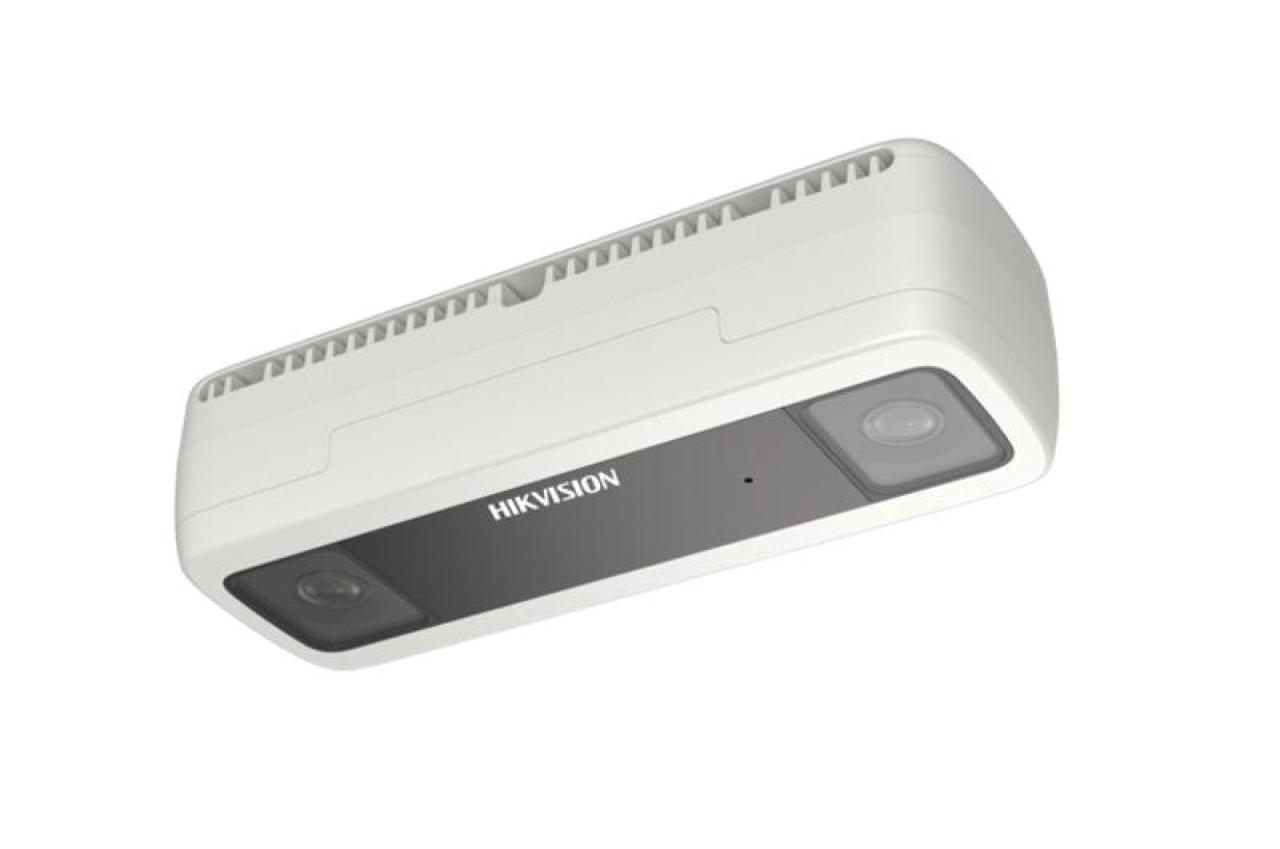

Dual-Lens People Counting Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 105 dB WDR technology
  • -V model: Water and dust resistant (IP67)

Specification
  • Camera
  • Image Sensor1/1.2.7ʺ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)
  • Shutter Time1/25 s to 1/100,000 s
  • Day & NightIR cut filter
  • Lens
  • Lens TypeFixed focal lens, 2 mm
  • Focal Length & FOVHorizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
  • Lens MountM12
  • ApertureF2.25
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light RangeUp to 6 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 support
  • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, Ehome (5.0)
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementHLC, BLC, 3D DNR, defog
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet port, -S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-Board Storage300 M eMMC storage for people counting data
  • Audio1 built-in microphone -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
  • Alarm 1 input, 1 output (max. 24 VDC, 1 A)
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • LinkageUpload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Deep Learning Function
  • People CountingCounts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • General
  • Power12 VDC ± 20%, 0.66 A, max. 8 W, reverse polarity protection, Ø5.5mm coaxial power plug PoE: 802.3 af, class 3, 36 to 57 V, 0.23 A to 0.14 A, max. 8.3 W
  • DimensionWith -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6" ) Without -V: 168 mm × 61 mm × 36 mm (6.6" × 2.4" × 1.4") With Package: 235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
  • Camera: Approx. 435 g (1 lb.) With package: 725 g (1.6 lb)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
  • Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ProtectionWith -V model: IP67 (IEC 60529-2013)
Specification
Firmware
Applied to:
DS-2CD6825G0/C-IV(2mm)
DS-2CD6825G0/C-IVS(2mm)
