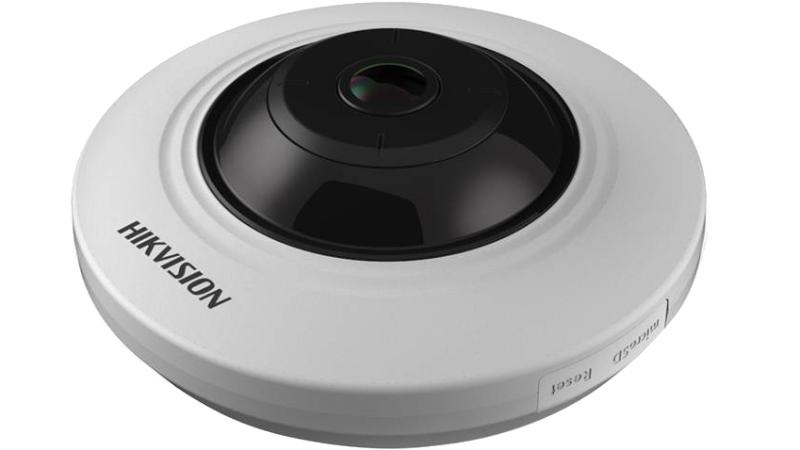

5MP Fixed Fisheye Network Camera

High quality imaging with 5 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging even against strong back light thanks to 120 dB true WDR technology.

View Less

Available models:

DS-2CD3955G0-IS(1.05mm)

DS-2CD3955G0-IS

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR cult filter with auto switch

Lens
Focal Length & FOV1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
ApertureF2.2
Lens MountM12

Video
Max. Resolution2560 × 1920
Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub-Stream50Hz: 25fps (704 × 576, 352× 288) 60Hz: 30fps (704 × 480, 352× 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringSupport
Audio Sampling Rate16kHZ
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
DNR3D DNR
Image EnhancementWDR/3D DNR/Backlight Compensation/Defog
Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
Display ModeSupport 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Interface
AudioSupport
Alarm 1 alarm input, 1 alarm output (12VDC 30mA, max.)
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function
DetectionMotion detection, dynamic analysis, intrusion detection, line crossing detection

General
Firmware VersionV5.4.51
Power Supply-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Camera WeightΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)

Camera

Image Sensor

1/2.5" Progressive Scan CMOS

Min. Illumination

Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Wide Dynamic Range

120 dB

Day & Night

IR cult filter with auto switch

Lens

Focal Length & FOV

1.05 mm, horizontal field of view: 180°, vertical field of view: 180°

Aperture

F2.2

Lens Mount

M12

Video

Max. Resolution

2560 × 1920

Main Stream

50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)

Sub-Stream

50Hz: 25fps (704 × 576, 352× 288) 60Hz: 30fps (704 × 480, 352× 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Support

H.265+

Support

Region of Interest (ROI)

Support 1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Support

Audio Sampling Rate

16kHZ

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6


Day/Night Switch

Auto/Schedule/Triggered by Alarm In (-S model supports)

DNR

3D DNR

Image Enhancement

WDR/3D DNR/Backlight Compensation/Defog

Image Settings

Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser

Display Mode

Support 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Interface

Audio

Support

Alarm

1 alarm input, 1 alarm output (12VDC 30mA, max.)

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function

Detection

Motion detection, dynamic analysis, intrusion detection, line crossing detection

General

Firmware Version

V5.4.51

Power Supply

-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W

Camera Weight

Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)

Camera

Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR cult filter with auto switch

Lens

Focal Length & FOV1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
ApertureF2.2
Lens MountM12

Video

Max. Resolution2560 × 1920
Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub-Stream50Hz: 25fps (704 × 576, 352× 288) 60Hz: 30fps (704 × 480, 352× 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

Audio

Environment Noise FilteringSupport
Audio Sampling Rate16kHZ
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6


Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
DNR3D DNR
Image EnhancementWDR/3D DNR/Backlight Compensation/Defog
Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
Display ModeSupport 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Interface

AudioSupport
Alarm 1 alarm input, 1 alarm output (12VDC 30mA, max.)
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function

DetectionMotion detection, dynamic analysis, intrusion detection, line crossing detection

General

Firmware VersionV5.4.51
Power Supply-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Camera WeightΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
